Keystone Boilers and Water Heaters

Page 23

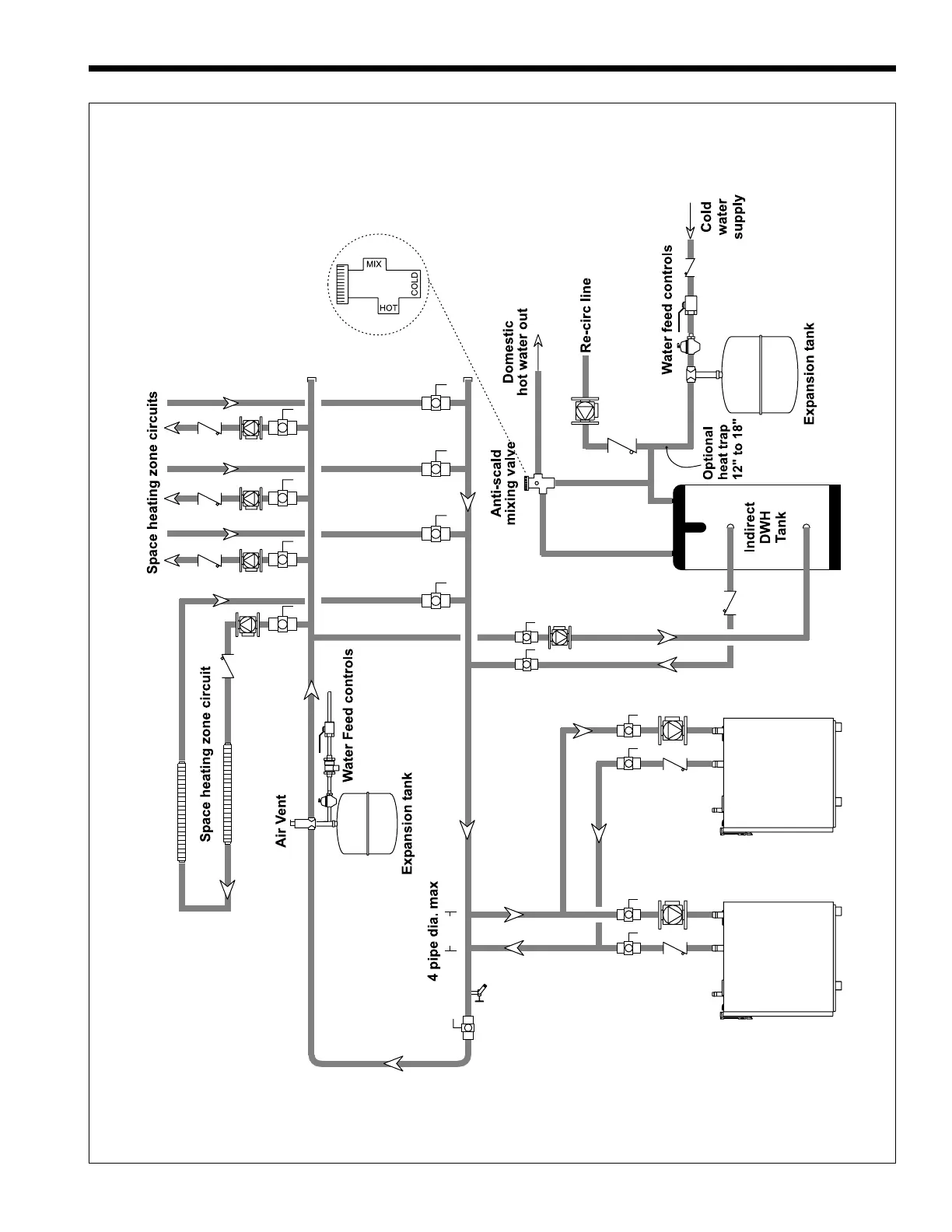

Figure 17. Hydronic Piping — Multiple Boilers with Indirect DWH Tank Piped from System Loop.
