KHE ACS SERIES – USER MANUAL www.KHE-AudioElectronics.com 13 / 23

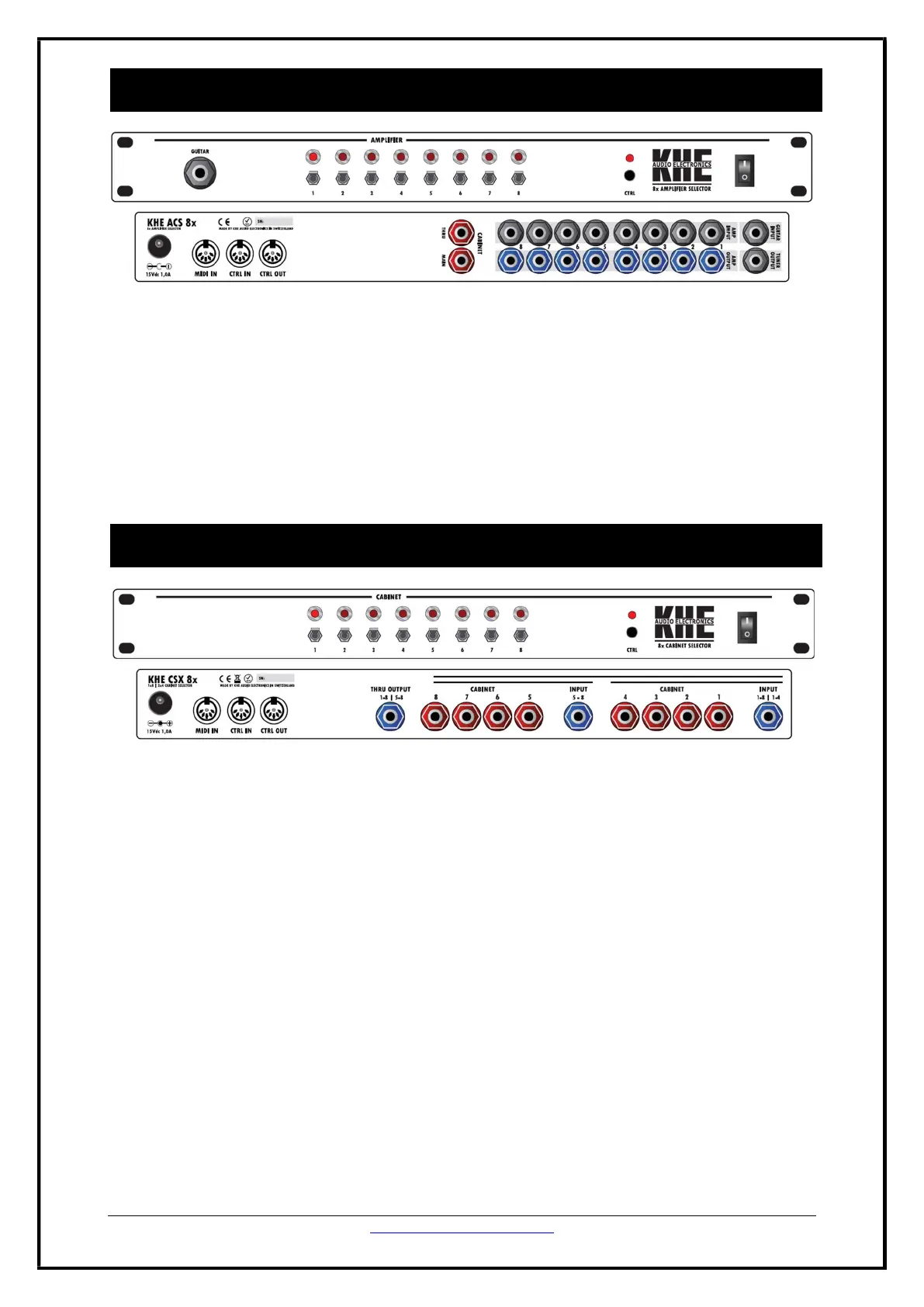

The KHE ASX8 is an amp switcher for 8 amplifiers and a single speaker cabinet or load boxe in compact 19” 1u
format. The KHE ASX 8 Amp Switcher can be used in standalone mode with a single cabinet, or in link mode to
add 8 additional amp channels to other switching systems. The ASX 8 operates in Standalone Mode as long as
no other units are linked. In case no load is connected to the ASX’s output, the operation will be blocked and no
amps can be activated (all LED’s blink red).
CONNECTIONS
Connect the speaker cabinet or load box to the CABINET OUTPUT jack. The THRU jack is wired parallel to the
CABINET OUTPUT jack and is used to link the ASX to other switchers in link mode.
The KHE CSX 8 is a load switcher for 8 speaker cabinets or load boxes and a single amplifier in compact 19” 1u
format. The KHE CSX 8 Cab Switcher can either be used in standalone mode with 1 single amplifier, or in link
mode to add 8 additional load channels to other switching systems. The CSX 8 operates in Standalone Mode as
long as no other units are linked.
CONNECTIONS
INPUT 1-8: In Standalone Mode, connect your amplifiers speaker output to this jack. In Link Mode,
connect the other switchers S-LINE output to this jack to interconnect the load lines with the
speaker singal.
INPUT 5-8: The blue jack INPUT 5 – 8 is not used at the moment. Do not connect anything to the INPUT
5-8 jack. The use of this jack will may be activated and enabled later this year by a firmware
update.
THRU OUTPUT: This jack is connected in parallel to the INPUT 1-8 jack and is used to interconnect the load
lines in link mode.
CSX STANDALONE MODE
When the CSX 8 is used in Standalone Mode:
a load MUST always be connected to CABINET 1 output. If no load is connected to the ASX, the
operation will be blocked and no output can be activated.
Make sure to power on the CSX before the connected amplifier.
ASX 8
CSX 8
