The KHE Amp Switchers features two guitar inputs, one on the
front panel and one on the rear panel. The front input has
higher priority than the rear input.
The KHE ACS guitar input works perfectly with reamping boxes,
stomboxes like overdrives, boosts and distortions and effect
pedals like delays or reverb.
The KHE Amp Switchers let you switch between mono guitar amplifiers. Instantly, by the single push of a
button. No need to stop or interrupt playing. The signal path of the ACS is completely transparent and
extremely low-noise. It does not color the sound of your amplifiers in any way.

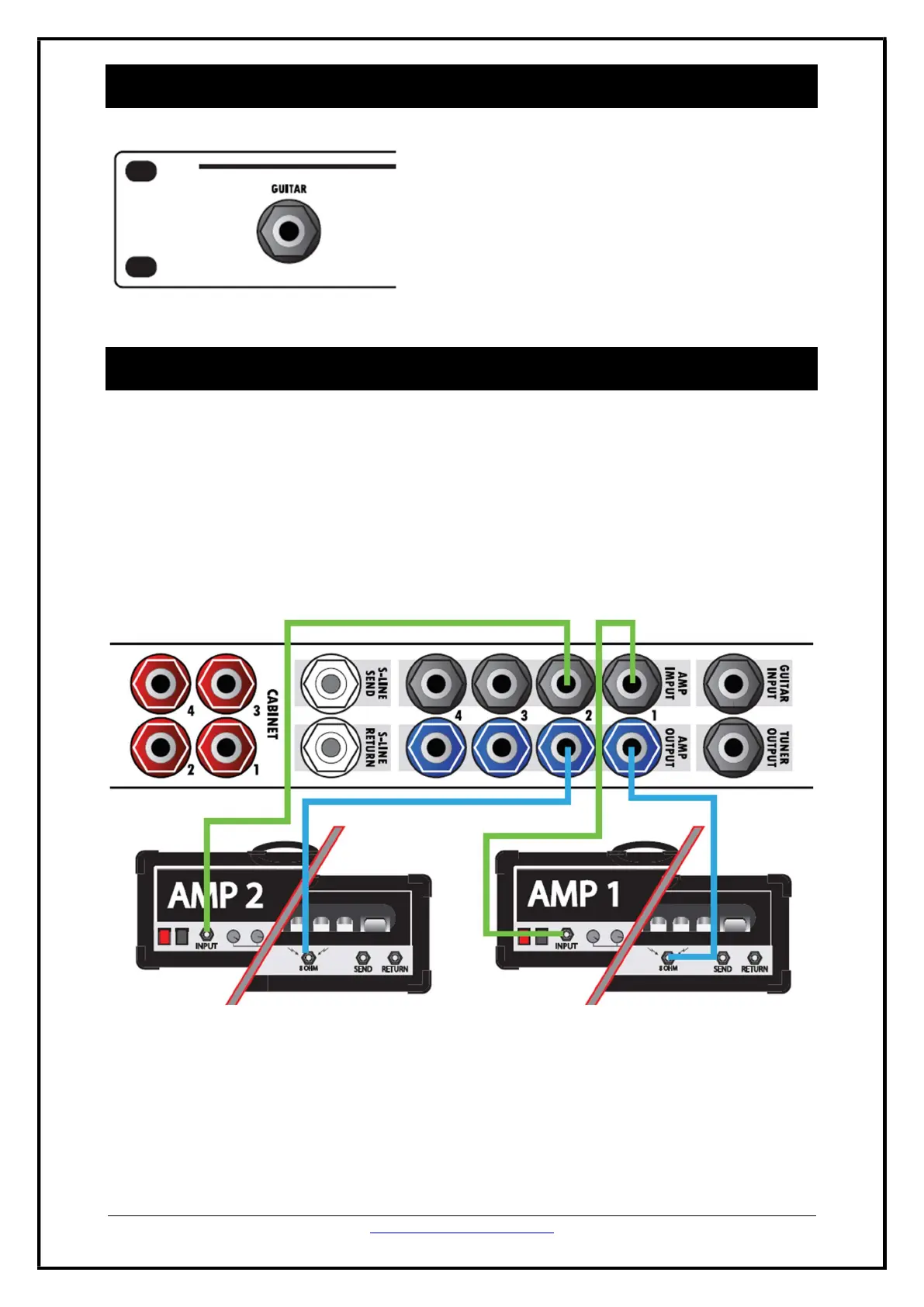

WIRING
Connect the guitar inputs of the amplifier to the black AMP INPUT jacks.
Use high-quality shielded unbalanced instrument cables only.
Connect the speaker outputs of the amplifier to the blue AMP OUTPUT jacks.
Use high-quality speaker cable only (we recommend 1,5mm2).
NOTES
The KHE ACS is compatible with any kind of mono amplifier, up to 150 watts per channel :
Tube, solid-state, (bridged) class-d, heads and xombos.
Amplifiers can not be activated if no cabinet ouput is activated.
All amplifiers are protected by an internal load resistor and the unused amps are muted at their input,
so no singals can reach the power amp.
A special mute circuit removes all switching noise like clicks and pops - switching between amps or
loads is more silent than most amps channel switching!
GUITAR INPUT
AMPLIFIER SWITCHING
