Kia Picanto - Front Turn Siþnal Lamp Bulb Replacement (Headlamp Type A)

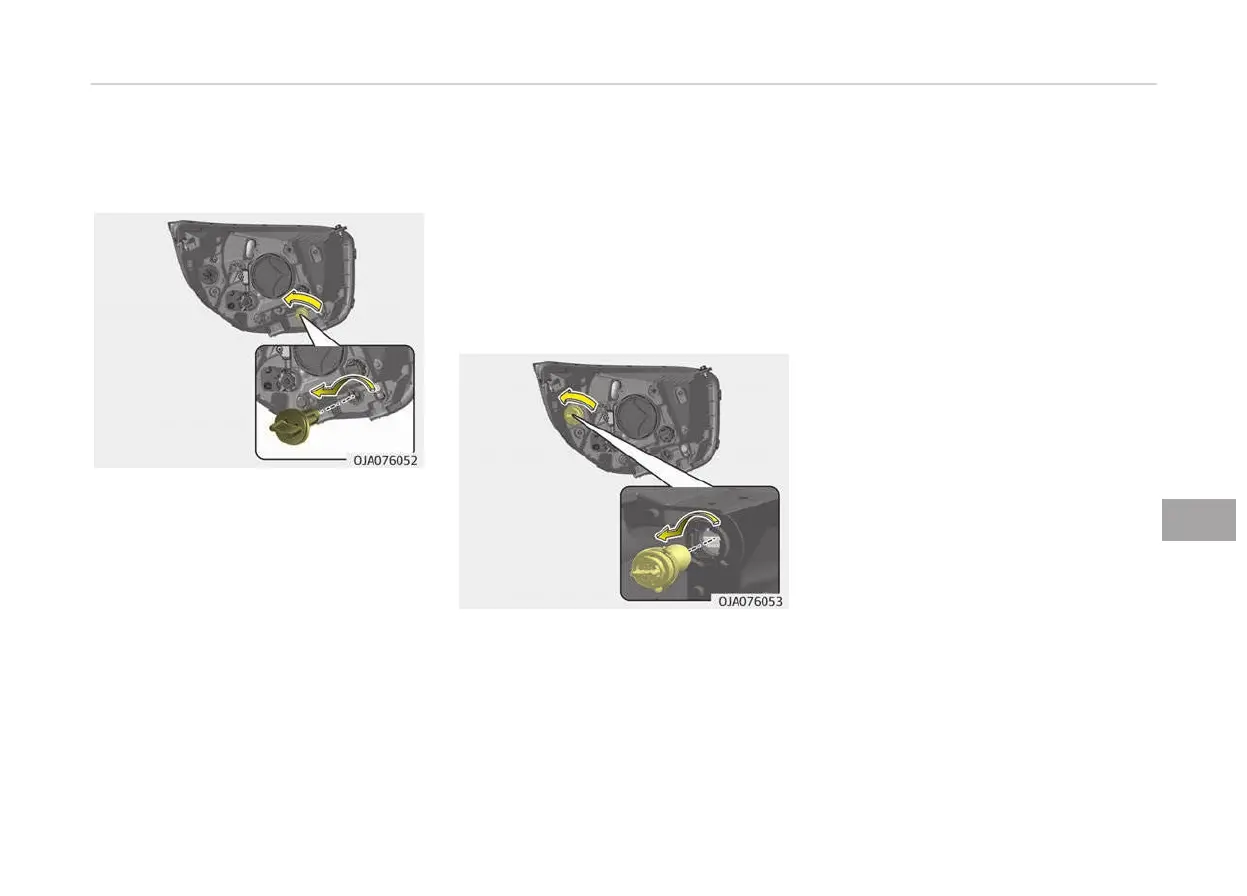

Position lamp bulb replacement
(Headlamp T
ype A)
1. æpen the hood.
2. Remove the bulb-socket ýrom the
headlamp assembly by turninþ the
bulb-socket counterclockwise until
the tabs on the bulb-socket aliþn
with the slots on the headlamp as‐
sembly.
3. Remove the bulb ýrom bulb-socket
by pullinþ it out.
4. Insert a new bulb by insertinþ it in‐
to the bulb-socket.
5. Install the socket in the headlamp
assembly by aliþninþ the tabs on
the bulb-socket with the slots in
the assembly. çush the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.
Front turn siþnal lamp bulb
replacement (Headlamp Type A)
1. æpen the hood.
2. Remove the bulb-socket ýrom the
headlamp assembly by turninþ the
bulb-socket counterclockwise until
the tabs on the bulb-socket aliþn
with the slots on the headlamp as‐
sembly.
3. Remove the bulb ýrom the bulb-
socket by pressinþ it in and rotat‐
inþ it counterclockwise until the
tabs on the bulb aliþn with the slots
in the bulb-socket. çull the bulb out
oý the bulb-socket.
4. Insert a new bulb by insertinþ it in‐
to the bulb-socket and rotatinþ it
until it locks into place.
5. Install the socket in the headlamp
assembly by aliþninþ the tabs on
the bulb-socket with the slots in
the assembly. çush the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.
8-89
8
Maintenance
