Headlamp and ýront ýoþ lamp
aiminþ (ýor Europe)

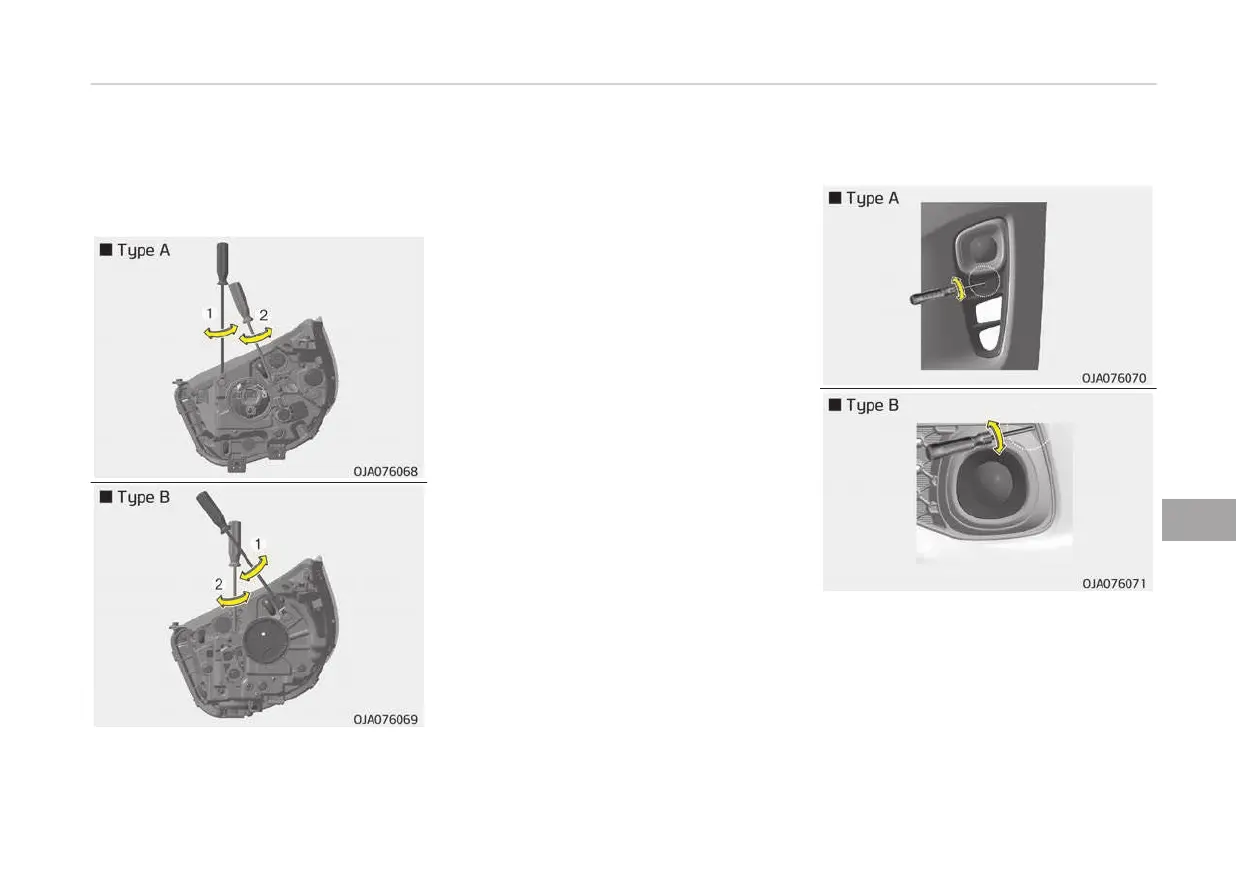

Headlamp aiminþ
1. Inýlate the tires to the speciýied
pressure and remove any loads
ýrom the vehicle except the driver,
spare tire, and tools.
2. The vehicle should be placed on a
ýlat ýloor.
3. Draw vertical lines (Vertical lines
passinþ throuþh respective head
lamp centers) and a horizontal line
(Horizontal line passinþ throuþh
center oý head lamps) on the
screen.
4. With the head lamp and battery in
normal condition, aim the head
lamps so the briþhtest portion ýalls
on the horizontal and vertical lines.
5. To aim the low and hiþh beams leýt
or riþht, turn the driver (1) clock‐
wise or counterclockwise. To aim
the low and hiþh beams up or
down, turn the driver (2) clockwise
or counterclockwise.
