INSTALLING THE LIGHT KIT

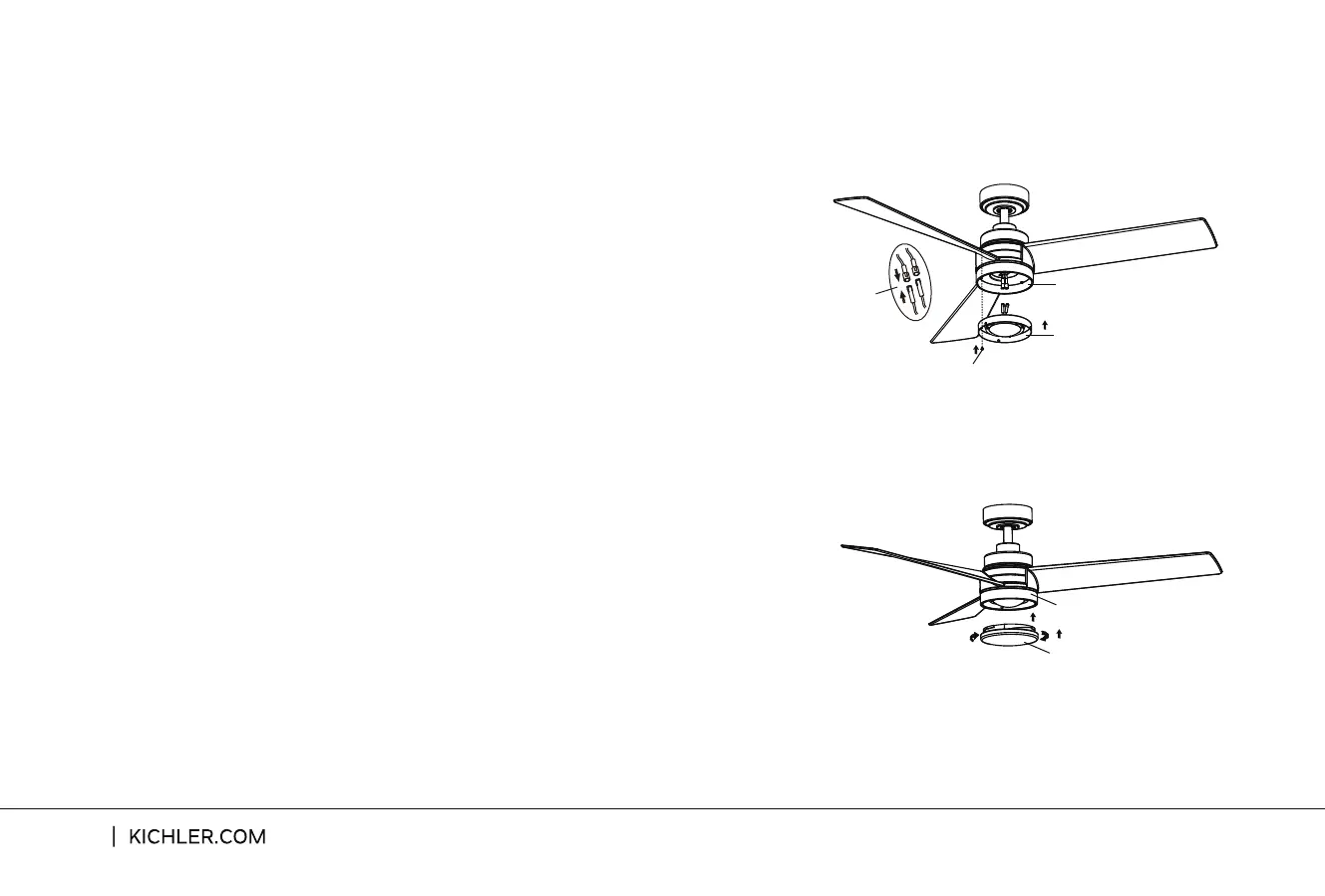

Step 2. Hold the light kit close to the switch housing and connect the WHITE
wires from the light kit and fan by pushing the connectors together. Follow
the same procedure with the BLACK wires. (Fig. 20)
Fig. 20
Fig. 21
Step 3. Tuck the connections neatly into the light kit. Place the two slot holes
on the light kit over the 2 screws previously loosened from the switch housing.
Rotate the light kit until it locks in place at the narrow end of the key holes.
Secure by tightening the 2 screws previously loosened and the one previously
removed.(Fig.20)
Step 4. Secure the shade to switch Housing by twisting in a clockwise direction.
Do not over-tighten. (Fig. 21)
Swith Housing
Shade
Swith Housing
Light Kit
Screw
Connetors
