Kicker KMA300.4 - Power Wiring; Fuse and Wire Gauge Recommendations

3

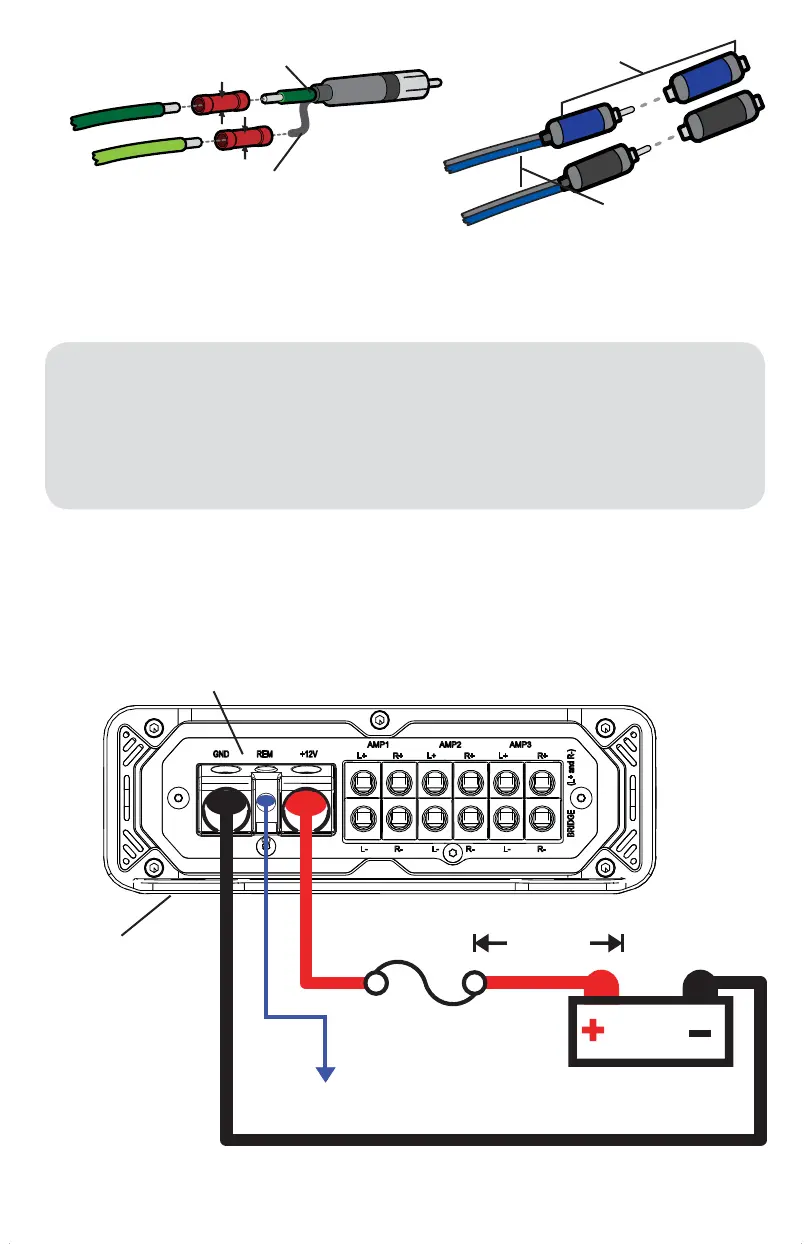

Install a fuse within 7” (18cm) of the battery and in-line with the power cable connected to your amplifi er.
source unit
high-level speaker
outputs
to amplifi er
shield
+
–
core conductor
KICKER KISL (optional)
from source unit high-
level speaker outputs
OR
to amplifi er
Model External Fuse
(sold separately)
Power/Ground Wire KICKER Wiring Kit
KMA150.2 1 x 40 Ampere 8 Gauge PK8, CK8
KMA300.4 1 x 60 Ampere 4 Gauge PK4, CK4
KMA450.6 1 x 80 Ampere 4 Gauge PK4, CK4
12V
battery
external fuse
remote turn-on (see page 6)
POWER WIRING
ABYC-compliant power terminals
Amplifi er uses 304-stainless steel
screws and conformal coated PCB
for increased weather resistance
aluminum bottom
plate
≤7”
(18cm)
