Kicker KX2500.1 - Subwoofer Wiring Configurations

9
KX2500.1 Amplifier
Installation

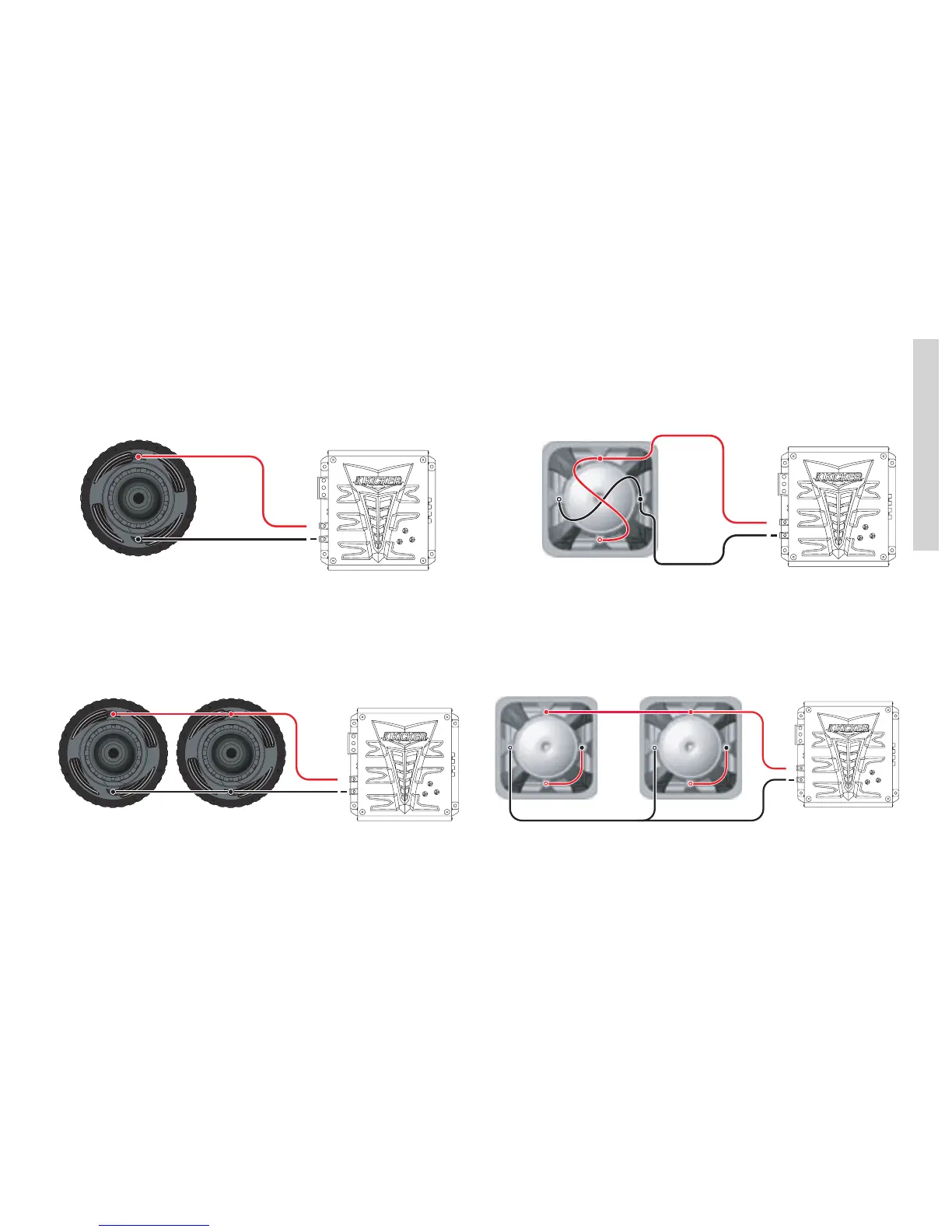

ONE SUBWOOFER
For maximum power into a single subwoofer you will need a 2Ω Single Voice Coil (SVC) subwoofer OR a 4Ω Dual Voice Coil
(DVC) subwoofer.
Coil +
Coil -
+
Coil 2 +
Coil 1 +
Coil 1 -
Coil 2 -
+
Single 2
Ω
SVC
Single 4
Ω
DVC - Parallel Wired
TWO SUBWOOFERS
For maximum power into a pair of subwoofers you will need two 4Ω Single Voice Coil (SVC) subwoofers OR two 2Ω Dual Voice
Coil (DVC) subwoofers.
Coil +
Coil -
Coil +
Coil -
+
Coil 2 +
Coil 1 +
Coil 1 - Coil 2 -
Coil 2 +
Coil 1 +
Coil 1 - Coil 2 -
+
Two 4
Ω
SVC - Parallel Wired
Two 2
Ω
DVC - Series/Parallel Wired
