lfKICKER®.
MX.
4SeriesMarineAmplifier
Owner'sManual
FourChanneIMode/:
MX350.4
Congratulations on your
KICKER purchase
Please record your purchase
information and keep your sales
receipt for validation
of
warranty.
Authorized Kicker Dealer:
Purchase Date:
Amplifier Model Number:
Amplifier Serial Number:
MX350.4
Installation . . . as easy as
1,
2, 3
1.
Mounting Choose a structurally sound location
to
mount your Kicker amplifier. The controls on the
top
of
the amplifier need to be accessible for adjustment. Make sure there are no items behind the area
where the screws will be driven. Choose a location that allows at least 4"
(1
Oem)
of open ventilation for
the amplifier.
Mount
the amplifier
in
a location free from direct contact with water.
Drill
four holes using a
7/64" (3mm) bit and use the supplied #8 screws to mount the amplifier.
3. Configuration The following diagrams show the most common configurations for your Kicker MX
series amplifier.
TwoChannelOperation (Stereo) These MX amplifiers are capable
of
operating into a minimum
impedance
of
2 ohms per channel
in
stereo operation. See Figure
2.
BridgedOperation
(Mono)
MXA
series amplifiers
are
capable
of
operating into a minimum
impedance
of
4 ohms when
in
bridged operation. See Figure
3.
StereoBridgedOperation (Simultaneously) The
MXA
series amplifiers are capable of operating into
a minimum impedance
of
4 ohms bridged and 2 ohms per channel
in
stereo operation. See Figure 4.

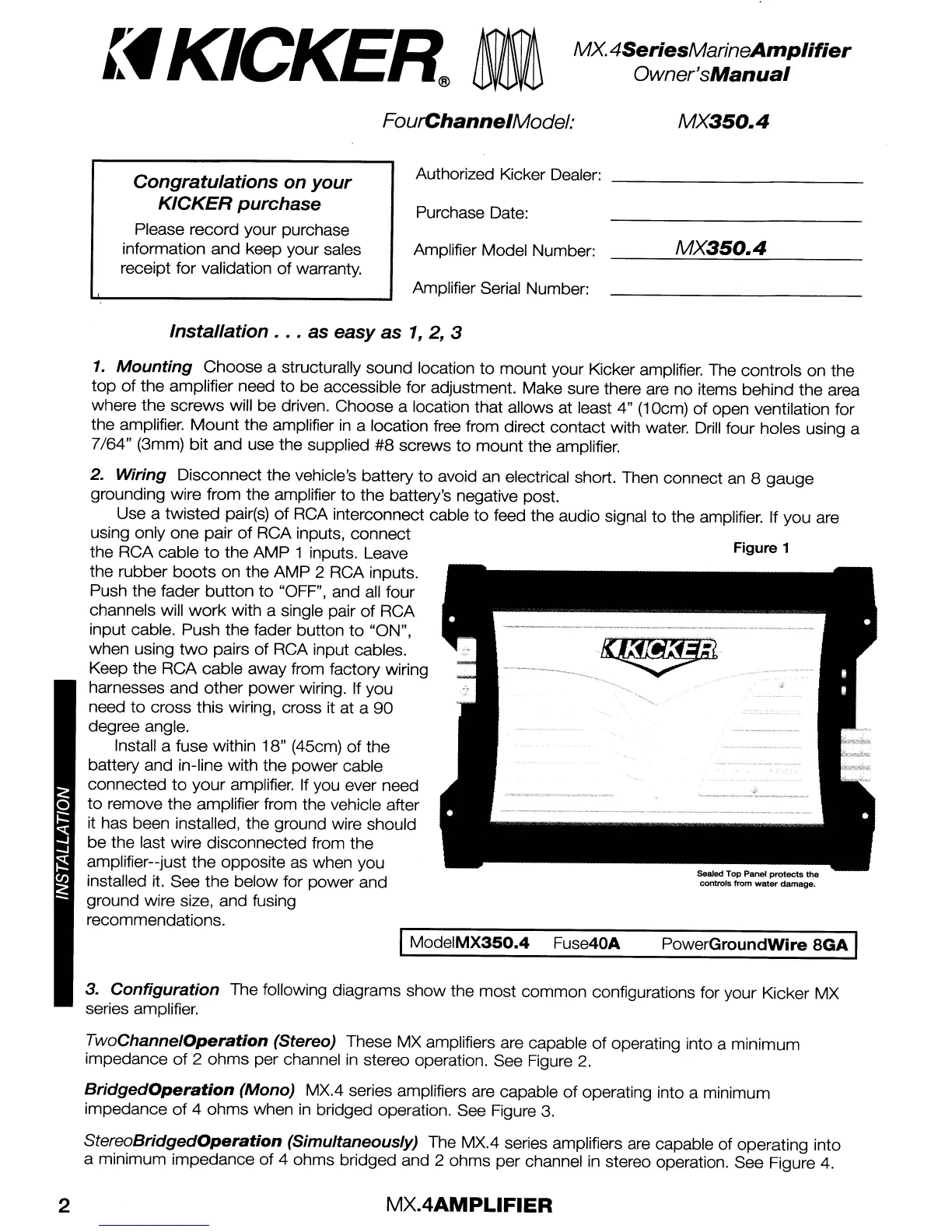

Figure 1
Sealed
Top
Panel
protects
the
controls from
water
damage.
PowerGroundWire
8GA
IIMode1MX350.4 Fuse40A
2. Wiring Disconnect the vehicle's battery
to
avoid
an
electrical short. Then connect
an
8 gauge
grounding wire from the amplifier to the battery's negative post.
Use a twisted pair(s)
of
RCA interconnect cable
to
feed the audio signal to the amplifier. If you are
using only one pair
of
RCA inputs, connect
the RCA cable
to
the AMP 1 inputs. Leave
the rubber
boots
on the AMP 2 RCA inputs.
Push the fader button to "OFF", and all four
channels will
work
with a single pair
of
RCA
input cable. Push the fader button to "ON",
when using
two
pairs
of
RCA input cables.
Keep the RCA cable away from factory wiring
harnesses and other power wiring. If you
need
to
cross this wiring, cross it at a
90
degree angle.
Install a fuse within 18" (45cm)
of
the
battery and in-line with the power cable
connected
to
your amplifier. If you ever need
•
to
remove the amplifier from the vehicle after
it
has been installed, the ground wire should
be the last wire disconnected from the
amplifier--just the opposite as when you
installed it. See the below for power and
ground wire size, and fusing
recommendations.
2
MX.4AMPLIFIER
