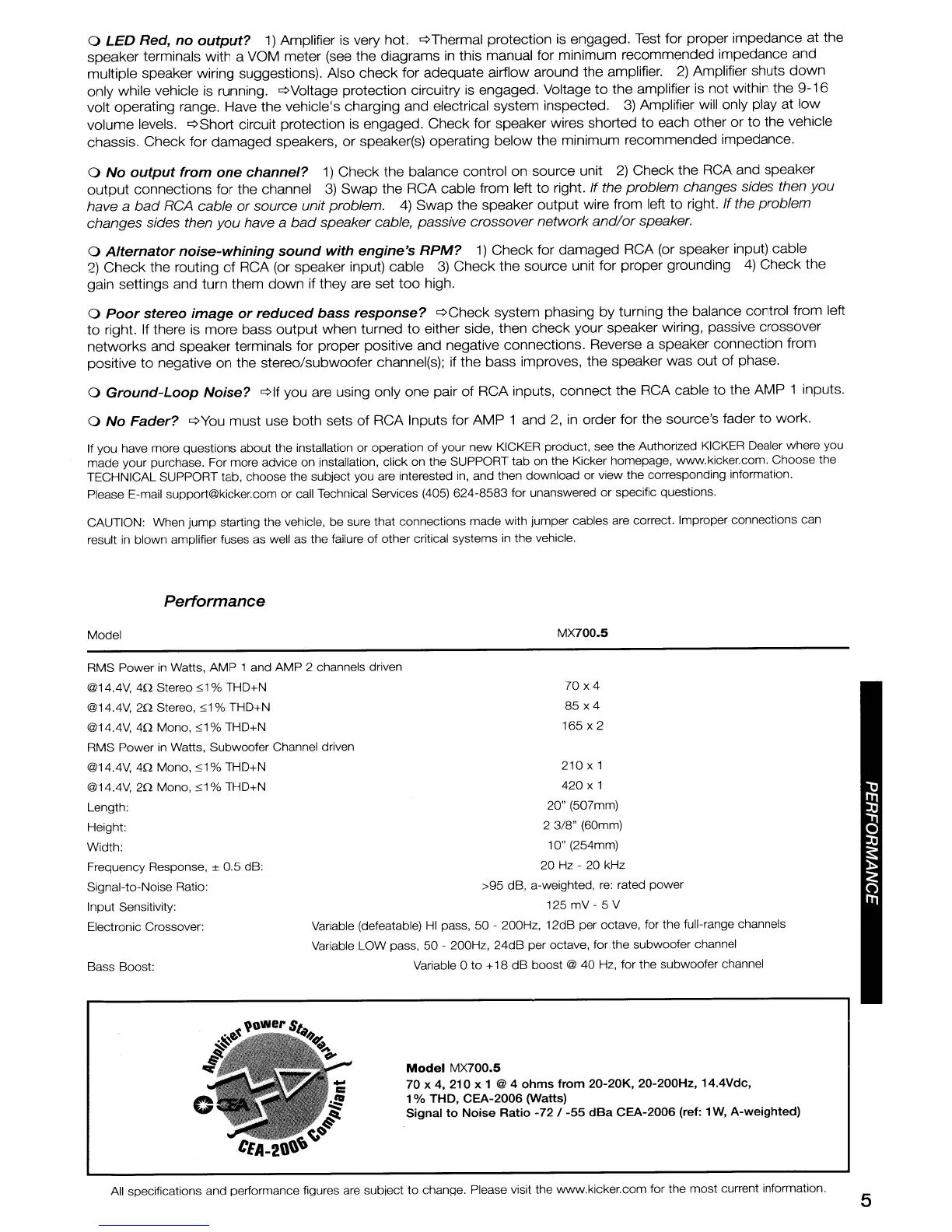

o
LED
Red,
no
output?
1) Amplifier is very hot.
¢Thermal
protection is engaged. Test for proper impedance at the
speaker terminals with a VOM meter
(see
the diagrams
in
this manual for minimum recommended impedance and
multiple speaker wiring suggestions). Also check for adequate airflow around the amplifier.
2)
Amplifier shuts
down
only while vehicle
is
running.
¢Voltage
protection circuitry
is
engaged. Voltage
to
the amplifier
is
not within the
9-16
volt operating range. Have the vehicle's charging and electrical system inspected.
3)
Amplifier will only play at low
volume levels.
¢Short
circuit protection
is
engaged. Check for speaker wires shorted to each other
or
to the vehicle
chassis. Check for damaged speakers, or speaker(s) operating below the minimum recommended impedance.
o
No
output
from
one
channel?
1)
Check the balance control on source unit
2)
Check the RCA and speaker
output connections for the channel
3)
Swap the RCA cable from left
to
right.
If
the problem changes sides then you
have a
bad
RCA cable
or
source unit problem.
4)
Swap the speaker output wire from left to right. If the problem
changes sides then
you
have a
bad
speaker cable, passive crossover network
and/or
speaker.
o
Alternator
noise-whining
sound
with
engine's
RPM?
1)
Check for damaged RCA (or speaker input) cable
2)
Check
the routing
of
RCA (or speaker input) cable
3)
Check the source unit for proper grounding
4)
Check the
gain settings and turn them
down
if they are set
too
high.
o
Poor
stereo
or
reduced
bass
response?
¢Check
system phasing by turning the balance control from left
to
right.
If
there is more bass output when turned to either side, then check your speaker wiring, passive crossover
networks and speaker terminals for proper positive and negative connections. Reverse a speaker connection from
positive to negative on the stereo/subwoofer channel(s);
if
the bass improves, the speaker was out of phase.
o
Ground-Loop
Noise?
¢If
you are using only one pair
of
RCA inputs, connect the RCA cable to the AMP 1 inputs.
o
No
Fader?
¢You
must use both sets
of
RCA Inputs for AMP 1 and
2,
in
order for the source's fader
to
work.
If you have more questions about the installation
or
operation
of
your new KICKER product, see the Authorized KICKER Dealer where you
made
your purchase. For more advice on installation, click on the SUPPORT tab on the Kicker homepage, www.kicker.com. Choose the
TECHNICAL SUPPORT tab, choose the subject you are interested
in,
and then download or view the corresponding information.
Please E-mail support@kicker.com or call Technical Services (405)
624-8583
for unanswered
or
specific questions.
CAUTION: When
jump
starting the vehicle, be sure that connections
made
with jumper cables are correct. Improper connections can
result
in
blown amplifier fuses as well as the failure
of
other critical systems
in
the vehicle.
Performance
Variable (defeatable)
HI
pass, 50 - 200Hz,
12dB
per octave, for the full-range channels
Variable LOW pass,
50
- 200Hz,
24dB
per octave, for the subwoofer channel
Variable 0
to
+18
dB
boost @ 40 Hz, for the subwoofer channel
Model
RMS Power
in
Watts,
AMP
1 and
AMP
2 channels driven
@14.4V,
40
Stereo
$1
% THD+N
@14.4V,
20
Stereo,
$1
% THD+N
@14.4V,
40
Mono,
$1
% THD+N
RMS Power
in
Watts, Subwoofer Channel driven
@14.4V,
40
Mono,
$1%
THD+N
@14.4V,
20
Mono,
$1%
THD+N
Length:
Height:
Width:
Frequency Response, ±
0.5
dB:
Signal-to-Noise Ratio:
Input Sensitivity:
Electronic Crossover:
Bass Boost:
MX700.5
70
x 4
85
x 4
165 x 2
210
x 1
420
x 1
20" (507mm)
2
3/8"
(60mm)
10" (254mm)
20 Hz - 20 kHz
>95 dB, a-weighted. re: rated
power
125mV-5V
Model
MX700.5
70
x 4,
210
x 1 @ 4
ohms
from
20-20K,
20-200Hz,
14.4Vdc,
1% THD,
CEA-2006
(Watts)
Signal
to
Noise
Ratio
-72 /
-55
dBa
CEA-2006
(ref: 1W,
A-weighted)
