The following shows examples of the minimum enclosure sizes for each of the Solo-Baric
L7s. Panel dimensions assume 3/4" wood thickness.

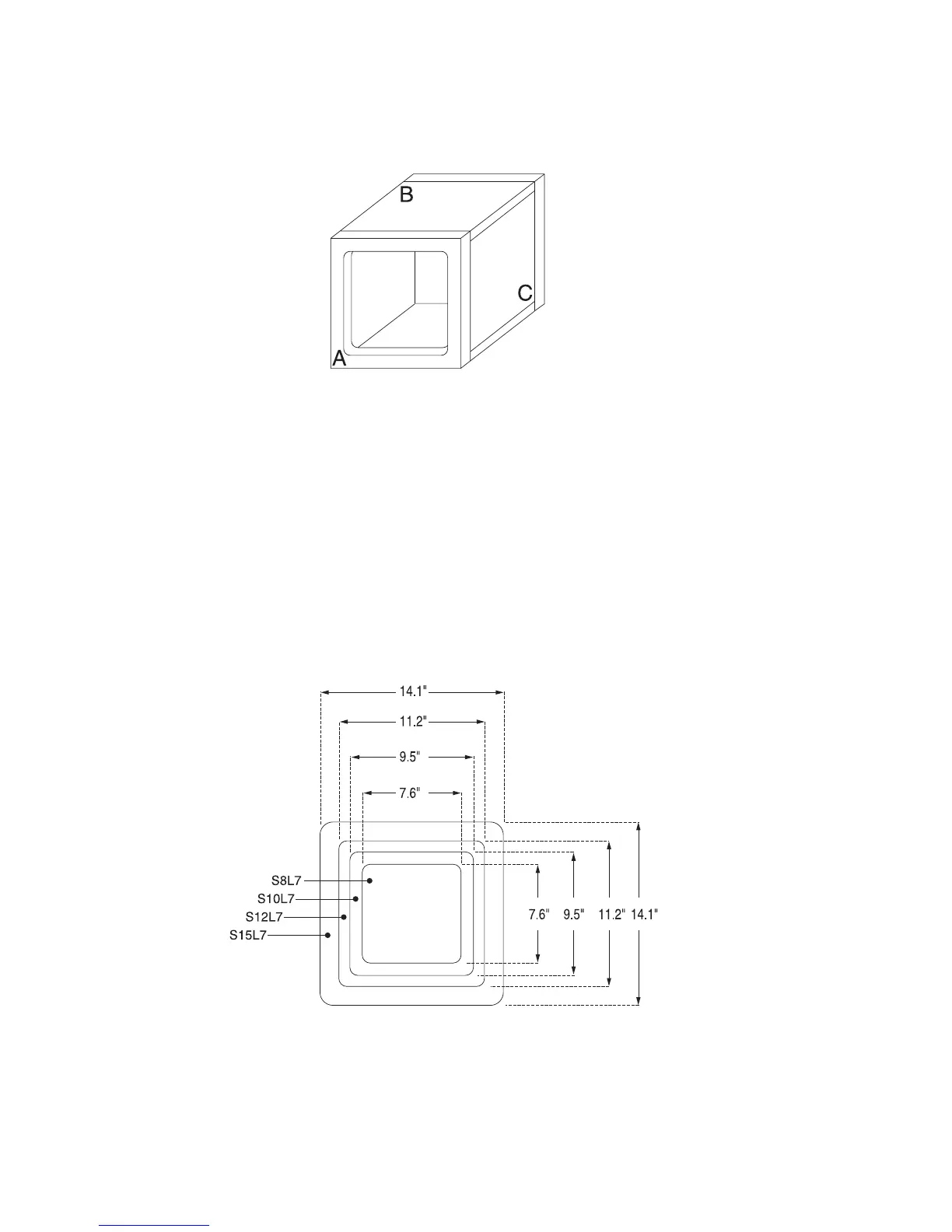

Panel dimensions for minimum recommended enclosures:
Model Volume (cu.ft.) Panel A Panel B Panel C
S8L7 0.33 10"x10" 10"x8" 8"X8.5"
S10L7 0.66 12"x12" 12"x10.5" 10.5"x10.5"
S12L7 0.88 13"x13" 13"x11.5" 11.5"x11.5"
S15L7 1.5 16.5"x16.5" 16.5"x11.5" 15"x11.5"
Solo-Baric cutout specifications:
Corner Radius for S15L7 – 1.0"
Corner Radius for S12L7, S10L7, S8L7 - .625"
