WIRING
Solo-Baric L7 woofers are available with dual 2 Ohm and dual 4 Ohm voice coils.
Both coils should always be hooked up.
The dual 2 Ohm woofer will give you a 1 Ohm or a 4 Ohm load depending on if the coils
are wired in parallel or in series. The dual 4 Ohm woofer will give a 2 Ohm or 8 Ohm load
depending on how they are wired.
The terminals with solid red and black markings are for one voice coil. The terminals with
the white dots are for the second voice coil.

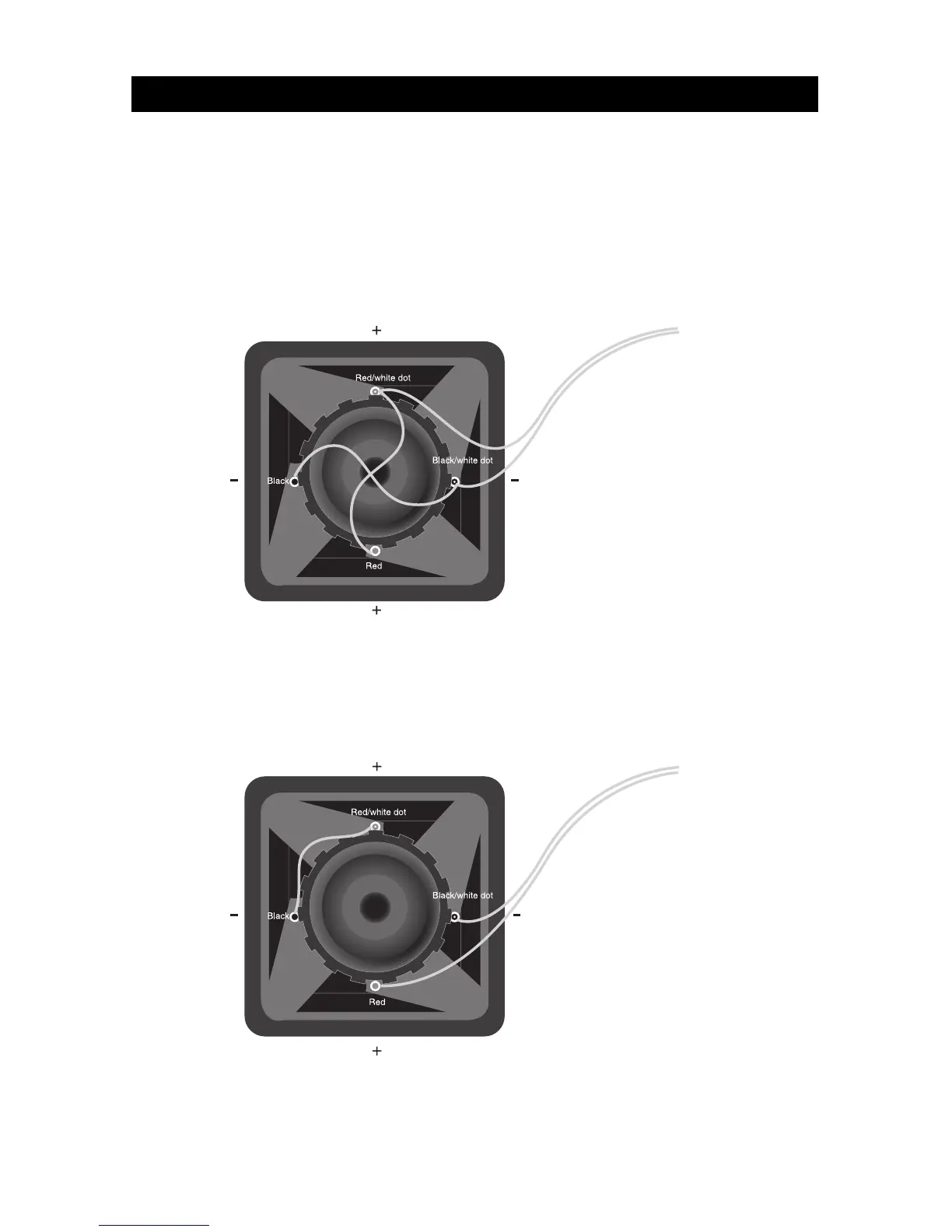

Parallel Wiring
Dual 2 Ohm = 1 Ohm load
Dual 4 Ohm = 2 Ohm load
Series Wiring
Dual 2 Ohm = 4 Ohm load
Dual 4 Ohm = 8 Ohm load
