SoloX Subwoofers
Wiring
Wiring

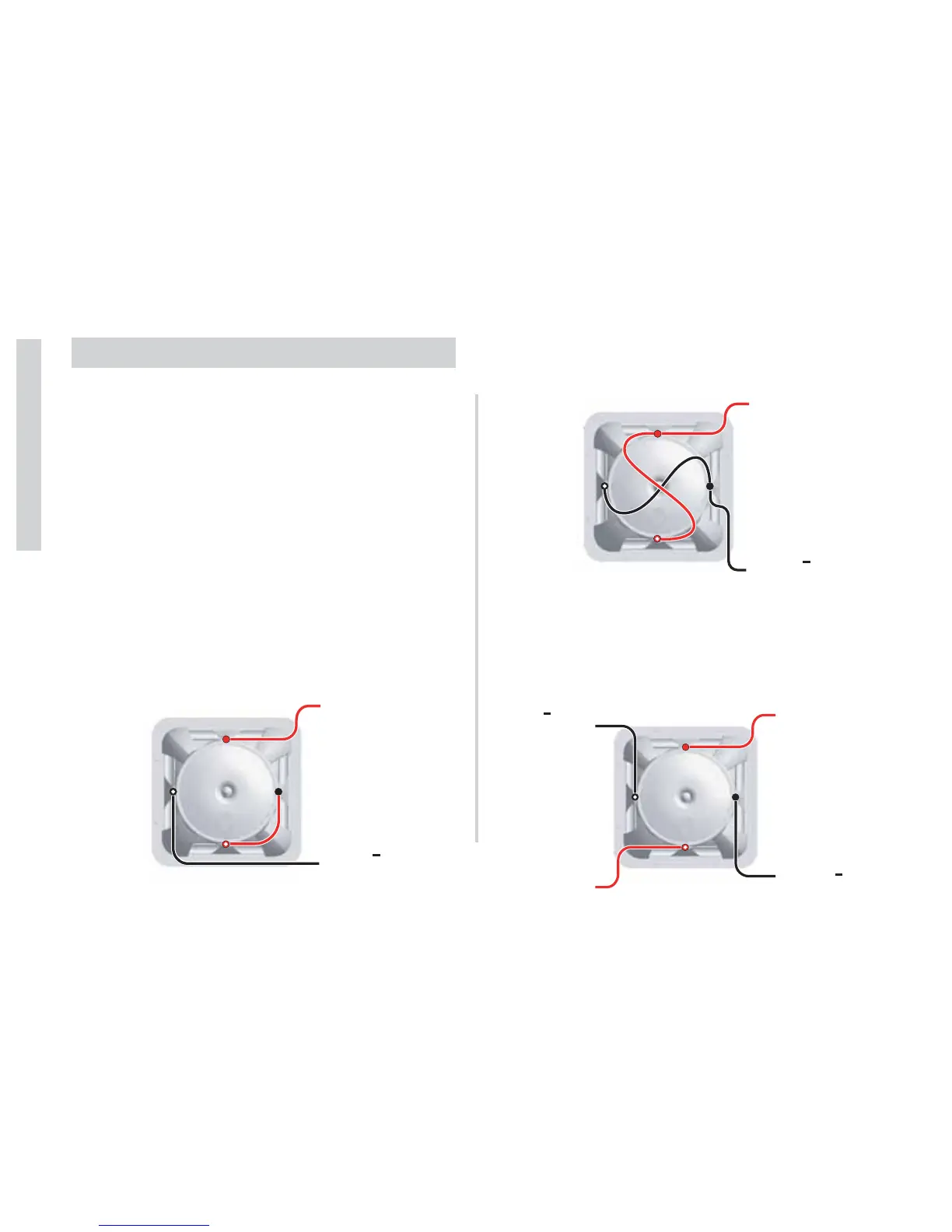

The SoloX woofers are available with dual 2 Ohm or dual 1
Ohm voice coils. The terminals without white dots are for voice
coile one. The terminals with the white dots are for the second
voice coil.
Both voice coils must be powered up. Coose a Series or
Parallel wiring option that fits your system and amplifier’s
requirements. You can also wire each coil to a single amplifier.
NOTE: Be sure your amplifier is NOT wired to a load below its
minimum impedance specifications. Follow your amplifier
manufacturer’s recommendations.
Amplifer +
Speaker Connection
Amplifer
Speaker Connection
Coil 1 +
Coil 2 +
Coil 2 -
Coil 1 -
Coil 1 +
Coil 2 +
Coil 2 -
Coil 1 -
Amplifer +
Speaker Connection
Amplifer
Speaker Connection
Parallel Wired
Dual 1
Ω
= 2
Ω
Load
Dual 2
Ω
= 4
Ω
Load
Dual 1
Ω
= .5
Ω
Load
Dual 2
Ω
= 1
Ω
Load
Series Wired
Amplifer 1 +
Speaker Connection
Amplifer 1
Speaker Connection
Amplifer 2 +
Speaker Connection
Amplifer 2
Speaker Connection
Coil 1 +
Coil 2 +
Coil 2 -
Coil 1 -
Dual Amplifier
Dual 1
Ω
= 1
Ω
Load Per Amp
Dual 2
Ω
= 2
Ω
Load Per Amp
