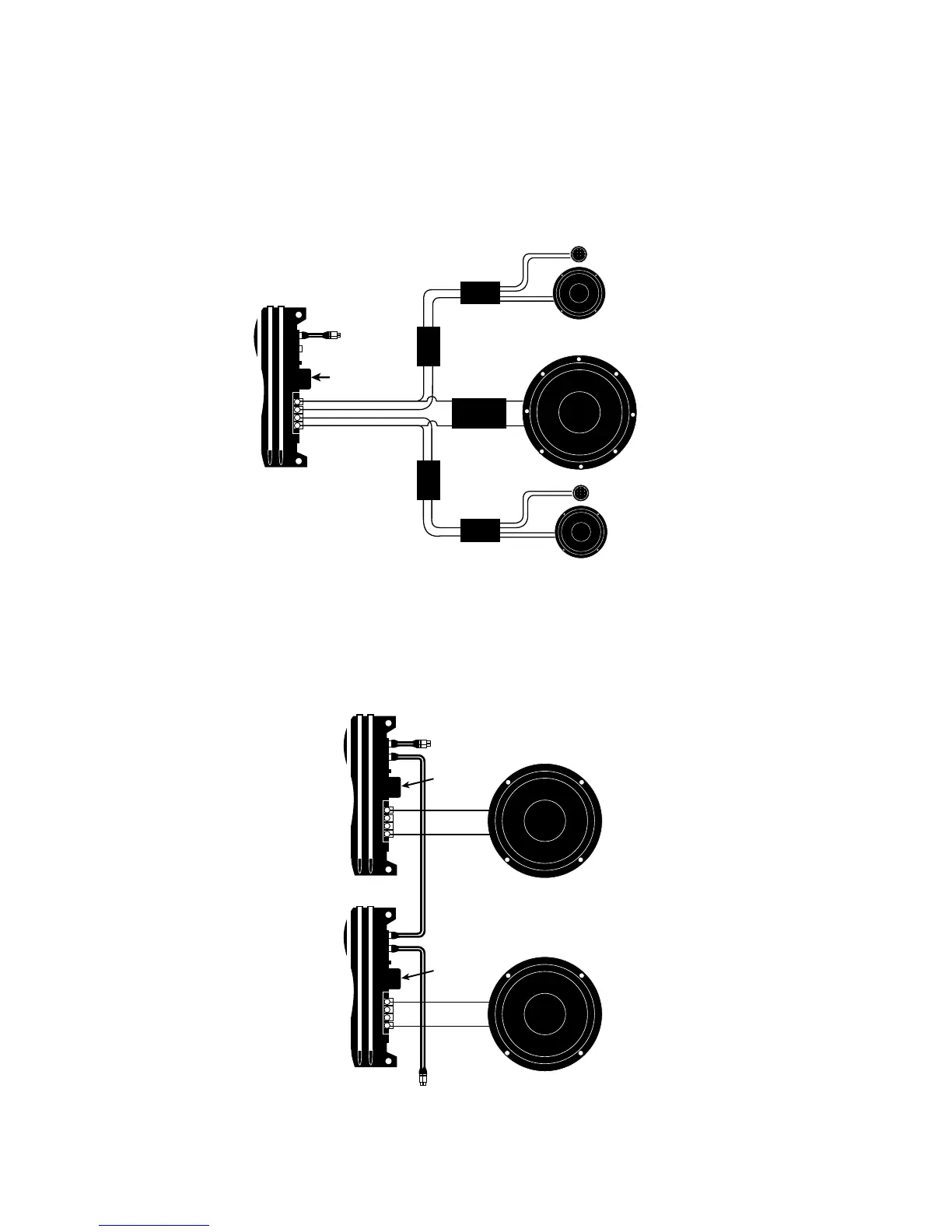

THREE CHANNEL OPERATION
The higher frequencies (typically above 100Hz) are connected in stereo while the mono
woofer(s) are connected from the left+ to the right-. These systems require the use of
passive crossovers to maintain proper impedance loads at all frequencies.
DAISY-CHAINING AMPLIFIERS
When operating more than one amplifier in the same frequency range it is possible to
connect the input of the next amplifier to the output of the first. Daisy chaining in this
manner requires only one source for several amplifiers.
TO SOURCE
TO NEXT
KICKER AMPLIFIER
KICKER SUBWOOFER
+
+
–
+
–
–
KICKER SUBWOOFER
+
–
+
–
+
–
ZRX Lowpass
ZRX Lowpass
TO SOURCE
ZRX Bypass
HIGH-PASS
PASSIVE
CROSSOVER
SYSTEM
CROSSOVER
SUBWOOFER (1Ω Minimum)
KICKER RESOLUTION™ SYSTEM PACK
(1/2 Ω Minimum)
+
+
–
+
–
–
+
–
+
–
+
–
+
–
HIGH-PASS
PASSIVE
CROSSOVER
+
LOW-PASS
PASSIVE
CROSSOVER
SYSTEM
CROSSOVER
+
–
+
–
+
–
–
(System Diagrams, continued)
