External Control | Setting Digital Input/Output

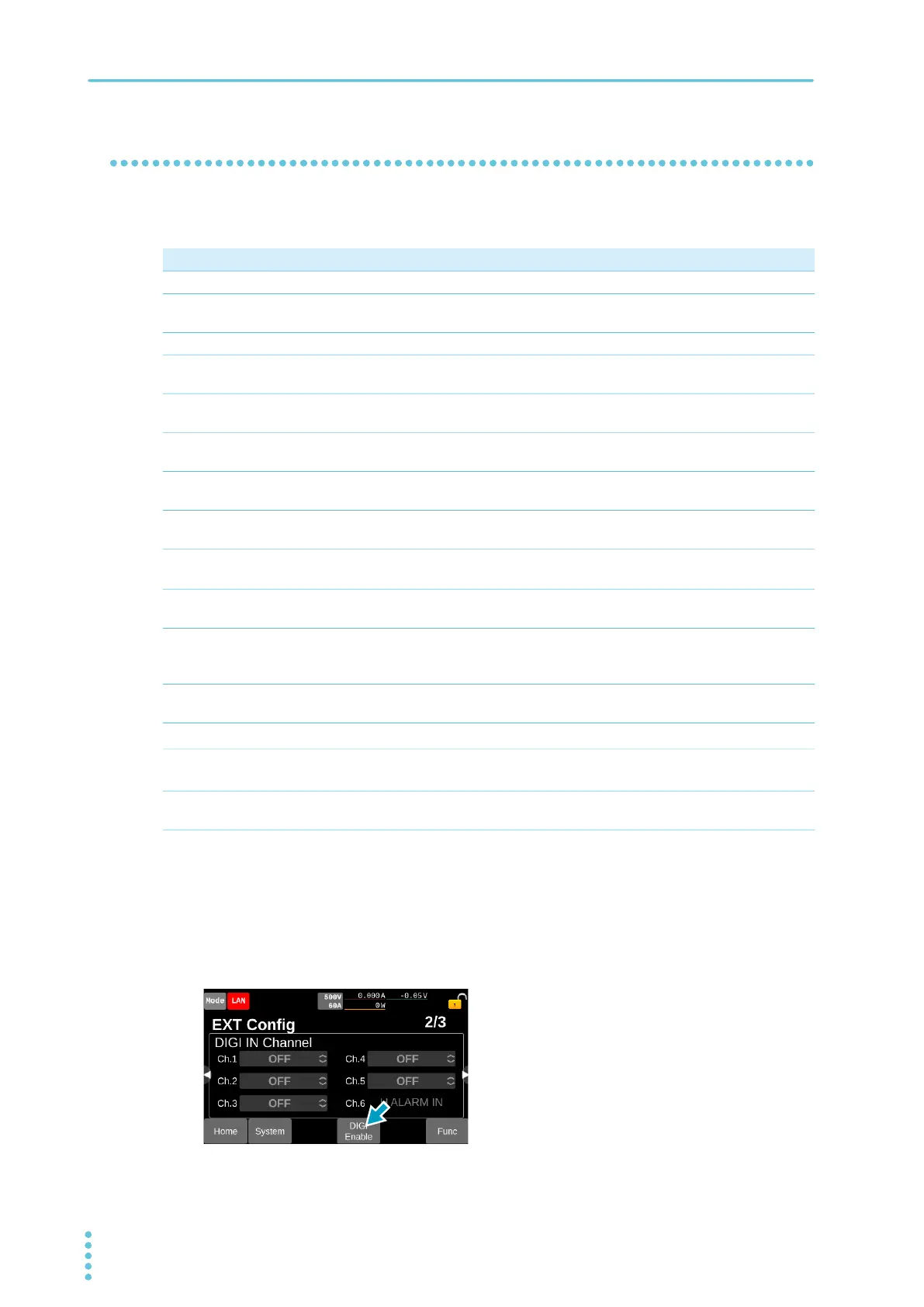

Setting the functions of the general-purpose digital inputs
General-purpose digital input terminals are provided at Ch.1 to Ch.5. Ch.6 is fixed for H Alarm IN (HIGH
alarm). Arbitrary functions from the following items can be selected respectively.
1
Press System > EXT Config on the homepage.
2
Swipe to the left, or press the → key.
3
When the input fields for Ch.1 to Ch.5 are grayed out, press DIGI Enable.
Enable the digital input/output.
Set value Description
OFF Terminals are not used.
OUTPUT ON When the signal is turned on from off, the output from the DC OUTPUT terminal is turned
on.
OUTPUT OFF While the signal is on, the output from the DC OUTPUT terminal is turned off.
OUTPUT CTRL When the signal is turned on from off, the output from the DC OUTPUT terminal is turned
on. While the signal is on, the output from the DC OUTPUT terminal is turned off.
L ALARM IN While the signal is on, a LOW alarm is generated, and the output from the DC OUTPUT ter-
minal is turned off.
ALARM CLR When the signal is turned on from off, the LOW alarm will be cleared. If L ALARM IN is
turne
d on simultaneously, L ALARM IN will be prioritized.
SEQ RUN
When the signal is set to ON from OFF, the sequence will be executed. When the signal is set to
OFF from ON, the sequence will be cancelled.
SEQ PAUSE
When the signal is set to ON from OFF, the sequence will be paused. When the signal is set to
OFF from ON, the sequence will be resumed.
INTEG CTRL When the signal is set to ON from OFF, the elapsed time, current, and power are integrated.
When the signal is set to OFF from ON, integration stops.
INTEG RESET While the signal setting is ON, the integrated values of elapsed time, current, and power are
reset
.
ACQUIRE TRIG
When the signal is set to ON from OFF, the measurement trigger will be input. When the Source of
the measurement trigger is in the trigger wait state with EXT (p. 39), the measurement will be
started.
SEQ TRIG IN
When the signal is set to ON from OFF, the sequence trigger will be input. When the Wait Trig of
the sequence is in the trigger wait state with EXT (p. 104), the sequence will be started.
MEM1 RECALL
When the signal is set to ON from OFF, preset memory 1 will be recalled
1
.
1. While the signal is on, the set values to be saved in the preset memory cannot be changed.
MEM2 RECALL
When the signal is set to ON from OFF, preset memory 2 will be recalled
1
. If MEM1 RECALL
is turned on simultaneously, MEM1 RECALL will be prioritized.
H ALARM IN The function fixed to Ch.6. While the signal setting is ON, a HIGH alarm will be generated,
and the output from the DC OUTPUT terminal is turned off.
To Next Page
