Kilews SKP-BC40HL User Manual

5
※SKD-BN203LS5 can’t work with slow start (RC / SP) function.
※SKP-BC series must be used with SIX PIN screwdrivers, so please confirm the screwdriver’s type is
SKD-BN series and the connector is SIX PIN when using.
Step of the screwdriver confirmation：
1.Confirm the sticker is "SKD-BN" type.
2.Confirm the screwdriver’s CONNECTOR type is SIX PIN.
3.Confirm the connect cable between screwdriver and power controller is SIX wires.

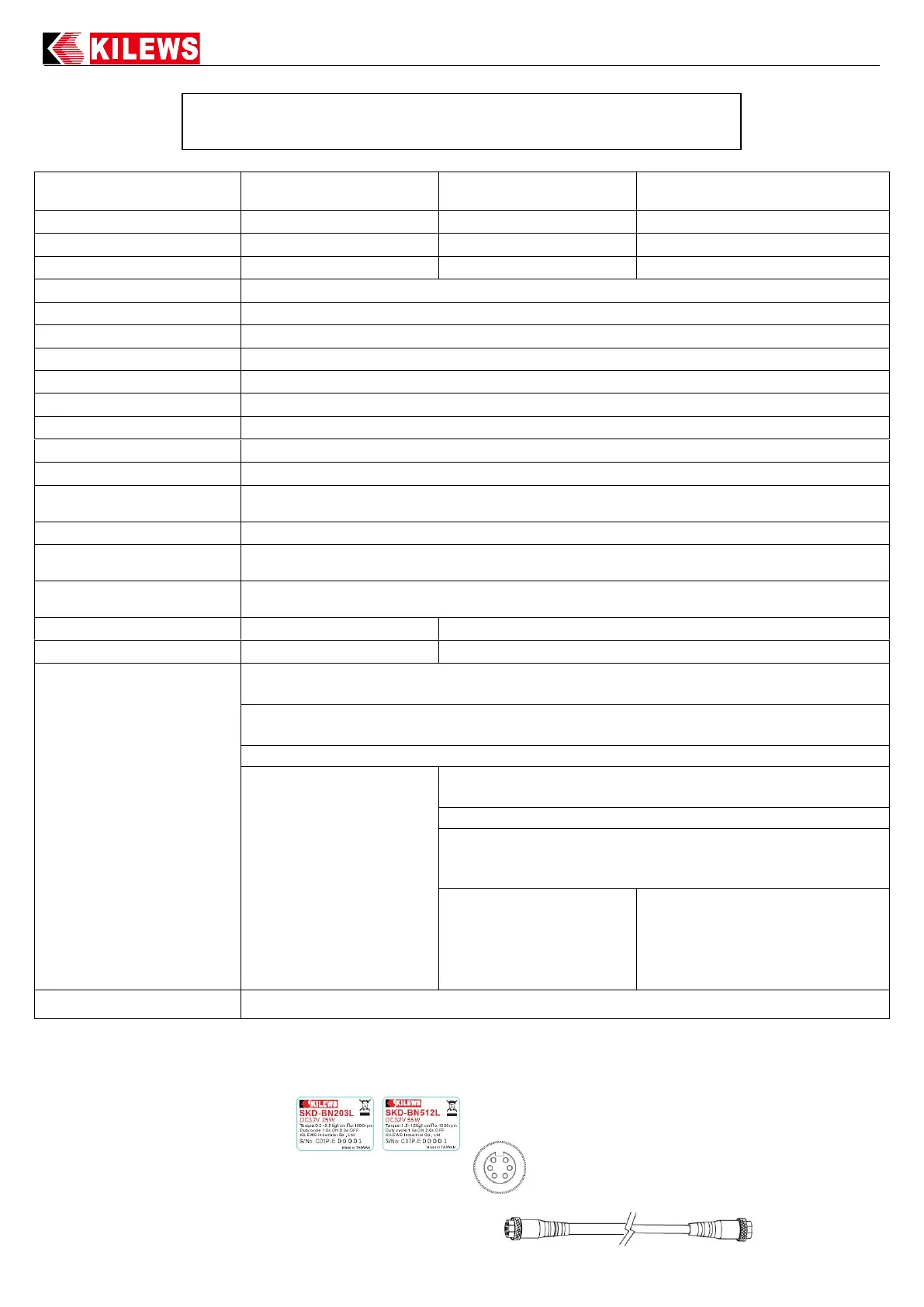

Model No
SKP-BC32HL-100N
(ver：3.0)
SKP-BC40HLN
(ver：3.0)
SKP-BC40HL-800
(ver：3.0)
Input Voltage
AC 100-240V 50 / 60Hz
AC 100-240V 50 / 60Hz
AC 115/230V 50 / 60HZ
Output Voltage
DC 32V/ 24V
DC 40V/ 32V/ 24V
DC 40V/ 32V/ 24V
Power Consumption
60W
220W
360W
Counting Numbers
1~99
Counting Method
Forward as / Count down
Connecting Sensor
ON / OFF
Sensing Switch Mode
ON (2 Sensor) / OFF (1 Sensor)
Slow-Start Time Adj.
0.0~9.9 seconds
Slow-Start Speed Adj.
L0：100%， 30％~90％ L1~L9 Rated speed
Start Detecting Time
0.01-9.99 seconds
Stop Detecting Time
0.1-9.9 seconds
Detecting Alarm
ON/ OFF/ FF/ EF with LED and buzzer
Auto response/Manual
response
ON / OFF
External Connection Input
Forward / Reversion / Prohibit operation / Sensor Switch / resuming Switch / Confirm Switch
External Connection
Output
OK/ NG/ OK ALL
Electric Screwdriver Speed
Control
HI / LO； Slow Start
Size (mm)
200*130*100
247 *130*100
Weight (Kg)
1.53
2.4
Applicable Electric
Screwdrivers
SKD-BN203L；SKD-BN203LS5；SKD-BN203LS6；SKD-BN203LS7
SKD-BN207L；SKD-BN210L
SKD-BN512L；SKD-BN512P；SKD-BN512LF；SKD-BN512PF
SKD-BN519L；SKD-BN519P；SKD-BN517LF；SKD-BN517PF
SKD-BN730L；SKD-BN730P；SKD-BN722LF；SKD-BN722PF
SKD-BN830L；SKD-BN830P；SKD-BN830LF；SKD-BN830PF
SKD-BN850L；SKD-BN850P
SKD-TBN60L；SKD-TBN90L；SKD-TBN120L；SKD-TBN180L
SKD-RBN60L；SKD-RBN60P；SKD-RBN90L；SKD-RBN90P
SKD-RBN120L；SKD-RBN120P；SKD-RBN180L；
SKD-RBN180P
SKD-BN960L；SKD-BN960P
SKD-BN990L；SKD-BN990P
SKD-BN9120L；SKD-BN9120P
SKD-BN960LF；SKD-BN960PF
SKD-RBN250L；SKD-RBN250P
Accessories
Power cord *1、Key *2
Main Technical parameters
