Kilews SKP-BC40HL User Manual

9

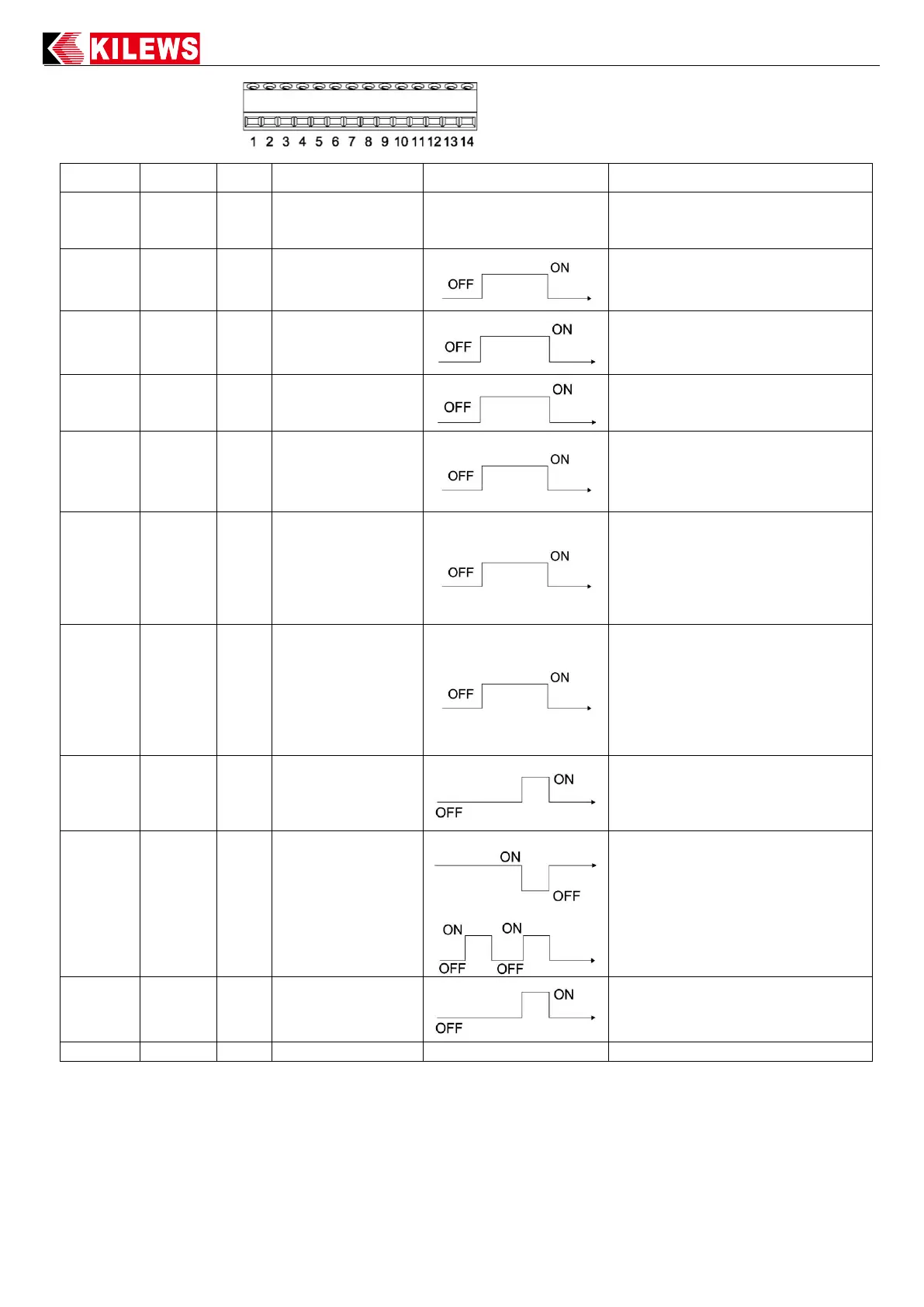

I/O Inserting Hole：
※CN1(V+) and CN14(COM) can provide DC 24V(Default)。(DC +12V need to custom modify)
※If users need different DC voltage, they must use their own step-down circuit to decrease voltage.
※If user need to input voltage to drive the alert instrument, do not use over DC+/-40V /, +/- 250mA voltage.
No
Name
In/Out
Content
wave pattern of signals
Remark
CN1
V+
Output 12 or 24 v dc
Output：DC +12V or +24V (Max：200mA)
Default value：+24VDC
(+12VDC need to custom modify)
CN2~CN3
OK
Output
CN2 and CN3 will be short
when finished fasten one
screw
Automatically open
MOS RELAY (default) +/- 40V, +/- 250mA
(Open Collector need to custom modify)
CN4~CN5
NG
Output
CN4 and CN5 will be short
when error occur
Automatically open
MOS RELAY (default) +/- 40V, +/- 250mA
(Open Collector need to custom modify)
CN6~CN7
OK ALL
Output
CN6 and CN7 will be short
when finished fasten all
screw in the list
Automatically open
MOS RELAY (default) +/- 40V, +/- 250mA
(Open Collector need to custom modify)
CN8
START_IN
Input
External START input
1.When short Start input and COM(CN14)
(CLOSE circle), able to start the screwdriver
2.When open circle with COM(CN14),
screwdriver stop.
CN9
DIR_IN
Input
External REVERSE input
Shorten with COM (Close circle) and when
enable start signal (CN8 + COM), screwdriver
will start with Reverse rotation.
If the driver switches F/R switch on "forward",
when CN9 + COM short screwdriver is still
reversed rotation after start
CN10
DISABLE
Input
External DISABLE input
When short with COM (CLOSE circle), cannot
start the screwdriver
When open circle with COM, screwdriver is
able to start
* When DISABLE (shorted with COM), work
LED lights ON for 5 seconds, then OFF, then
light up again for 5 seconds, on and off in circle.
CN11
CONFIRM
Input
External CONFIRM input
This switch feature and function is the same as
CONFIRM, but no SELECT key function
After press CONFIRM the NG signal will be
release.
CN12
GATE
Input
External sensor switch
SW2:ON SW4：OFF
SW2：ON SW4：ON
Input a confirm signal for machine to start
working.
Sensor Switch ： External device, you can
connect one or two switches.
CN13
CLR
Input
External device CLEAR
switch
External clear switch, same as clear button on
the panel. It also can disable N.G signal when it
is triggered
CN14
COM
－
CN8 ~ CN13output/input signal COM port
