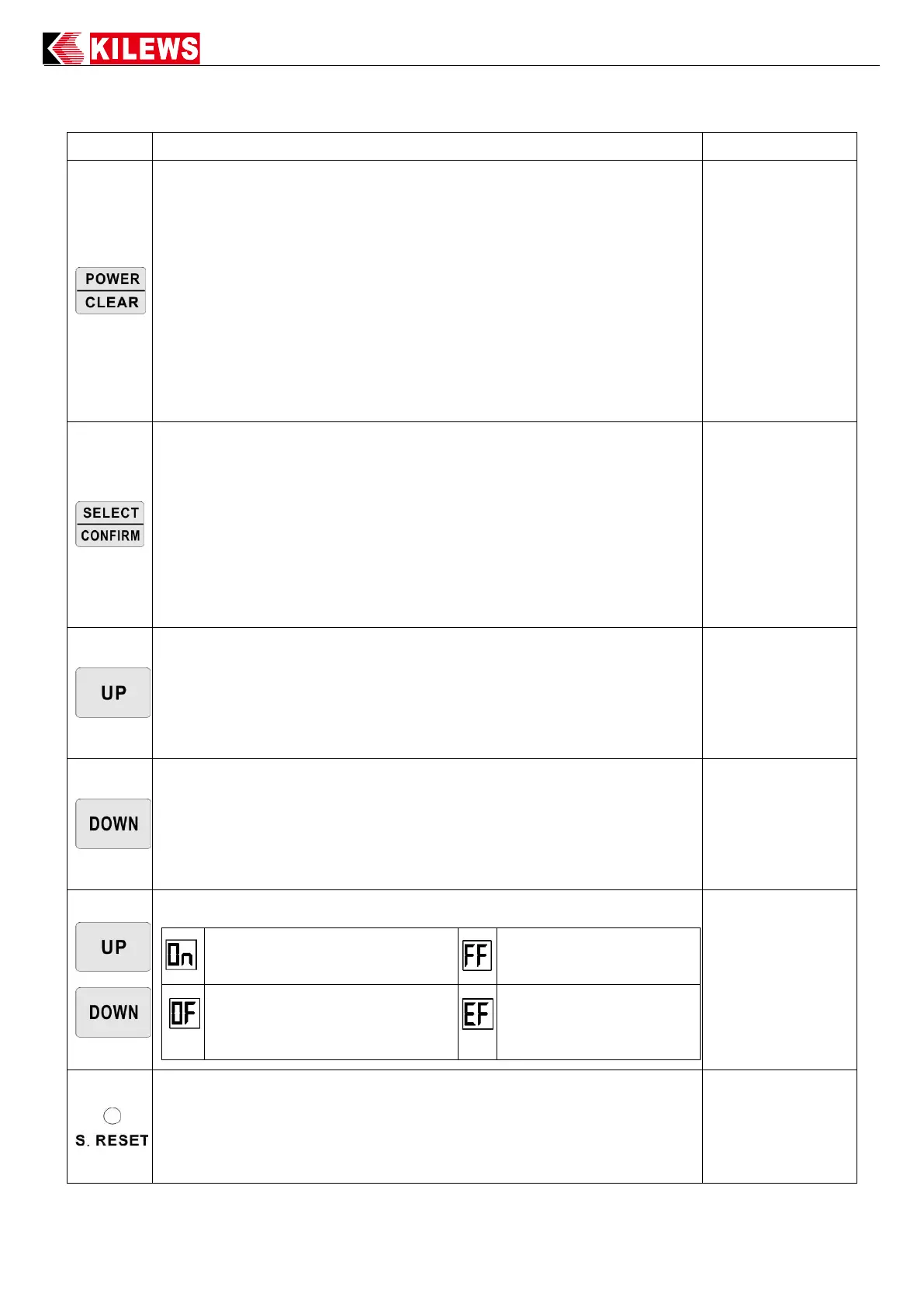

Functions of Keys on Panel：
Key
Description of function.
Remarks
POWER： Power Switch
(1) When power on and have not start counting operation:
Hold for 6 seconds：turn off counting function.
When turn off the counting function, the LED screen is off.
(2) When power on and the counting function is off：
Hold for 3 seconds to turn back on the counting function.
CLEAR： Clear Switch
(1) when screwdriver start counting function
Hold for 1 second：CLEAR, return to original setting for the number of screws and
Beep once
Hold for 3 seconds：Back to U1 (under screw list loop.) and beep 2 times
Switch page：Under setting menu will change pages of decimal point
When there is NG
signal, press CLEAR
bottom to clear the
NG signal
SELECT：
Press and hold SELECT button for 3 seconds to enter system setting menu：
SL---SC---At---RC---SP---Ht---Lt---LL---NS---rt---rr---rS
When enter the setting menu. Press and hold S button to show the function (ex：SL or
SC…etc.)and with beep sound. Release the "S" button to show the setting value
CONFIRM：
When DIP SW3 ON, when the user finished fasten a unit of screws. The counter
requires to press CONFIRM button to start the next unit
1. Refer to CONFIRM
mode：
When there is NG
signal output. Press
"CONFIRM" button to
stop the NG signal
output.
UP：
In system menu, pressing the key to increase the number.
This key will point out user set-up number and unit during the process ：
U1： No.1 setting number. U2： No.2 setting number.
U3： No.3 setting number. U4： No.4 setting number.
U5： No.5 setting number.
When press the UP
button (hold), then
panel will show the
unit number, then
press the start plate
and the screwdriver
will not operate
DOWN：
In system menu, pressing the key to decrease the number.
This key will point out user set-up number and group during the process ：
U1： No.1 setting number. U2： No.2 setting number.
U3： No.3 setting number. U4： No.4 setting number.
U5： No.5 setting number.
When press the
DOWN button (hold),
then panel will show
the unit number,
then press the start
plate and the
screwdriver will not
operate
+
Up+Down：
Select the following modes.
When fastening screw, completing work
and if mistaken operation, the buzzer
sound will be on.
warring beep when finish all
screws in the list and error in
operation
Only beep warning when wrong
operation
As one screw is fastened and
work is completed, buzzer will
be on；wrong operation will be
no sound.
S.RESET：SYSTEM RESET
Because of voltage or operation cause system abnormal, push this key back to the
initial number.
Press RESET key
once then release.
When hold RESET
key, the screwdriver is
not able to operate
until the release the
reset button.
