GLYCOL PUMP
11
www.kimray.com
Repair Guide

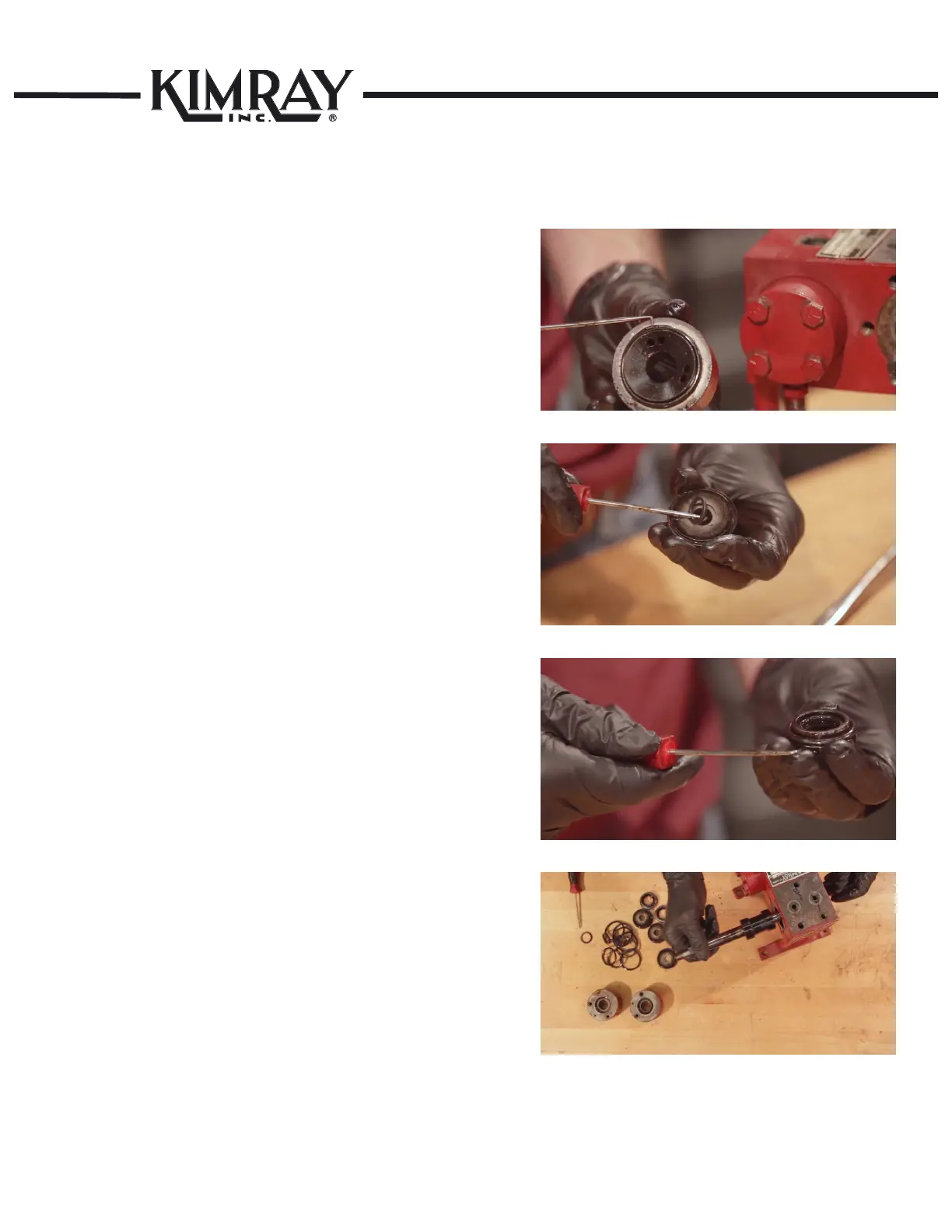

DISASSEMBLY
Figure 8.7
Figure 8.8
Remove the O-Ring from the Piston Retainer Groove.
(Fig. 8.5)
Remove the O-Ring from the Piston Rod Gland (Fig. 8.6).
Remove the two O-Rings located in the communicating
hole grooves from the Pilot Piston Gland.
Repeat on both sides.
Remove the O-Ring and the Backup from the Piston Rod
Seal Retainer (Fig. 8.7).
Remove the Piston Rod Seal Retainer.
Repeat on both sides
Slide out the Piston Rod (Fig. 8.8).
Figure 8.5
Figure 8.6
