Kimray GLYCOL PUMP - Inspecting Parts; Piston Rod Assembly; Pistons

www.kimray.com
GLYCOL PUMP
14
Repair Guide
INSPECTING PARTS

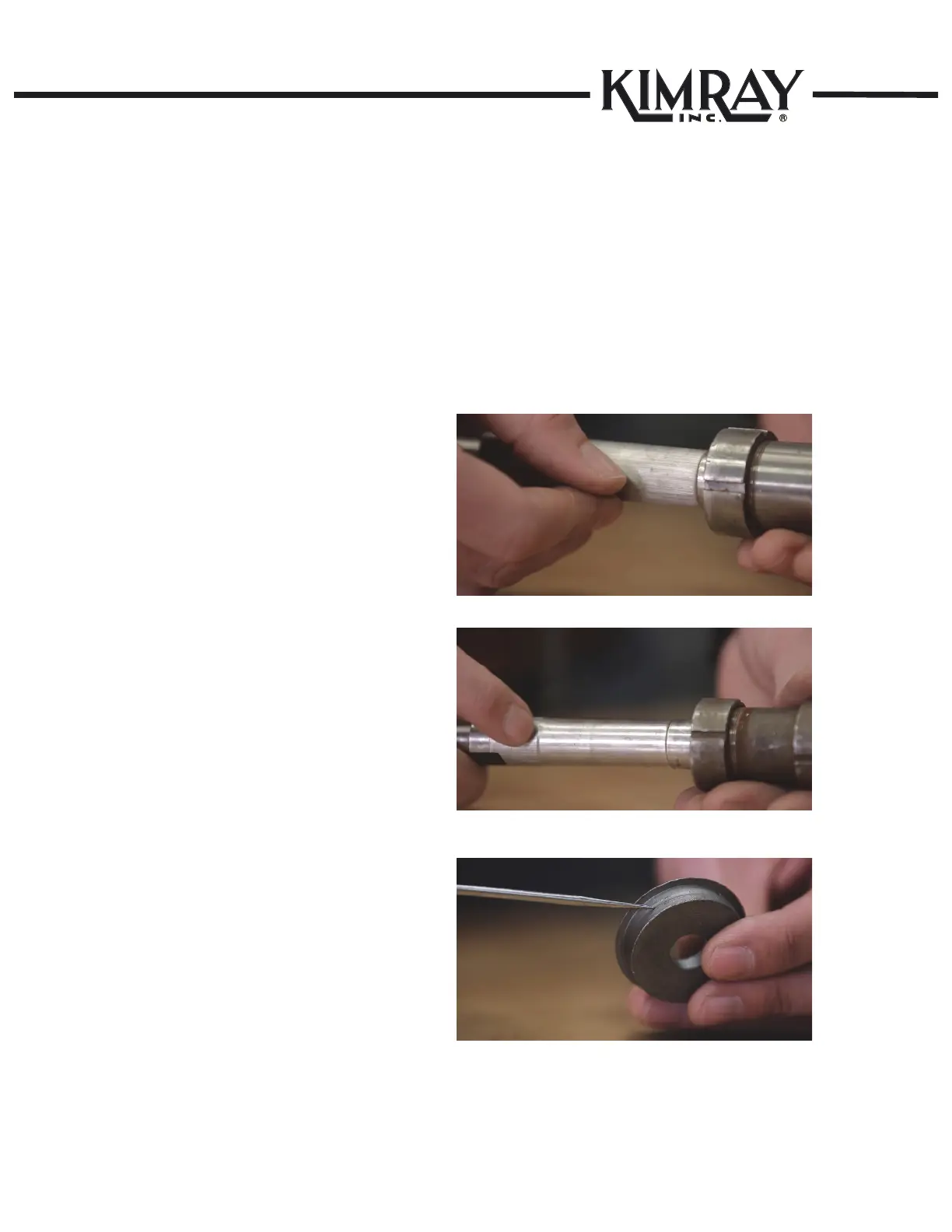

Figure 13.1
Figure 13.2
Figure 14.1
MOST COMMONLY REPLACED PARTS
• Piston Rod
• Pistons
• Cylinders
• Gland Seal Retainers
• Pilot piston rod
• Check Valve Caps
• Darts
OCCASIONALLY CHANGED PARTS
• Suction Block
• Suction Seat
• Discharge Seat
• Discharge Block
• Glands
• Pilot Piston Retainers
STEP 13
PISTON ROD ASSEMBLY
Check for scoring. Replace if the scoring can be felt with
the finger nail (Fig. 13.1).
Repair if the rod has light scoring. They can sometimes be
smoothed out with 220 grit or fine emery cloth.
Check for uneven rod wear. Replace if an uneven surface
is felt (make sure to inspect the whole rod surface,
sometimes the wear is located on a small area) (Fig. 13.2).
STEP 14
PISTONS
Replace if the surface where the O-Ring seats shows
wear (Fig. 14.1).
NOTE: Check the outside surface where the O-Ring and
backup are placed. Check surface for an O-Ring groove.
