GLYCOL PUMP
15
www.kimray.com
Repair Guide

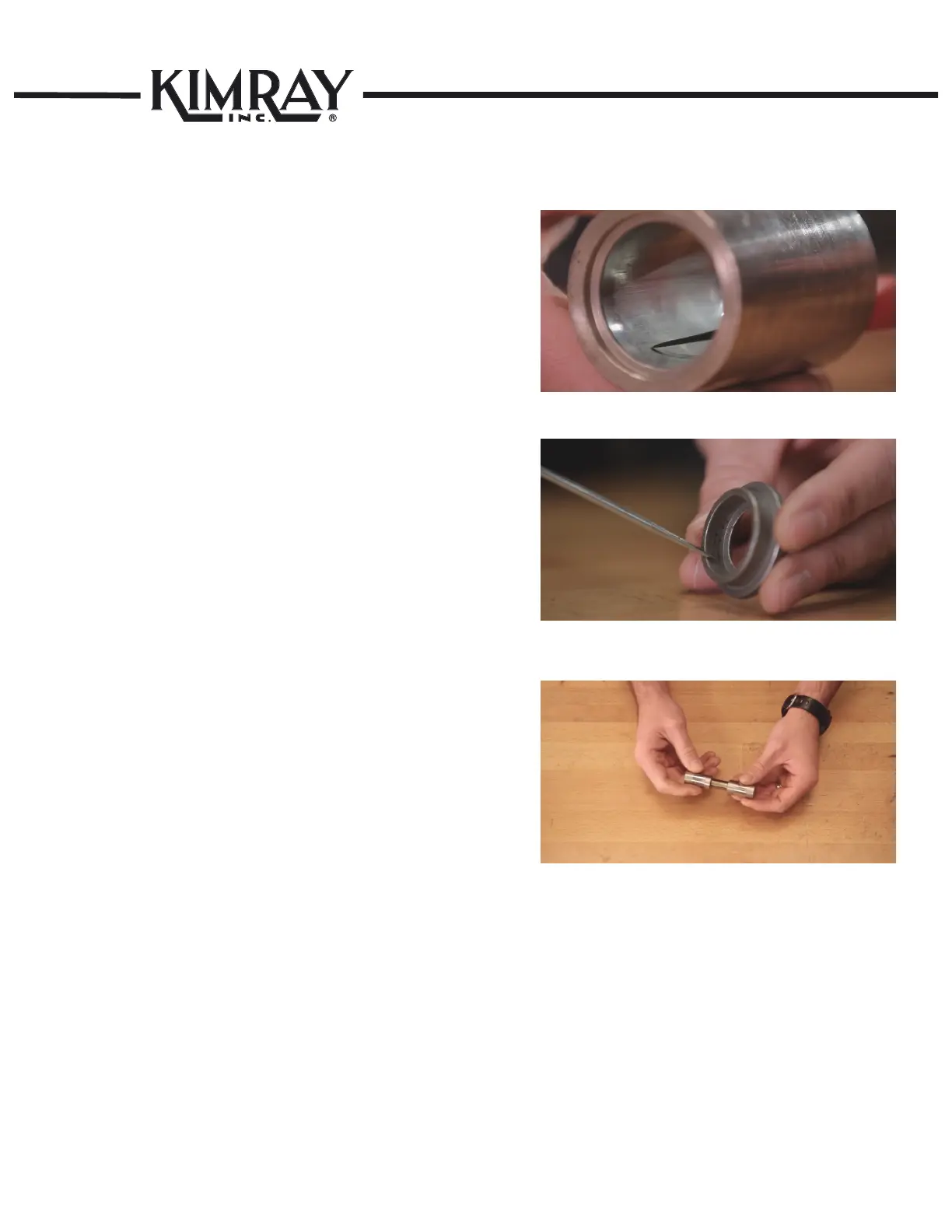

STEP 15
CYLINDERS
Replace if there are ripples at each end of stroke area
(Fig. 15.1), or if there is scoring in the cylinder.
Note: A combination of cylinder wear and a piston wear
will decrease O-Ring squeeze.
INSPECTING PARTS
Figure 15.1
Figure 16.1
Figure 17.1
STEP 16
PISTON ROD SEAL RETAINER
These are very critical, since a lot of pump failures occur
from allowing wet and dry glycol to mix.
Replace if the surface where the O-Ring seats shows
wear (Fig 16.1).
NOTE: Check the inside surface where the O-Ring and
backup are placed. A good way to check this area is to
take a pencil and run it across the width of the surface and
see if there is any groove.
STEP 17
PILOT PISTON
Replace if there is a presence of scratches (Fig. 17.1), or
if there is a presence of uneven wear.
Repair if the rod has light scratches. They can sometimes
be smoothed out with 220 grit or fine emery cloth.
