GLYCOL PUMP
26
Repair Guide
ASSEMBLY

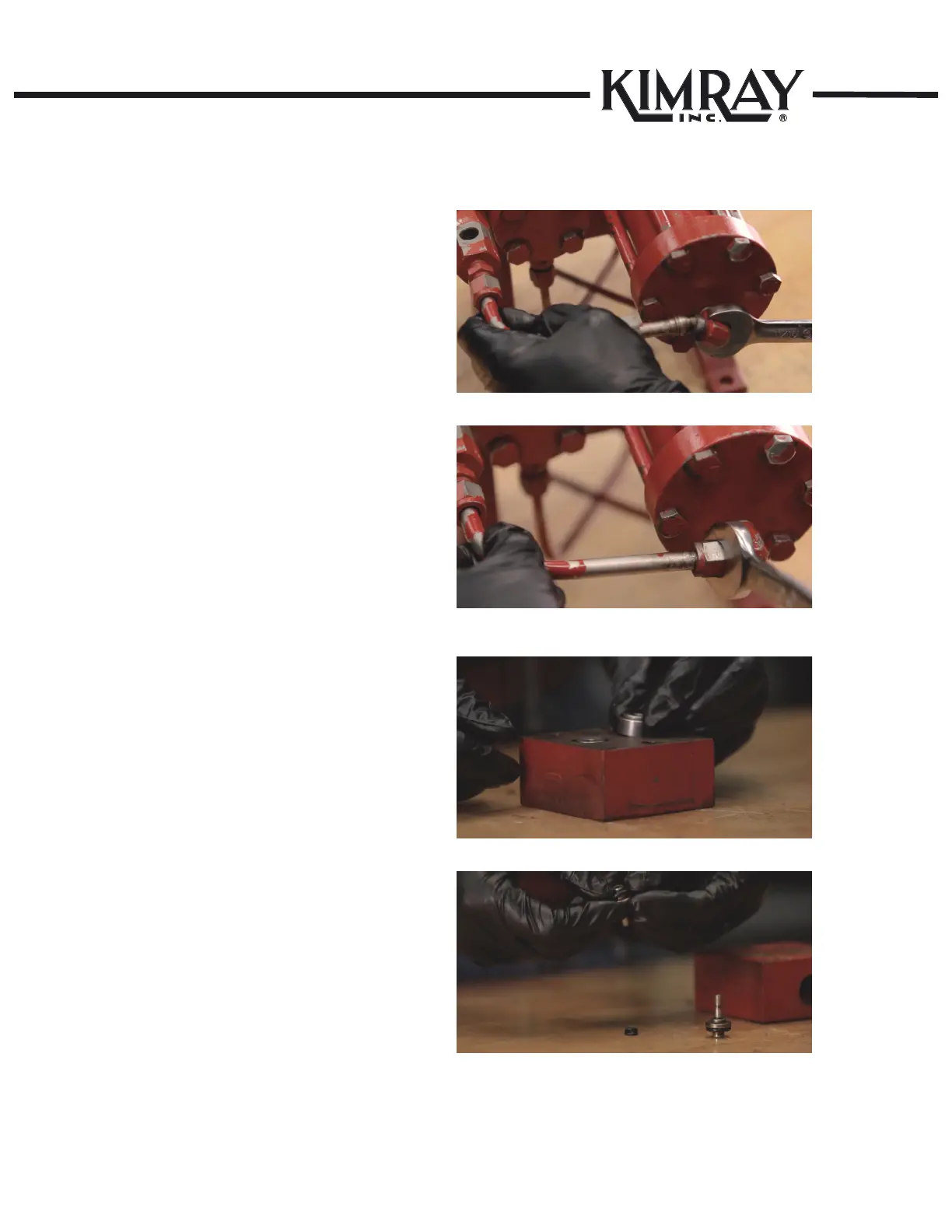

Figure 29.9.1
Figure 29.9
Hand start the L Shape tubing on the needle valve side.
Use your wrench to move the elbow into place (Fig 29.9).
Tighten the fitting until snug, then repeat on other side
(Fig. 29.9.1).
Figure 30.1
Figure 30.2
STEP 30
DISCHARGE AND SUCTION BLOCK ASSEMBLY
Install the Discharge Seats in the Block (Fig 30.1).
Place the upper and lower O-Rings on the Check Valves
(Fig 30.2).
