GLYCOL PUMP
27
www.kimray.com
Repair Guide
ASSEMBLY

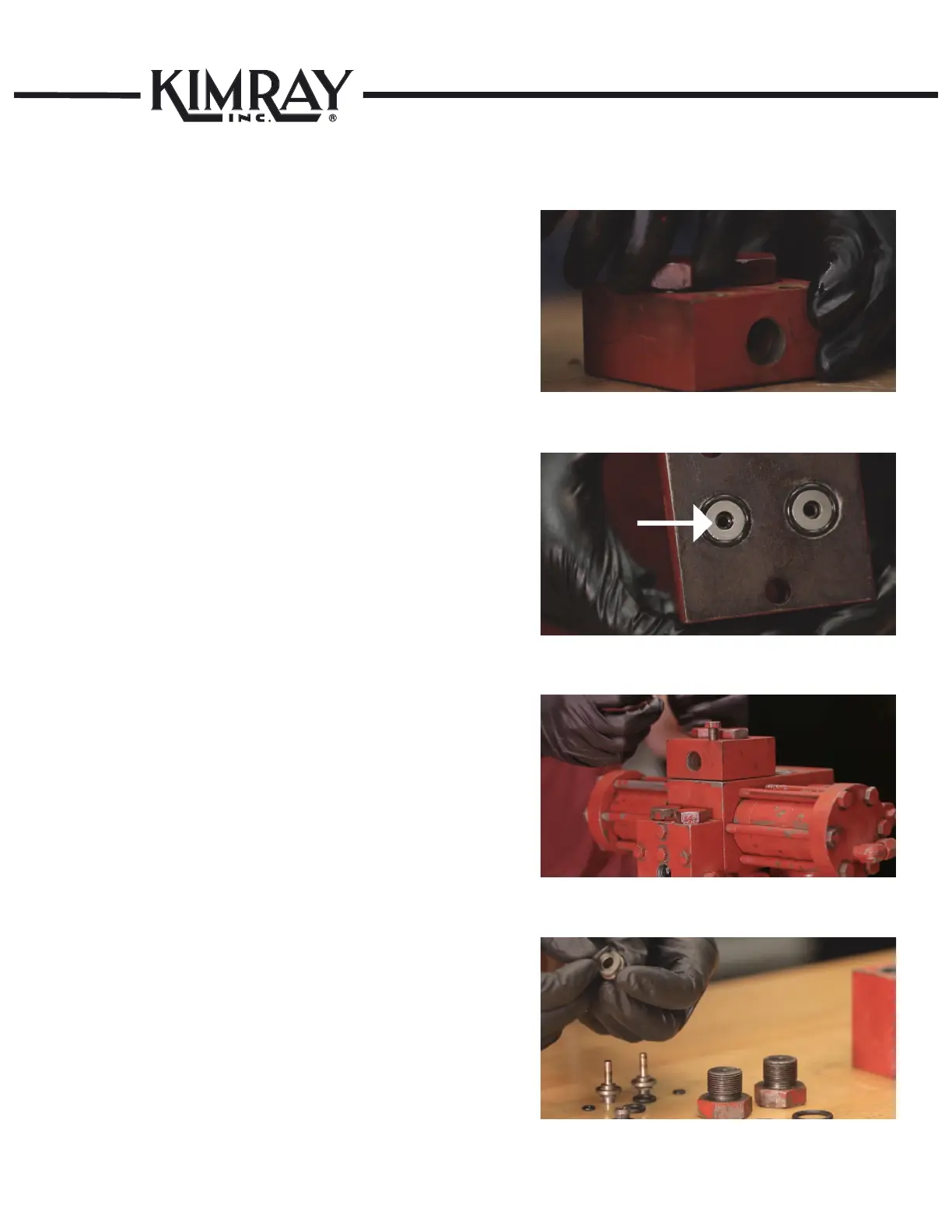

Place the O-Rings on the Check Valve Caps and insert
them into the Discharge Block (Fig 30.3).
Verify the Check Valves are moving freely by shaking the
Discharge Block (Fig 30.4). If installed properly, you will
hear them moving back and forth.
Attach Discharge Block to the pump body (Fig. 30.5)
Put the O-Rings on the Suction Seats and lubricate them
with oil before you install them in the Suction Block (Fig.
30.6).
Figure 30.4
Figure 30.3
Figure 30.6
Figure 30.5
