Kimray GLYCOL PUMP - Needle Valve Assembly

GLYCOL PUMP
29
www.kimray.com
Repair Guide

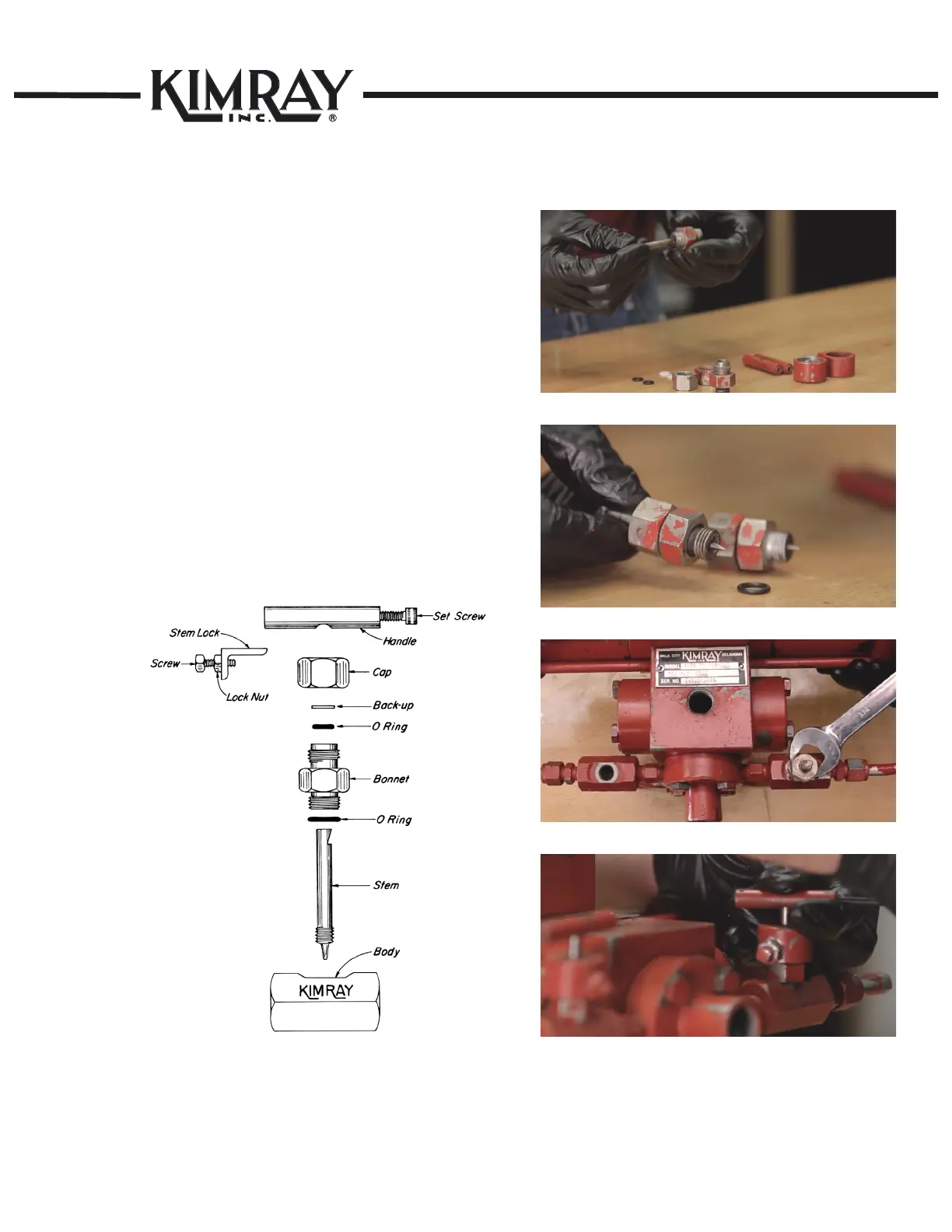

ASSEMBLY
STEP 31
NEEDLE VALVE ASSEMBLY
Thread the Needle Valve Stem into the Needle Valve
Housing (Fig. 31.1).
Place O-Rings and backups around the Stem.
NOTE: Newer Glycol pumps have a groove in the Needle
Valve for an O-Ring (Fig. 31.2), if no groove is present,
disregard the extra O-Ring in repair kit.
Thread the Needle Valve assembly into the Control Valve
Housing. Tighten with wrench (Fig 31.3).
Repeat all these steps for the other Needle Valve.
Install the Valve Cover and attach the Needle Valve
handles (Fig 31.4).
Figure 31.1
Figure 31.2
Figure 31.4
Figure 31.3
New Needle Valve assembly
