GLYCOL PUMP
8
Repair Guide

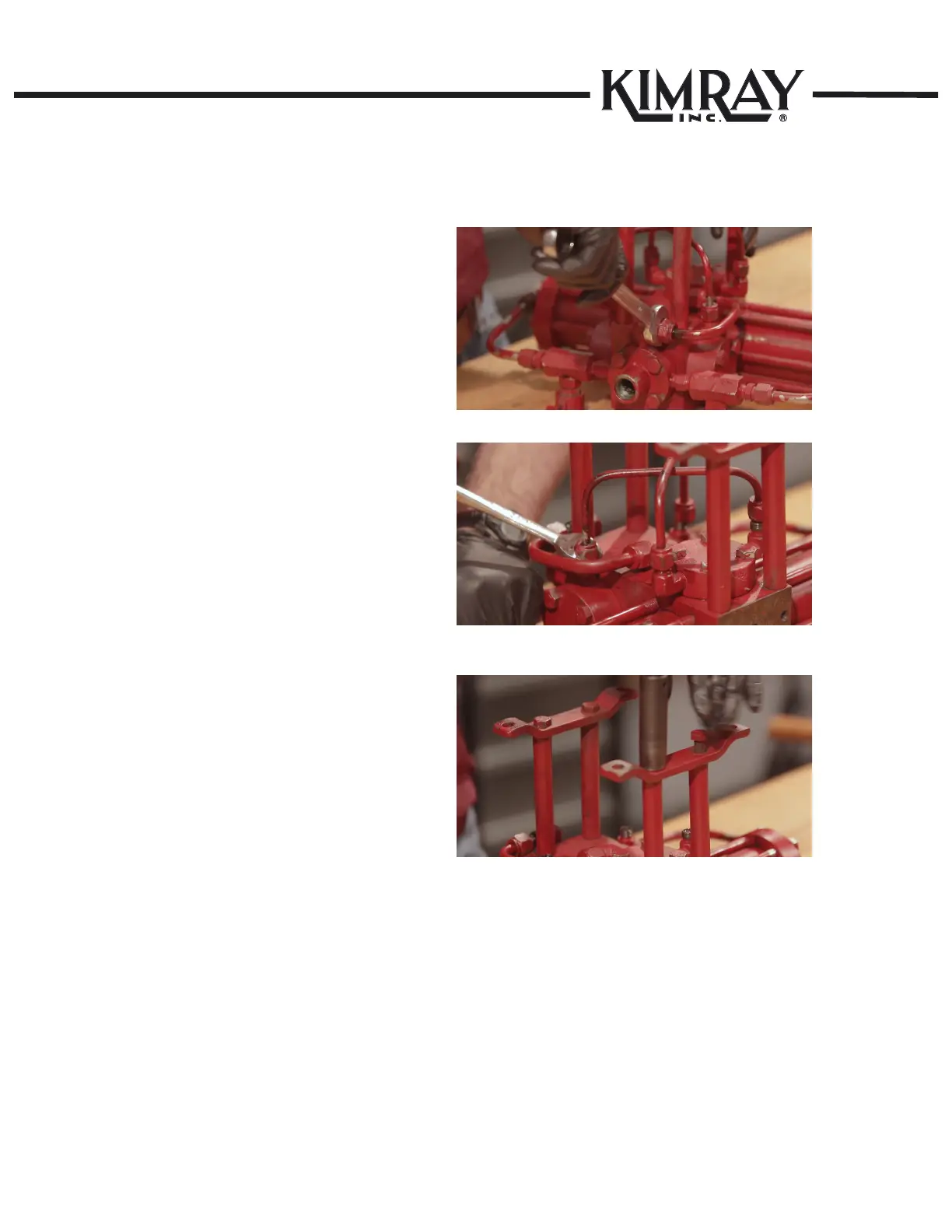

Figure 3.1
Figure 3.2
STEP 3
PISTON DISCHARGE PIPING
Flip pump upside down and loosen the fitting from the
Pilot Piston Discharge Piping (Fig. 3.1).
Remove the Pilot Piston Discharge Piping fittings
(Fig. 3.2).
STEP 4
LEGS
Remove legs. Leave bolt assembly in the legs and set
aside (Fig. 4).
Figure 4.1
