GLYCOL PUMP
7
www.kimray.com
Repair Guide
Remove O-Ring from Suction Seats.

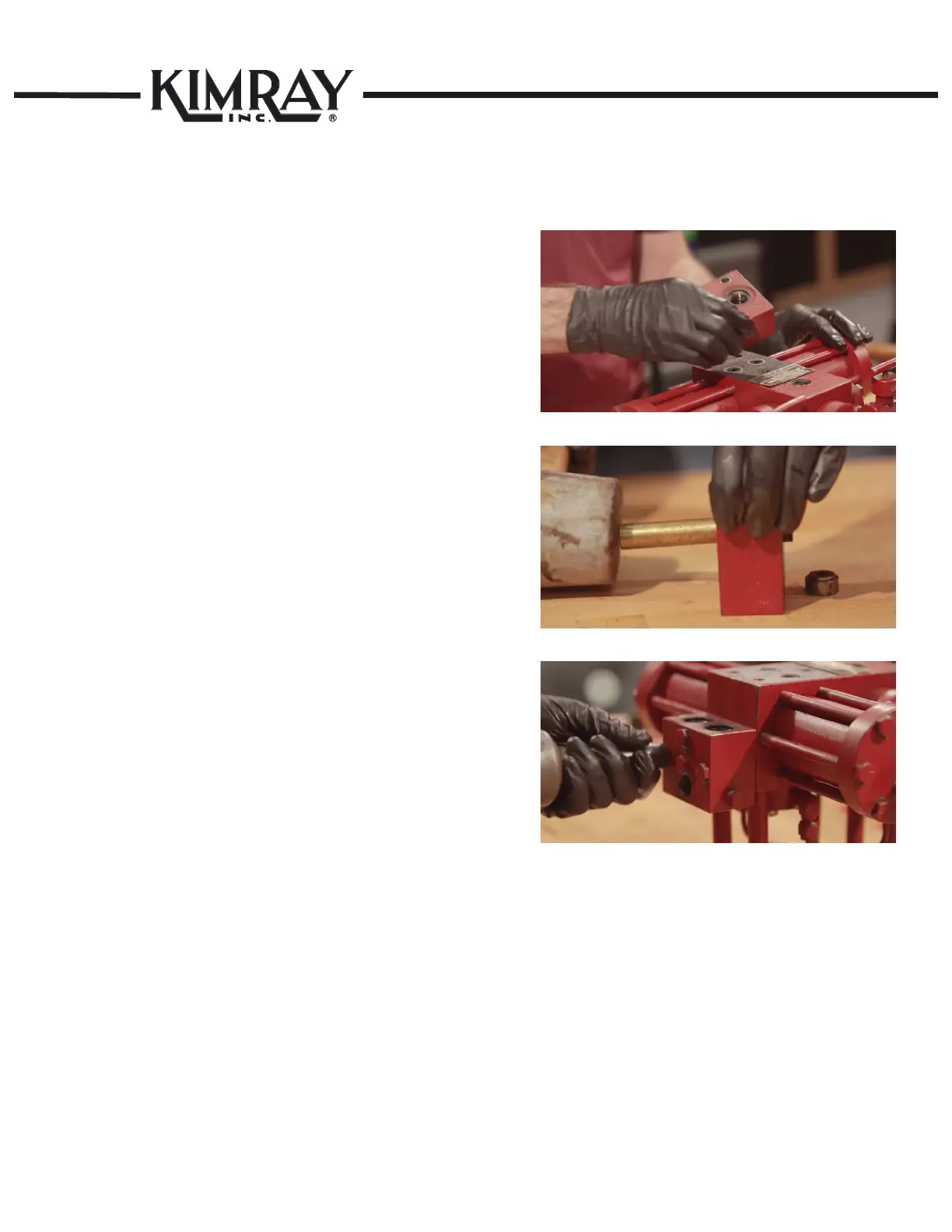

Remove Discharge Block from the Main Piston Body (Fig.
2.4).
Use insert tool and hammer to remove Discharge Seats
(Fig. 2.5).
Remove O-Ring From Discharge Seat.
Remove Suction Block from Main Piston Body (Fig. 2.6).
Remove O-Rings from the back side of the Suction Block
Figure 2.4
Figure 2.5
Figure 2.6
DISASSEMBLY
