GLYCOL PUMP
22
Repair Guide
ASSEMBLY

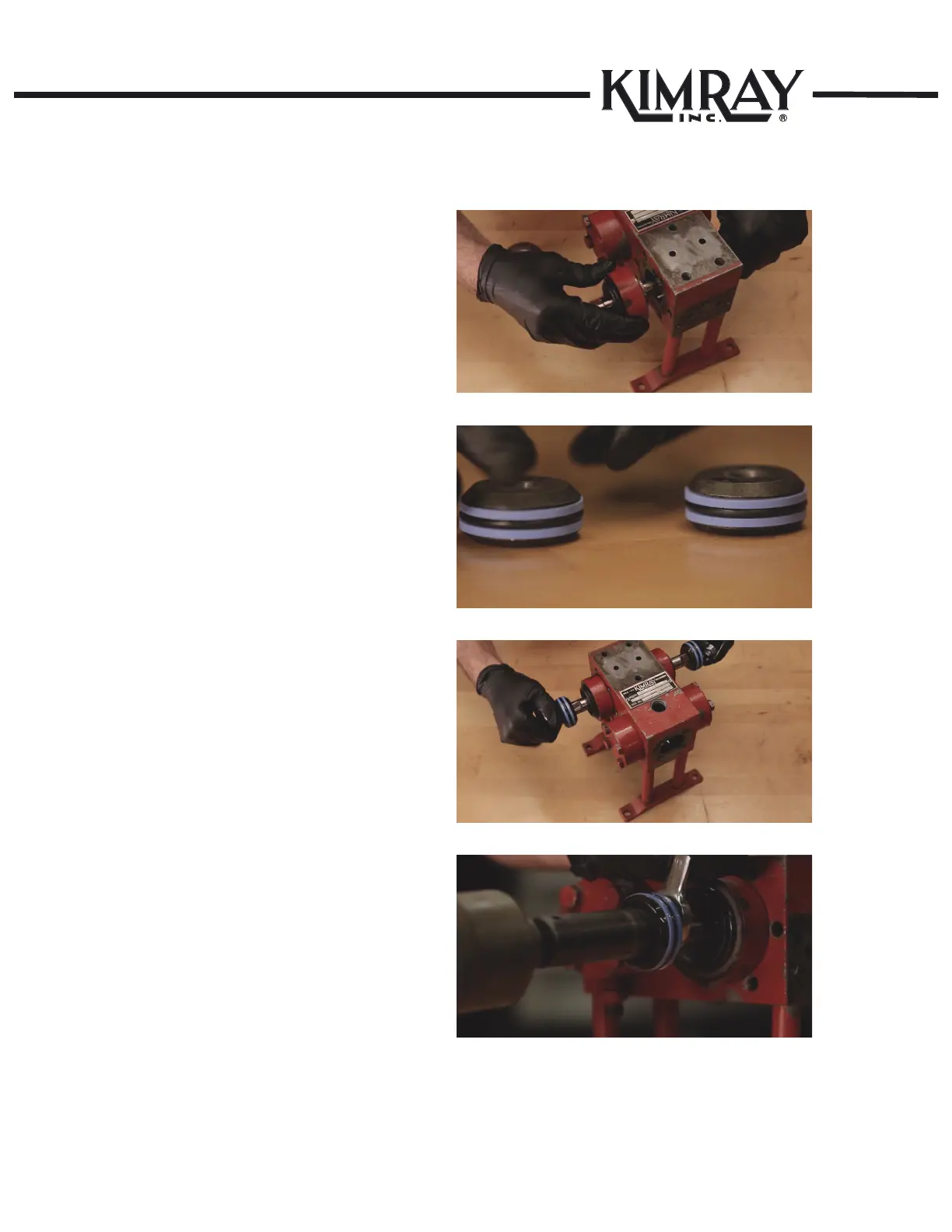

Make sure index pins are in body. Slide gland and seal
retainer assembly on piston rod and align index pin with
hole on gland (Fig. 28.3).
Repeat this on both sides of the pump.
Insert piston Rod Seal Retainer with its O-Ring and two
backups into the Piston Rod Gland (Fig. 28.4, 28.5).
Insert nut and tighten with the air gun.(Fig. 28.6).
Figure 28.4
Figure 28.6
Figure 28.3
Figure 28.5
