Kinco AX500 User Manual

7
DI3
DI4
8
DI4
DI5
9
DI6
DI6
10
DI7
DI7
11
DI8
DI8
12
COM
Common Terminal
DI Terminal Instructions
External F_24 and F_0V power supply are required when using the expansion module and the
expansion modules. DI supports bipolar wiring.

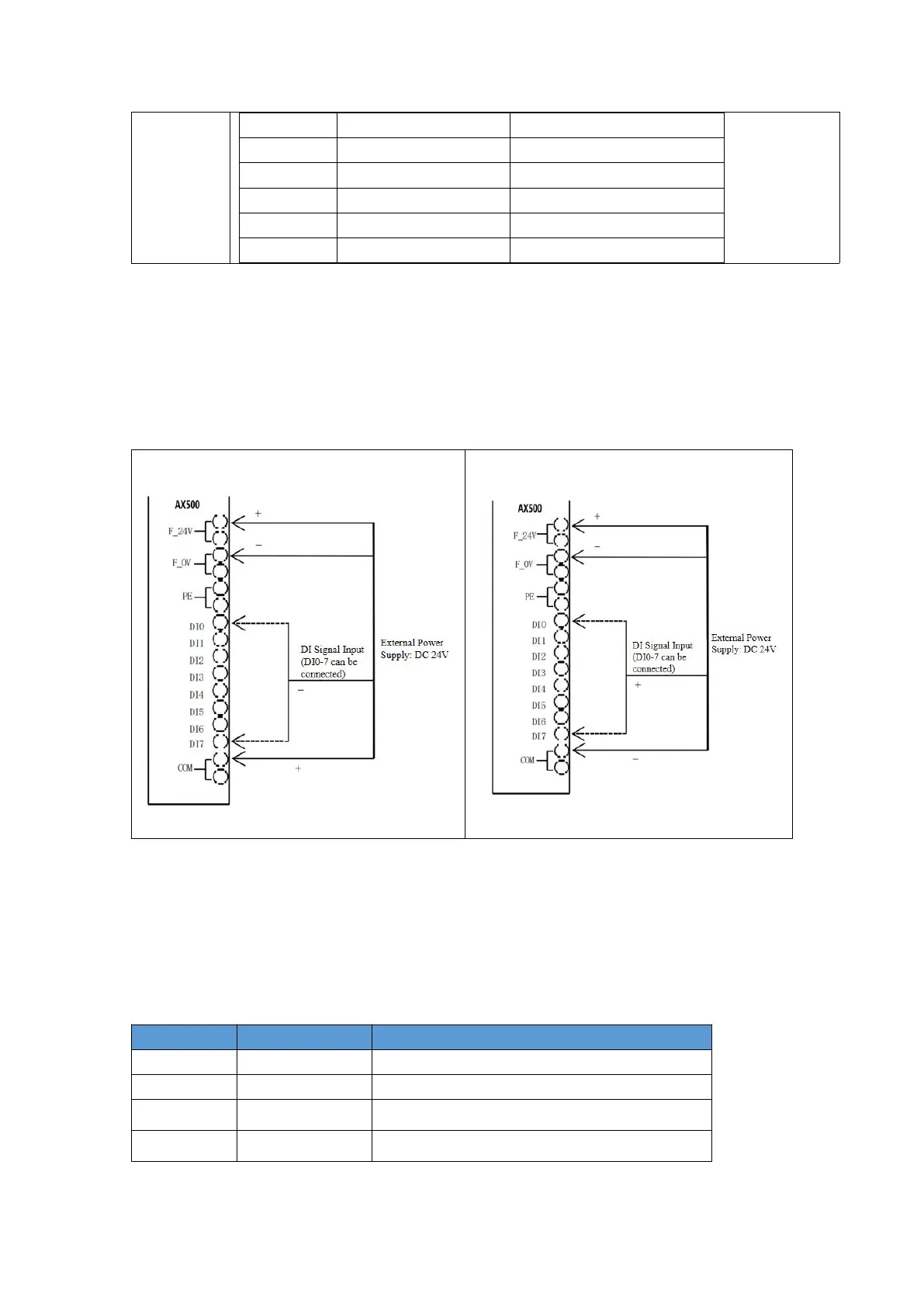

① NPN wiring as shown in the figure below:
② PNP wiring as shown in the figure below:
Function Description
1. Status Indicator Function
Name
Status
Description
PWR
Green
ON: Power On
RUN
Green
ON: User Program Startup
ERR
Red
ON: User Program Fault
BUS
Red
ON: Communication Fault

Kinco AX500 Specifications

General

Brand	Kinco
Model	AX500
Category	Controller
Language	English
