The other firebox fixing method is as follows :-
In installations where the cable method is not suitable (e.g. loose masonary in rear
of fire opening) the firebox can be secured to the fire surround using four screws

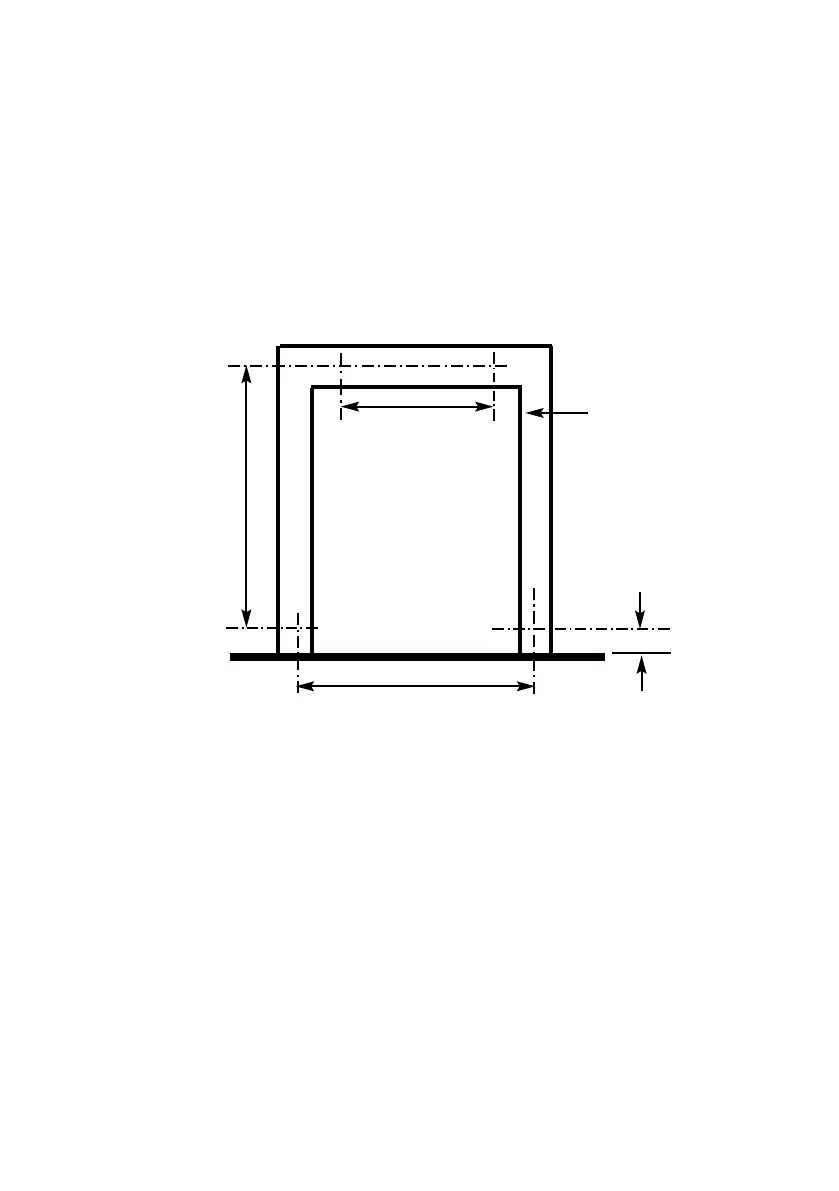

and wall plugs (not provided). Below (fig.15) is a diagram to indicate the hole cen-
tre positions available on the firebox to facilitate the screw fixing to the fireplace /
surround.
Fig. 15
18
532mm
260mm
37mm
Firebox
Mounting
Flange
425mm
