SECTION 3
ASSEMBLING FUEL BED AND COMMISSIONING
3.1 ASSEMBLING THE CERAMICS AND FUEL BED

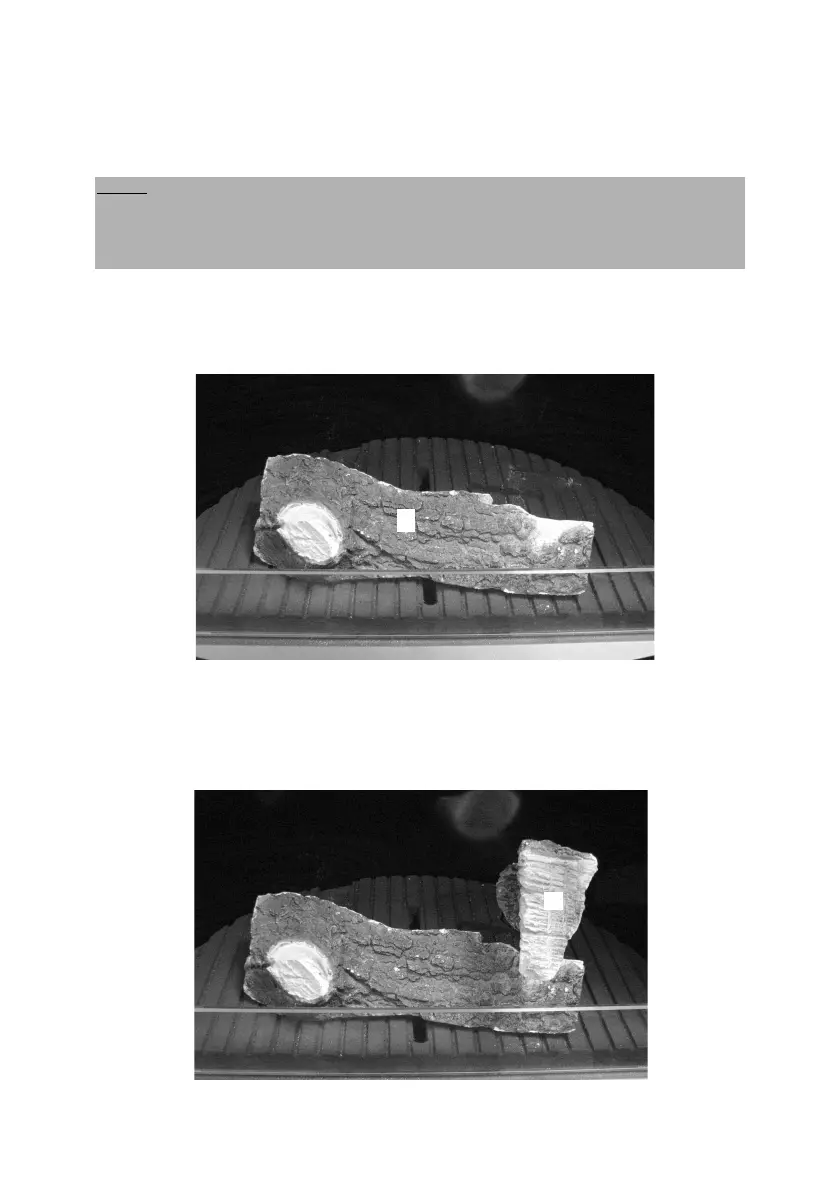

a) Place the log piece marked “A” on it’s underside in the position
as shown below in Fig. 16, ensuring the log is positioned on the cut out
provided in the ceramic base panel. See fig. 19 overpage that displays
the cut out positions for each log.
Fig. 16
b) Position the log piece marked “B” on it’s underside in the position
shown below in Fig. 17, ensuring the log is positioned on the cut out
shown in the ceramic base panel
Fig. 17
20
NOTE : The position of the fuel-bed components are critical to the
performance of the product. Therefore please ensure that the fuel-bed
components are positioned as described in the following section prior to
requesting a service call due to soot build up, poor flame pattern etc.
A
B
