Description
The device KINETEC
®

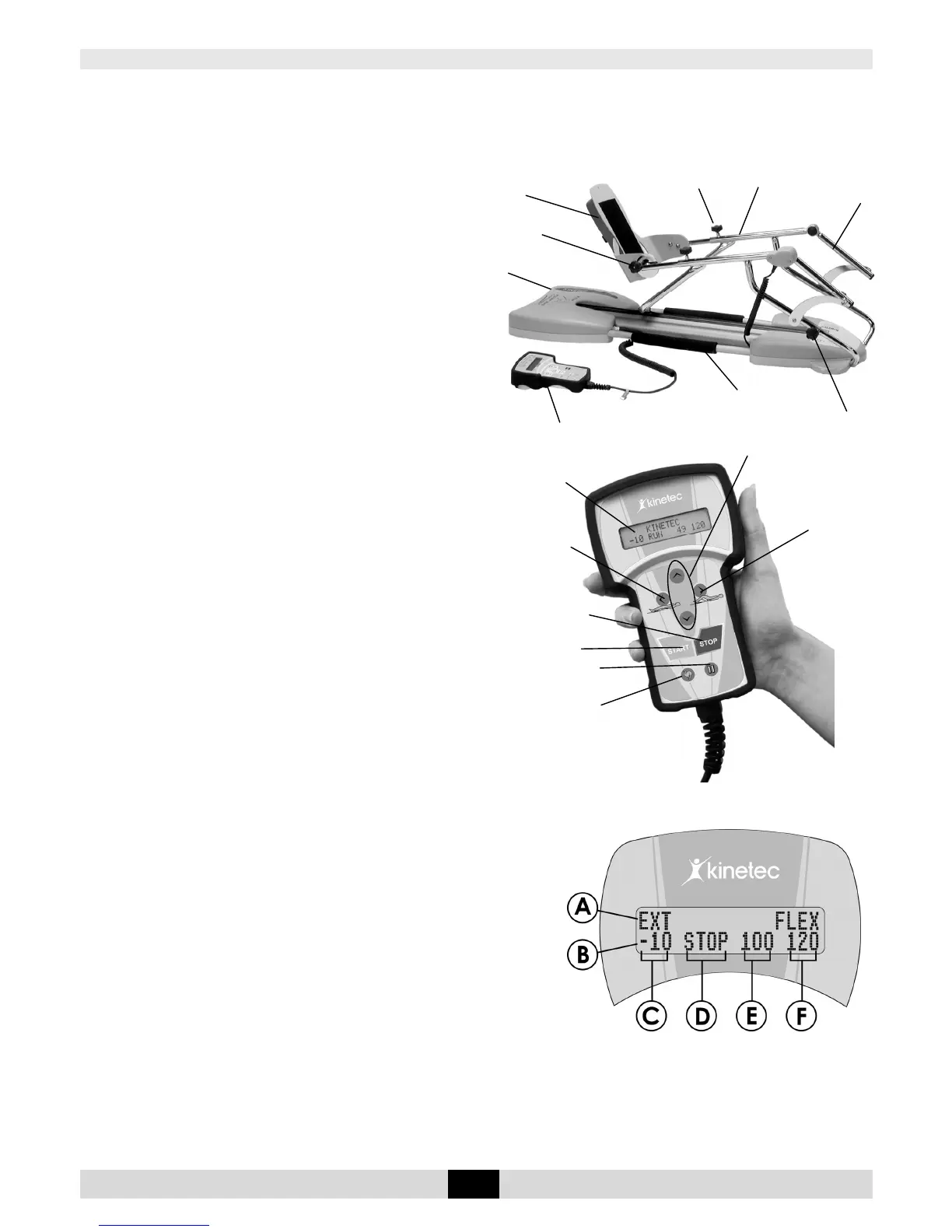

Spectra Essential machine consists of the following components:
1 • Lower limb support.
2 • Thigh support.
3 • Articulated foot plate and hand control location for
transport.
4 • Hand control.
5 • Thigh support setting lock.
6 • Lower limb support setting lock.
7 • Foot plate position setting lock.
8 • Transport handle.
9 • ON/OFF switch and fuses.
10 • Liquid-crystal display
(2 lines of 16 characters).
11 • Increase / decrease keys.
12 • EXTENSION setting key.
13 • FLEXION setting key.
14 • STOP key.
15 • START key.
16 • PAUSE key.
17 • SPEED key.
Display Details:
A • 16-character line, used to display various messages
when starting up the machine; then the display does
not change while the machine is being used.
B • 16-character line, used to display various messages
when starting up the machine; then it displays the
operational parameters.
C • 3-character area showing the extension limit.
D • 4-character area showing various messages: RUN,
STOP, EXT, FLEX.
E • 3-character area showing the real-time angle of the
knee; this value changes with the current
movement.
F • 3-character area showing the flexion limit.
