7. Mount the dome unit. Use the pre-drilled holes in the mounting feet as a guide to install the
fasteners into the roof. Use additional fasteners whenever necessary.
8. Test that the dome unit is secure by pulling upward from each foot location.
EXTERNAL WIRING
9. Plug external wire harness into wiring port on back of dome unit and tighten connection until
it clicks past the detent lock (Fig. 9).
10. Fill end of coax cable that will connect to the MAIN port on the dome unit with supplied
dielectric grease. Connect this end of the coax cable to the MAIN port and tighten
connection (Fig. 9). DO NOT OVER TIGHTEN.
If using a second (auxiliary) receiver, fill end of second coax cable and connect it to the AUX
port. Tighten connection. DO NOT OVER TIGHTEN.
Note: The installer is responsible for determining the most appropriate fastener to secure the dome unit to the roof.
Depending on the roof material, fasteners such as lag screws, well nuts, sheet metal screws, toggle bolts and
T anchors may be used, and should always be used in combination with a roof compatible sealant.
IMPORTANT! The installer is responsible for weatherproofing all holes with sealant.
Note: The King-Dome is wired for multiple receiver support. There are two coax ports on the back of the dome unit.
The one labeled “MAIN” MUST be connected to the main receiver in vehicle. This is the receiver that will
control automatic satellite switching if applicable. The one labeled “AUX” can be used for an additional receiver.
IMPORTANT! You must fill the ends of all external coax cables with the supplied dielectric grease.
Failure to do so will void product warranty.

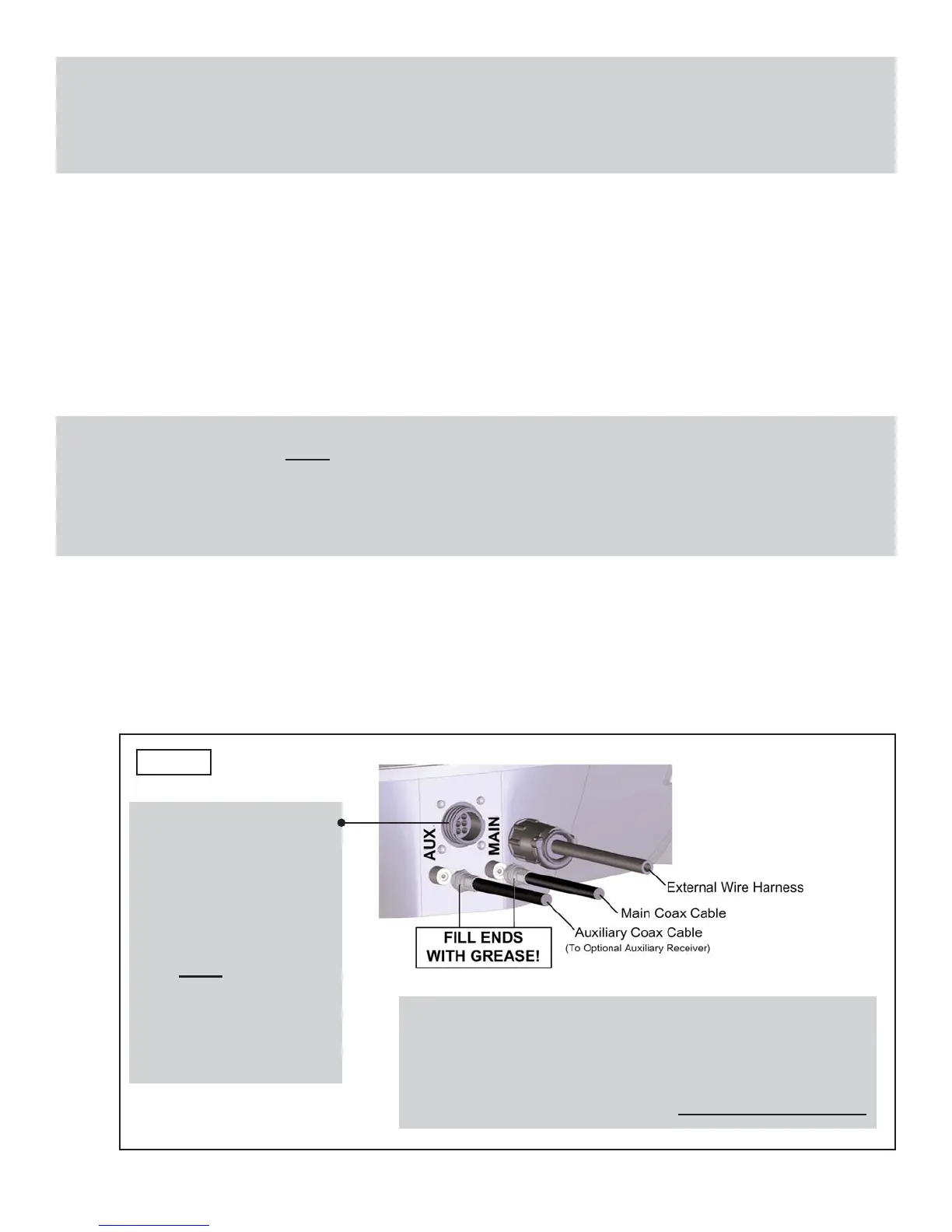

Fig. 9
IMPORTANT!
Fill ends of coax cables with supplied dielectric grease.
Failure to do so will void product warranty.
Coax connections should be snug. DO NOT OVER TIGHTEN!
IMPORTANT!
The alignment tabs on the
wiring port and the external
wire harness plug must
match up when engaging
plug onto port.
YOU MUST
TIGHTEN THE
PLUG UNTIL IT CLICKS
PAST THE DETENT LOCK.
(A channel lock pliers may
be used to tighten the
connection.)
