Page 10
INTERNAL WIRING
15. Choose your desired wiring configuration:
DIRECTV / Bell TV
(single satellite) Fig. 11, Page 11
DIRECTV / Dish Network / Bell TV
(2 or more satellites with auto switching) Fig. 12, Page 12

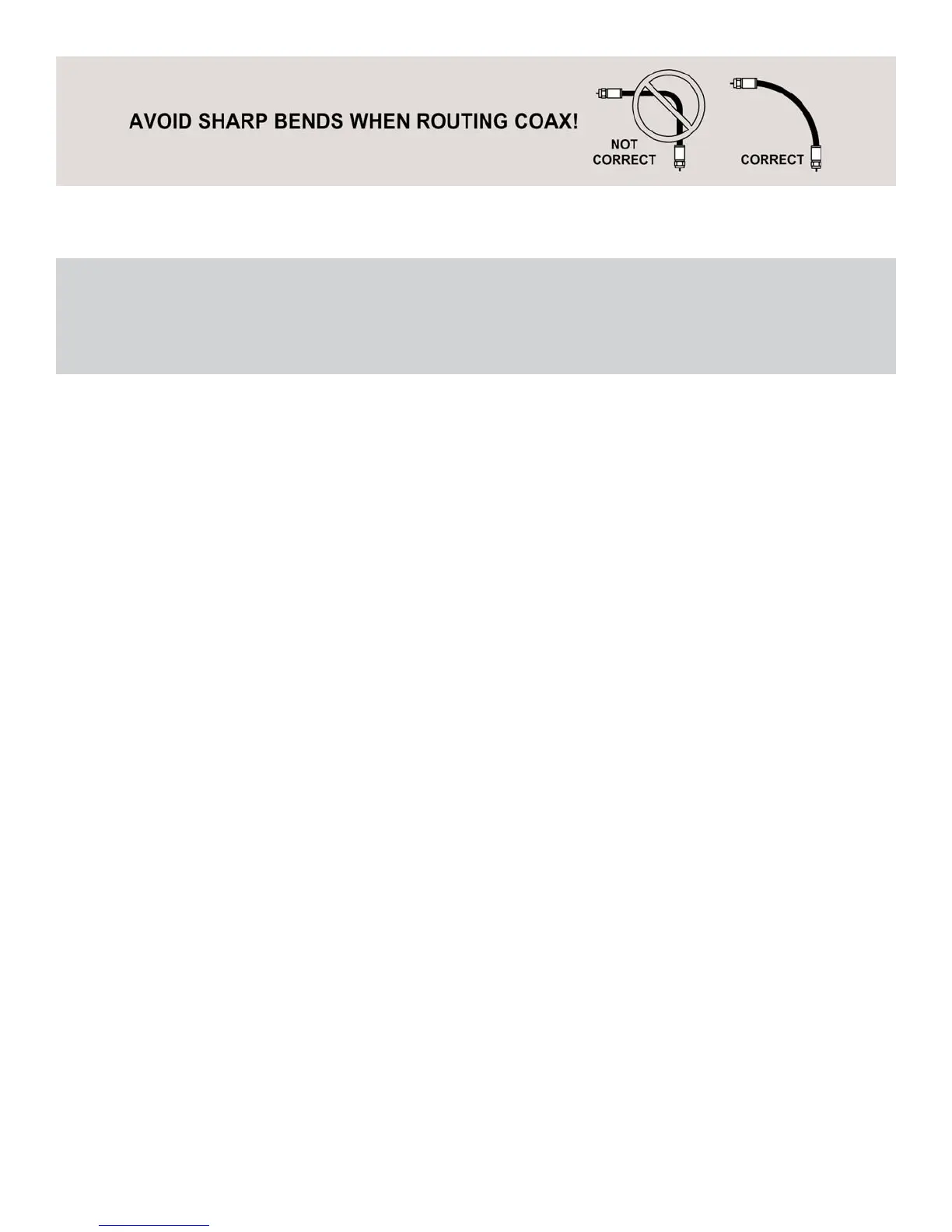

16. Inside the vehicle, make the connections as shown in the wiring diagrams, keeping in mind
the following important points:
a) The connection between the dome unit and the receiver must be a direct connection
with no devices in between.
b) Power connection must be a non-shared circuit. Excessive current draw on the circuit
will cause the unit to operate improperly. Power and ground connections must be made
after the wires are connected to the dome unit.
c) If fusing the circuit, the fuse must be rated at 7.5 amps.
d) HDTV receivers require HDMIor component video/audio cable connection to TV
(sold separately).
17. When installation is complete, go to Section 4, ANTENNA CONFIGURATION on page 13.
Note: Using multiple receivers is not recommended for multi-satellite services where automatic satellite switching is
desired.
Components and wiring supplied with the 9754/9754-LP are shown in black.
Existing components and wiring or those sold separately are shown in gray.
