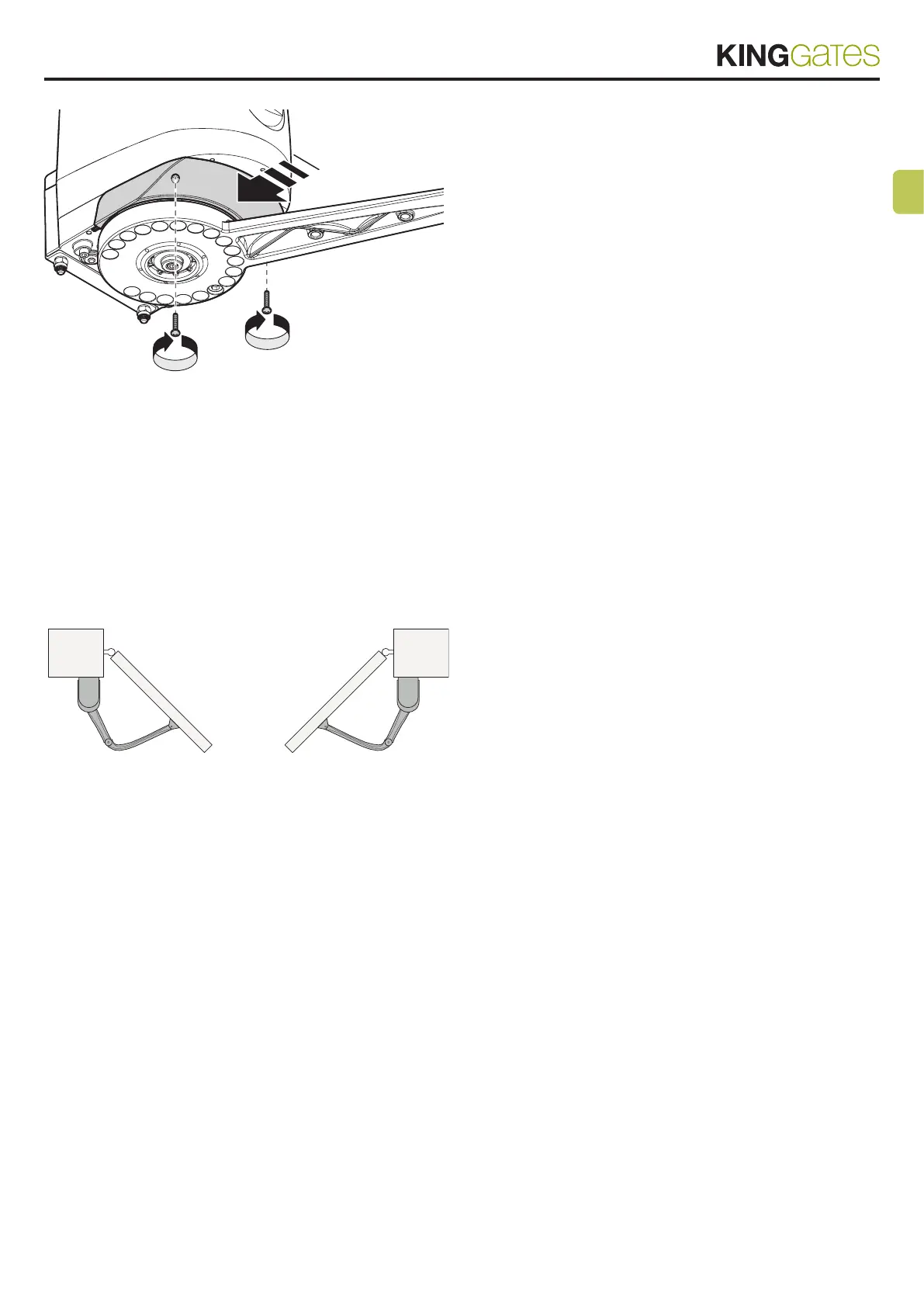

08. ReplacethecoverandtightenthetwoscrewsFig. 19;
Fig. 19
09.Finally,securethegearmotorbyturningthereleasekey;
10. For the assembly of the second motor, carry out the same
operationsproceedinginreverseorderfortheadjustmentofthelimit
switches;
11. After installing and adjusting the motors, position the leaves
halfway along their stroke so that, after making the electrical
connections, they can learn the opening and closing procedures
correctlyFig. 20.
Fig.20
