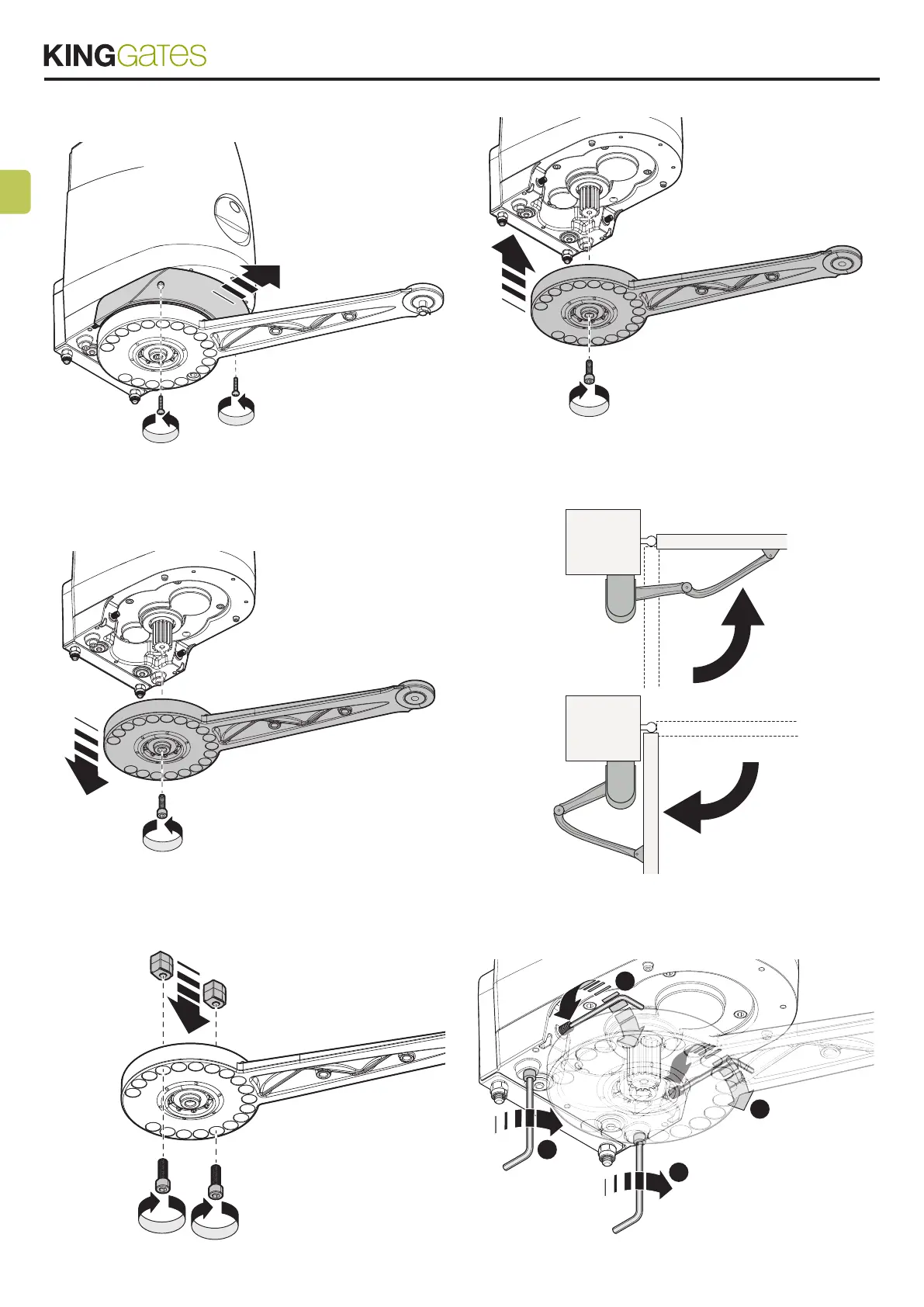

02. Remove the 2 screws underneath the motor and remove the
coverasshowninFig. 13;
Fig. 13
03.Unscrewthescrewinthemotorarmandremoveitasshownin
Fig. 14;
Fig. 14
04.FixthelimitswitchesonthemotorarmFig. 15;thesemustalso
beinstalledinthepresenceofmechanicalstopsontheground.
Fig. 15
05.Atthispointre-installthearmontothemotorFig. 16;
Fig.16
06. Manually verify that, when opening and closing, the gate leaf
stopsatthedesiredpointsFig. 17;
Fig.17
07.Byscrewingorunscrewingthetwoscrews(A)onthemotor,the
twolimitswitchescanbeadjusted;then,usingthetwoscrews(B)
blockthetwoadjustingscrews(A) Fig. 18;
A
A
B
B
Fig. 18
Closing
Closing
Opening
Opening
Closing
Opening
