ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED:
SCREWDRIVER, TORQUE WRENCH or ADJUSTABLE WRENCH, LEAK TESTING SOLUTION
Parts List (CS29 and CS42):
(1) Cooker Frame
(1) LP Hose/Regulator
(4) Legs
(1) Windguard Shield
(1) Manifold Assembly
(2) Manifold Support Brackets
- (2) Long “Bent” Brackets
- (2) Short Brackets
- (8) Bolts, Lock Washers and Nuts
(1) Storage Locking Bracket and Bolt (see page 18)
CS29 - CS42 -
(2) Castings/Air Shutters (3) Castings/Air Shutters
(2) Deep Fry Thermometers (3) Deep Fry Thermometers
1) Review the contents in your package. Make sure all listed components for your model are
included.
2) Install the four legs into the top frame as pictured below. Snap in leg bolts through the receiving
holes on the frame. Make sure the leg bolts pop completely out and legs are securely locked in
position.

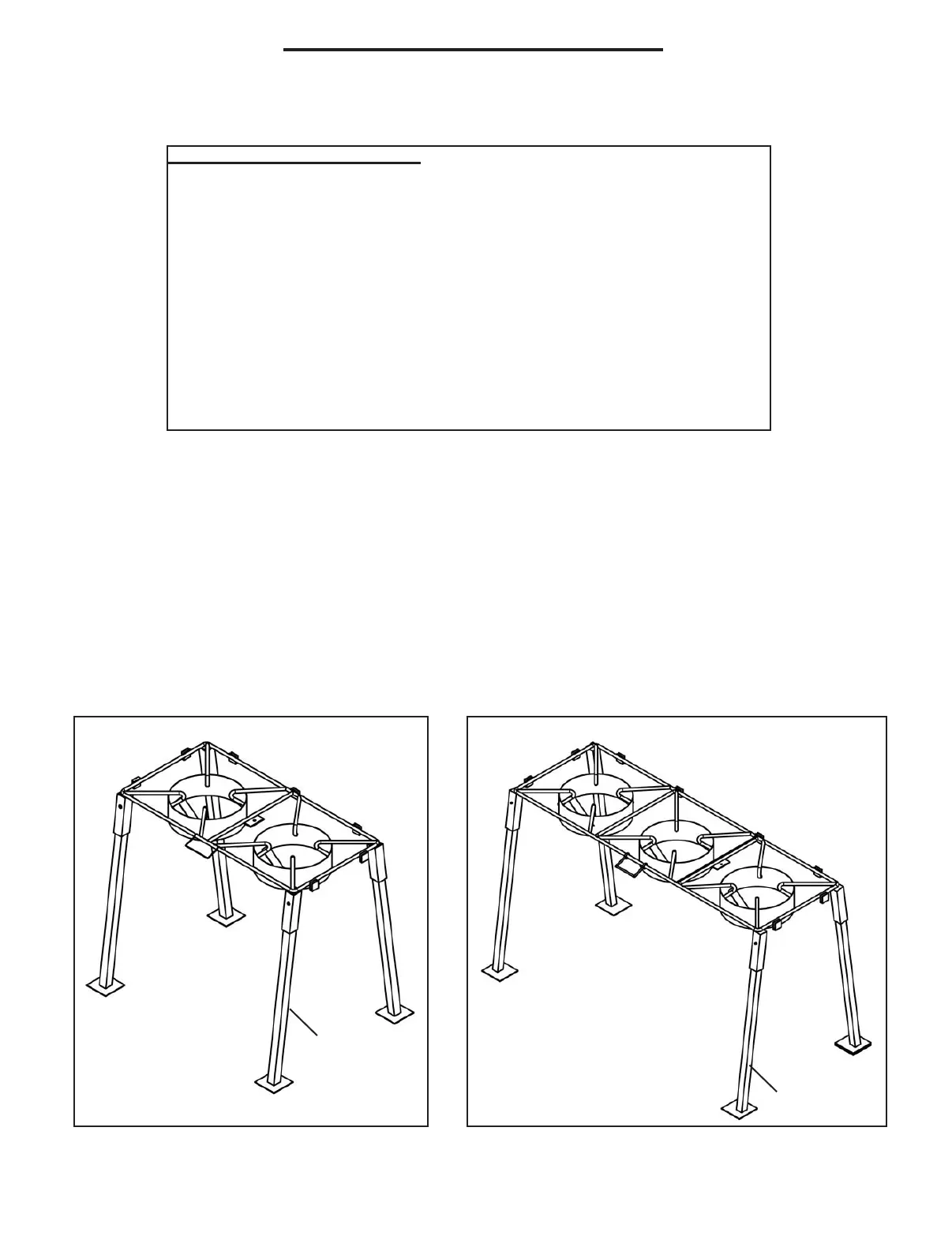

FIGURE 1 - CS29 FIGURE 2 - CS42
*Model May Vary
From Picture
*Model May Vary
From Picture
Leg
Leg
To Next Page
