In more detail . . .
9. Use a depth gauge
measuring instrument
to check the height of
the depth gauge. Depth
gauge measuring jigs
are available from
most reputable tool
merchants (Fig. 49).
Air lter
Inspect the air lter (6b) regularly. Clean or replace it with a new one if necessary.
1. Pull the locking lever on the back cover and remove the back cover (6) (Fig. 50).
2. Loosen the xing screw and remove the air lter (6b) (Fig. 50).
3. Split the air lter into its two parts and tap it on a stable surface to remove dust. Use
compressed air (max. 3 bar) to remove stubborn dust.
4. Reassemble the two parts and ret the air lter. Ret the back cover and secure it
with the locking lever.
NOTE: Ensure the rubber seal between the carburettor and the air lter is
clean and tightly ts in place.
50
6b
6

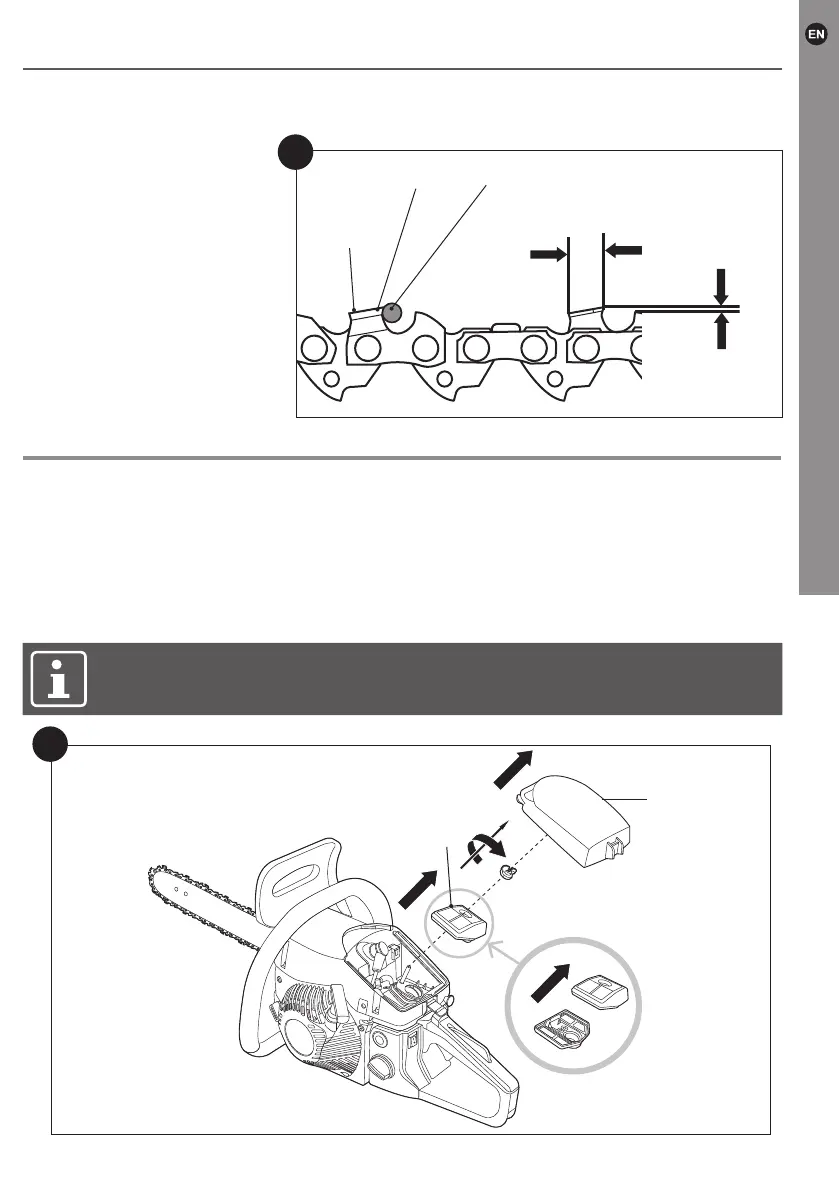

49
Cutting tip
Top plate
Depth gauge
setting 1.27 mm
(0.05")
File position
Cutting length
