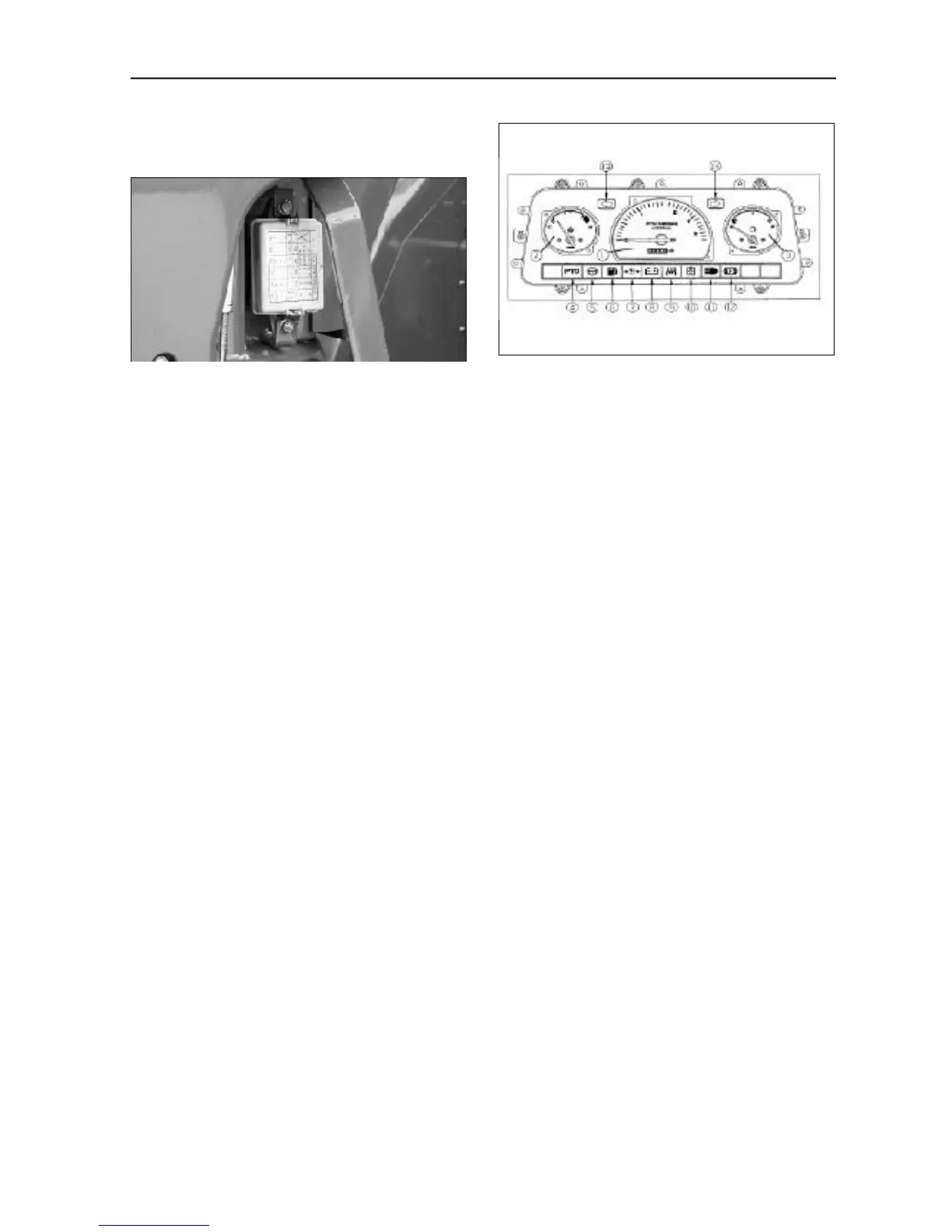

- Fuses
There are fuses in the fuse box to safeguard the
electric circuit.
- Fuel Thermistor
If fuel lamp goes out, stop engine and refill fuel tank.
- Fuel Gauge
Fuel gauge indicates the amount of fuel. Be careful
to refill the fuel tank before it becomes empty. Once
the fuel tank becomes empty, it will be necessary to
bleed the fuel system before the engine will start.
- INSTRUMENT GAUGE
(1) Trachometer
(2) Temperature gauge
(3) Fuel gauge
(4) P TO ON Indicator
(5) Coolant level warning lamp
(6) Fuel tank level warning lamp
(7) Engine oil pressure warning lamp
(8) Battery charge warning lamp
(9) Grow plug indicator
(10) Hydraulic filter warning lamp
( 11) Upward indicator
(12) Parking brake indicator
(13,14) Turning signal indicator
