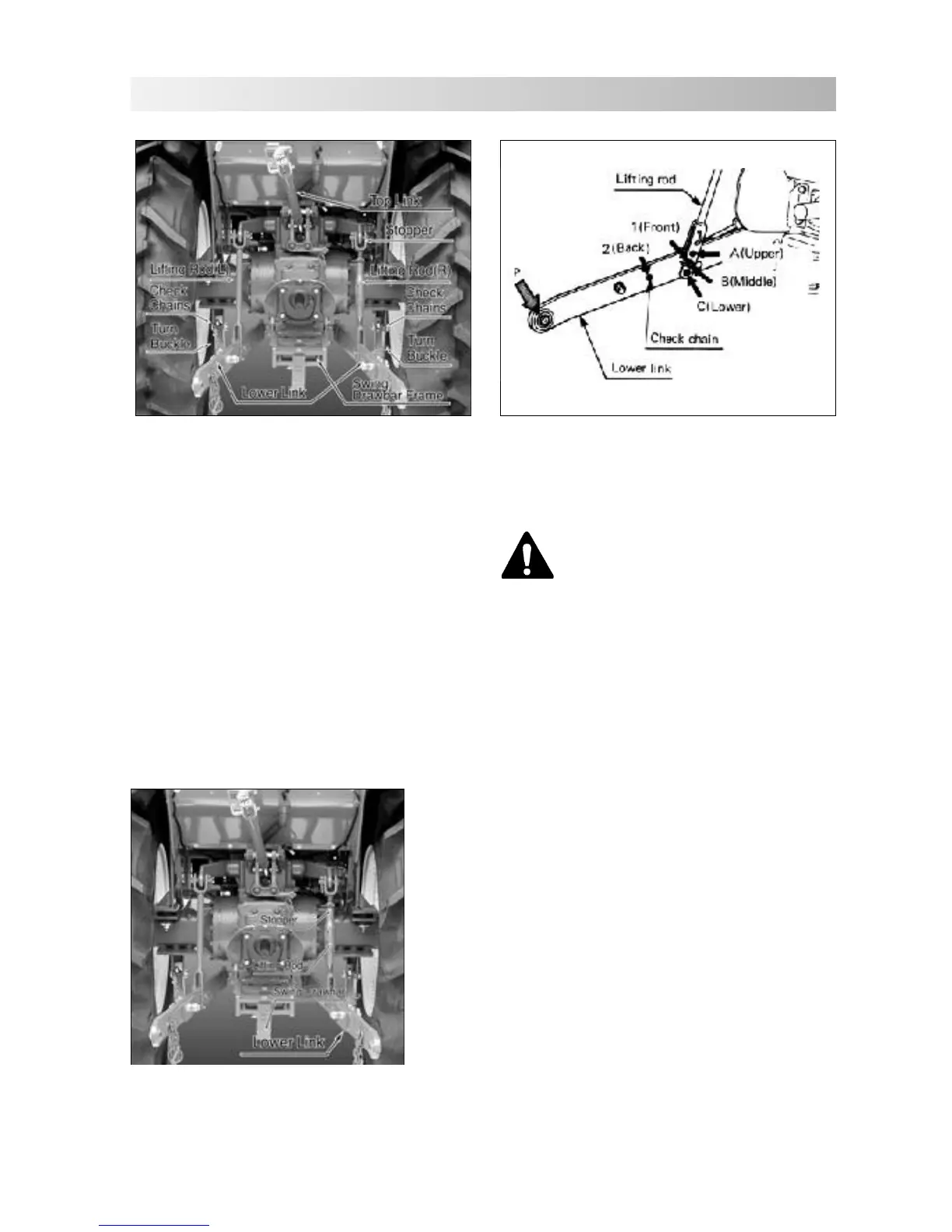

- Adjustment of Top Link
1. Adjust the angle of the implement to the
desired position by shorting or lengthening the
Top Link.
2. The fixing position of the top-hitch varies
according to the type of implement being used.
- Adjustment of Lifting Rod
1. Adjust the position of the implement evenly by
moving the lifting rod.
2. After the adjustment is completed, secure with
the stopper.
3. Correct positioning of the lifting rod to the
lower link is shown below. Positioning varies
dependent upon the type of implement.
CAUTION :
• Never use lower link 2(Back) hole.
5. Three-point Hitch & Drawbar
•Before disconnecting a lift rod from the lower
link, stop the engine and lower attached
equipment to the ground. Ensure attached
equipment is correctly supported and that on
residual pressure remains in the hydraulic
system before removing the lift rod securing
pin. Move the hydraulic lift control lever fully
backward and forward serveral times, in order
to remove any residual pressure, then move
the lever fully forward.
WARNING
