- 3-Point Hitch Lowering Speed
When lowing the implement, it operates smothly.
- Hydraulic Block Type Outlet
Hydraulic block type outlet is useful when adding
hydraulically operated equipment such as: front
end loader, front blade, etc.

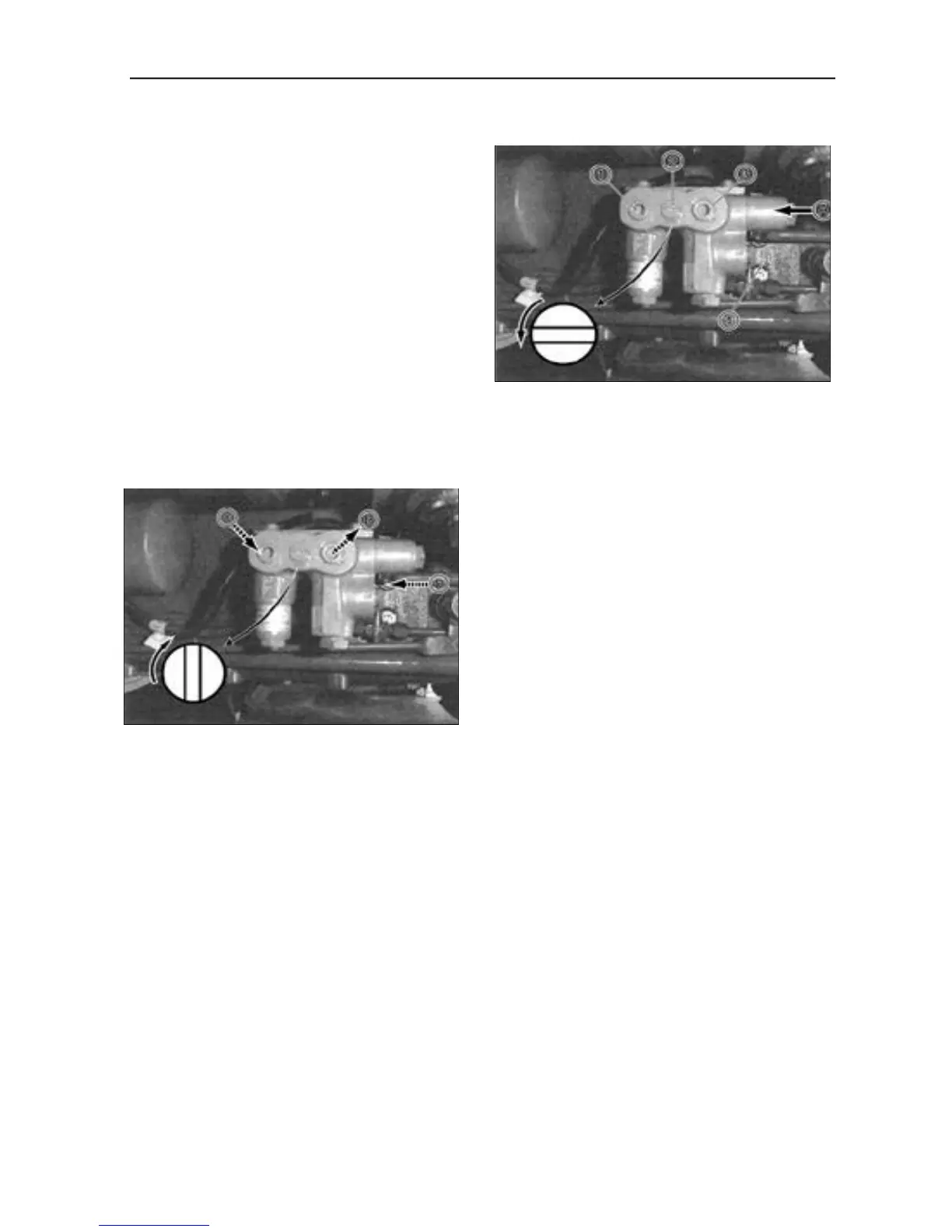

When implement is attached
Remove the plugs.
(1) Route the implement inlet, outlet, and return
hoses as shown in the illustration.
(2) Move the control screw groove to “Ve r t i c a l
position” when implement is attached.
(B) To the implement (Outlet)
(C) From the implement (Inlet)
(D) From the implement (Tank port)
Max flow : 7.4 gals./min (31 L/min)
Max pressure : 17.2 MPa (175 kgfcm
2
, 2500psi)
When implement is not attached.
(1) Inlet(plug) (A) From the gear pump
(2) Control screw
(3) Outlet(plug)
(4) Tank port(plug)
I M P O RTANT :
• To prevent overheating and damage to the
hydraulic system once an implement is
detached, be sure the control screw is turned
back to the “Horizontal position”
To Next Page
