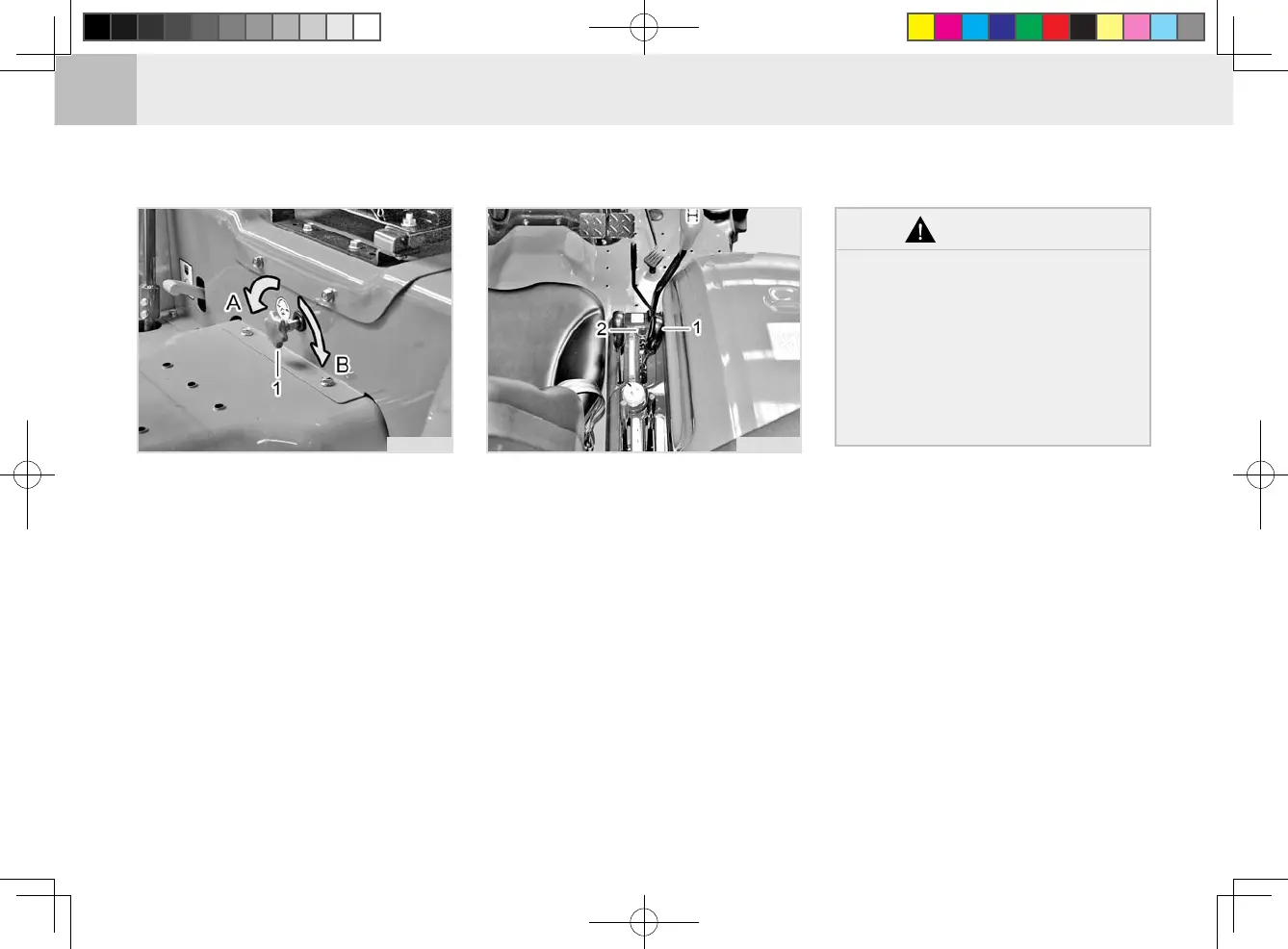

(1) Lowering Speed Control Lever
(A) High speed (B) Low speed
6. The lowering speed of the lower
link is proportional to the applied
weight but can be controlled by
adjusting the draining passage of
the hydraulic uid. (See “Lowering
speed control valve of lifting arm”
on Page 4-32)
td2O455a
(1) Position Control Lever
(2) Lock Bolt
7. The lower limit of the implement’
s height can be set by limiting the
movement of the control lever by
the lock bolt.
td2O521a
WARNING
If trying to lift an object with
excessive weight by the 3-point
hitch while the tractor is not
equipped with proper front suit
case weights, the front wheels
may be lifted instead, leading
to roll over. Make sure to follow
the specications for use.
•
