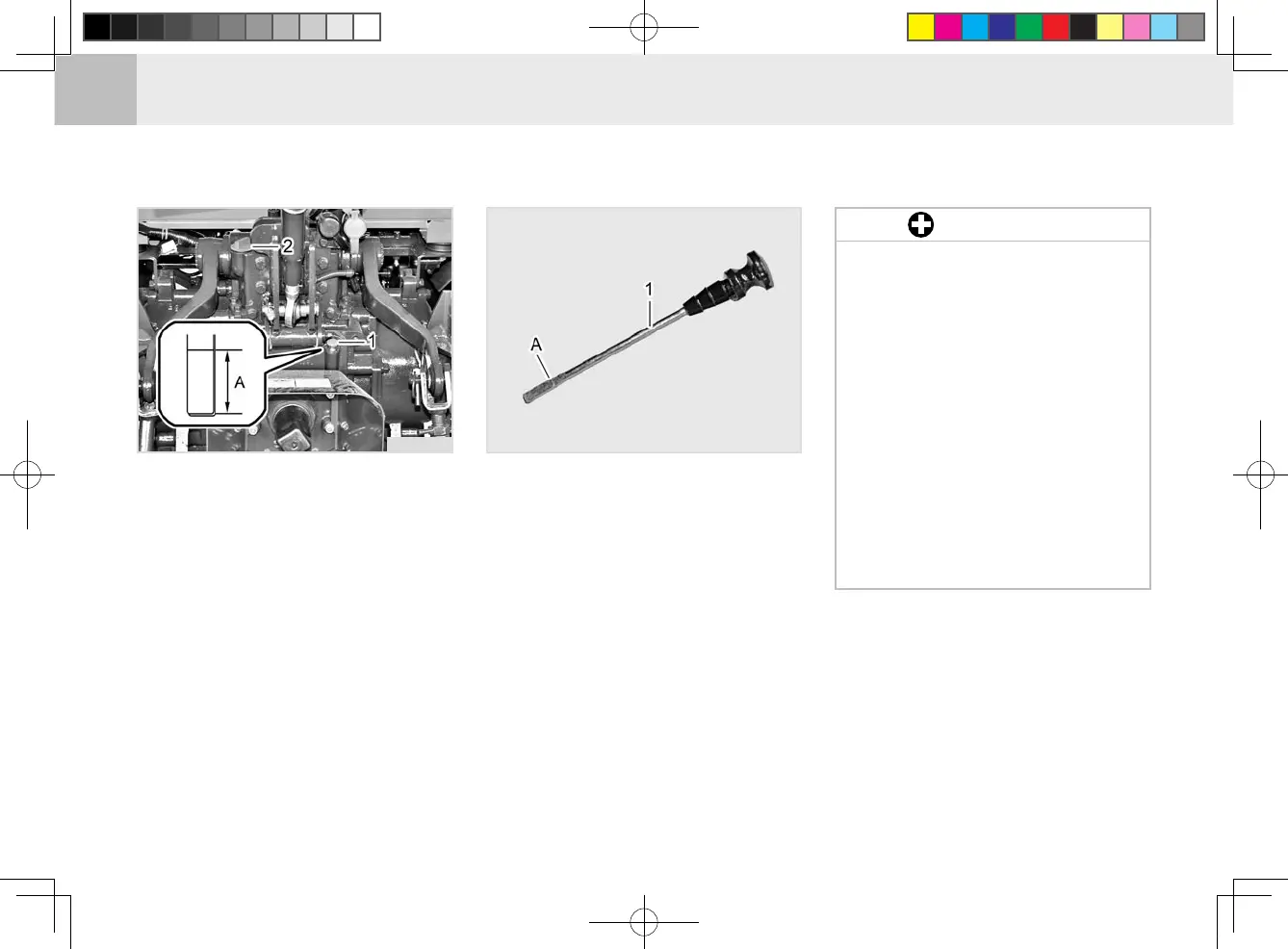

CHECKING TRANSMISSION FLUID LEVEL (D)
(1) Oil Dipstick (2) Oil Filler Plug
(A) Oil Level Is Acceptable Within This Range
1. Park the tractor on a level ground
and lower the implement.
2. Make sure the parking brake is
set.
3. Set all shift levers into the neutral
position.
4. Stop the engine.
5. Pull out the oil dipstick, clean it,
and then insert it into its original
position. Then, pull it out again and
check if the oil level is within the
specied range.
6. If the oil level is too low, add some
new oil so that the level is within
the allowable range.
(1) Oil Dipstick
(A) Upper Limit
IMPORTANT
If oil level is low, do not run
engine.
Never add the oil over the up-
per limit.
Be sure to check the oil level
after installing hydraulic imple-
ment. Add the uid as needed.
Check the oil level with the
cylinders of an implement ex-
tended and check again with
cylinders retracted. Add the
oil to adjust average oil level
in the range of the oil limit.
(Upper or lower)
•
•
•
•
To Next Page
