M55O626A

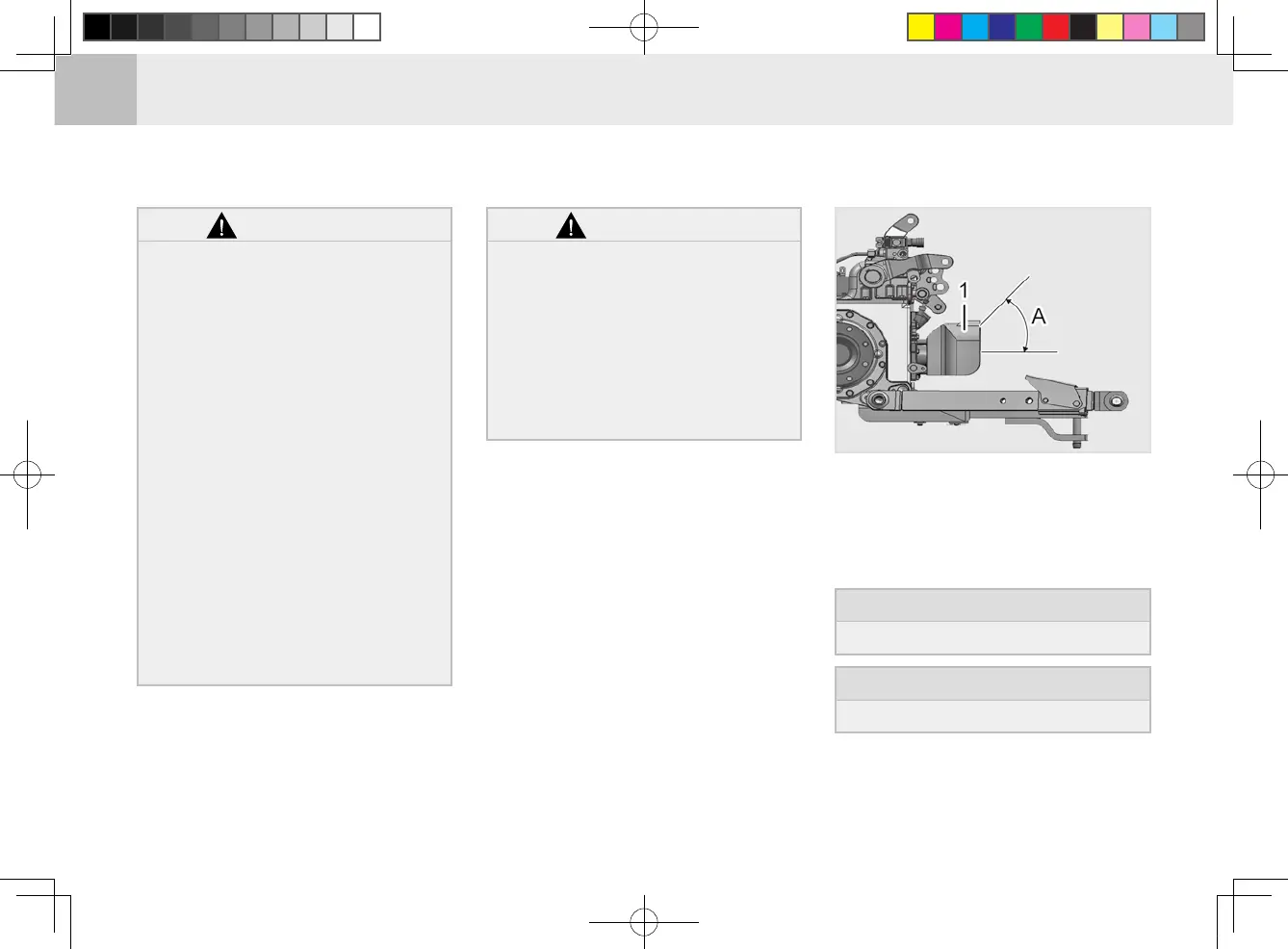

Refer to the chart below as to instal-
ling of an universal joint.
(1) PTO Cover
(A) Allowable Angle Of Universal Joint: 50˚
Allowable angle of universal joint
50˚
The type of PTO shaft
SAE 1-3 / 8" 6 splines
WARNING
Make sure that the PTO safety
cover is in its position before
driving the PTO shaft.
Never go close to the rotating
PTO or tractor PTO shaft. A
severe accident can happen.
Before driving an implement
through the PTO, always make
sure that all bystanders are
well away from the tractor.
When using the PTO drive with
a stationary tractor, always
make sure that the gears are
in neutral and that the parking
brake is applied.
The tractor PTO and PTO shaft
should not be interfered by
any surrounding parts.
•
•
•
•
•
WARNING
Before starting up any PTO-
driven implement hitched to
the three-point linkage, lift the
implement to its full height
and check that at least 1/4 of
the total length of the telesco-
pic section of the drive shaft
is engaged.
•
