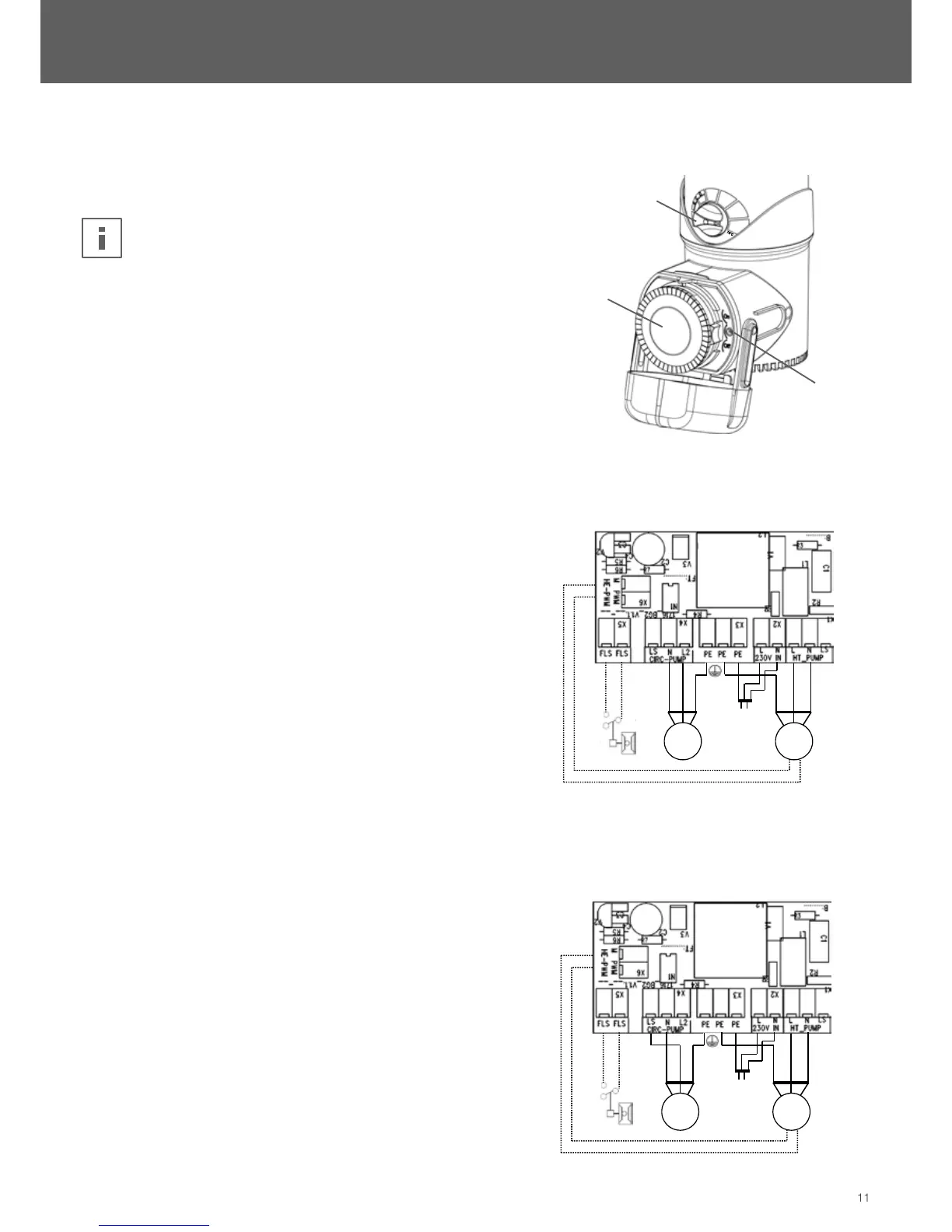

Operating modes of circulation unit
Circulation shutdown temperature
The circulation will be deactivated when the shutdown temperature is reached.
The preset temperature at the temperature dial (A) must be at
least 10 K below the set temperature at the Fresh Water Station to avoid
non-stop operation of the circulation unit
Set the temperature dial to the desired temperature.
Manual deactivation of circulation unit
Set operation mode selector ( C ) to “OFF”.
70°C
A
B
C
Circulation unit
Connector assignment pulsed circulation
Pulsed circulation
The circulation unit is activated by a short actuation of a
hot water tapping point
Set operation mode selector (C ) to “ON”.
Connector assignment time-dependent circulation
Time-dependent circulation (factory presetting)
Set the switching times of the circulation unit with
on the timer clock (B)
Set operation mode selector (C) to “TIMER”.
Circ
HE
~
=
=
~~
2
35
1
4
Circ
HE
=
~
=
~~
2
35
1
4
A Temperature dial
B Timer clock with switching segments
C Operation mode selector
1 Power supply (230 V / 50 Hz)
2 Flow-Switch (FLS)
3 Charge pump Fresh Water Station (HT PUMP)
4 PWM signal HE pump
5 Circulation pump (CIRC PUMP)
1 Power supply (230 V / 50 Hz)
2 Flow-Switch (FLS)
3 Charge pump Fresh Water Station (HT PUMP)
4 PWM signal HE pump
5 Circulation pump (CIRC PUMP)
Timer clock switching segments (B) Circulation unit status
Up Activated
Down Deactivated
