InstallatIon and InstructIon manual FRESH watER Station
7
E & OE, subject to change without notice.
90°
90°
45°
Installation
Material damage
Avoid tightening torque and force effects on already installed parts and connections of the device.
Regulation
TheFreshWaterStationincludesaself-sufcientregulation.Anadditionalexternalregulationisnotintendedandnotallowed.

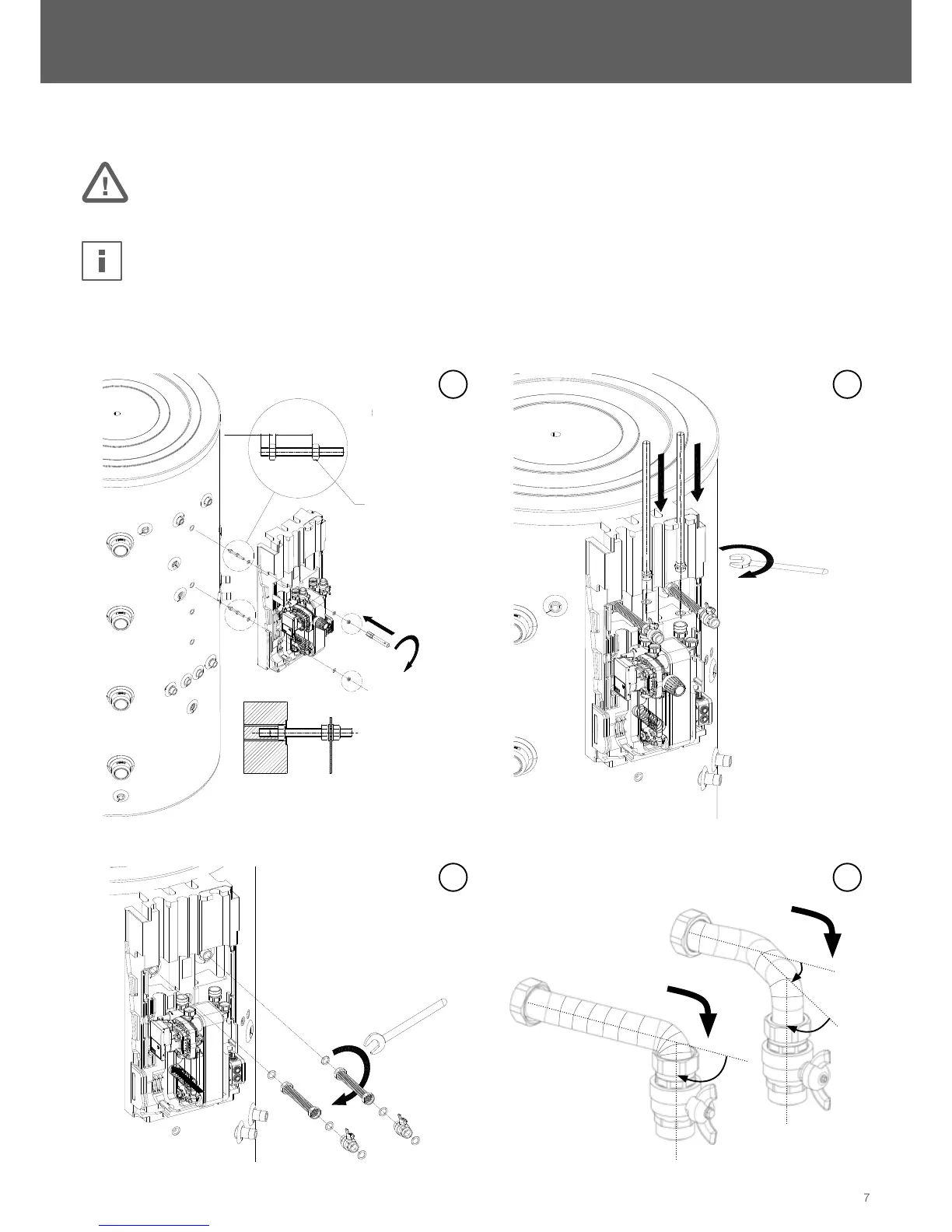

Installation on buffer tank
1
2
3
4
Installation of Fresh Water Station Installation of water piping
Shaping of exible hosesInstallation of connection set
Schnitt A-A
M1 : 1
AA
ca. 10 ca. 40
max. 10 Nm
A
1
max. 70 Nm
2
max. 70 Nm
3
