Kipor IG3000E Operator's Manual

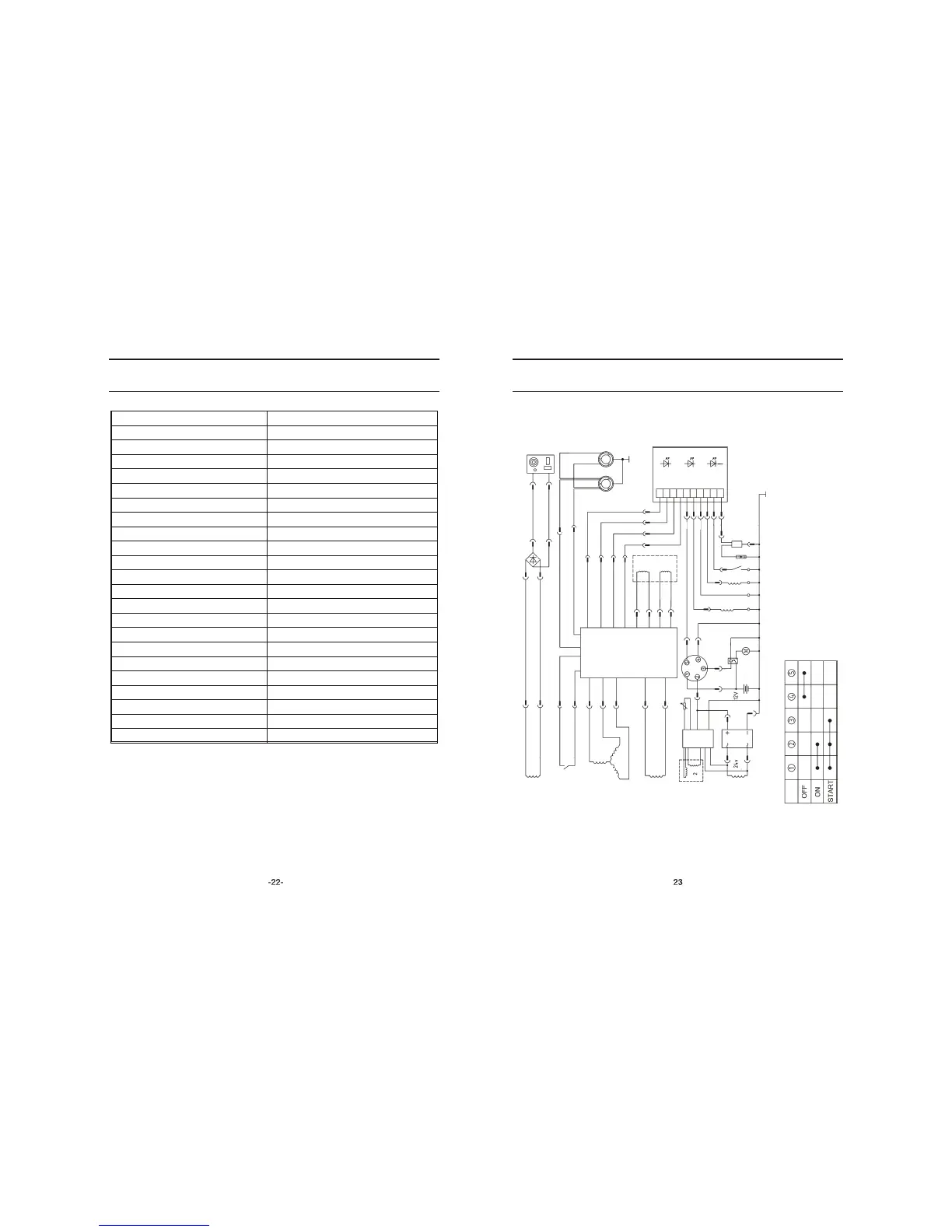

10. SPECIFICATIONS
Model
Type
Rated Voltage
Frequency
Maximum Output
Rated Output
DC Output
Engine Model
Engine Type
Displacement
Compression Ratio
Engine Speed
Cooling System
Ignition System
Oil Capacity
Fuel Tank Capacity
Rated Load Run Time
Noise Level- no load-full load @ 23' (7m)
Spark Plug
Length
Width
Height
Weight
Inverter
120
60 HZ
3000W, 25A
2800W, 23.3A
12V@8.3A
KG205
4 stroke, overhead valve, single cylinder
12.0 cu in (196 cc)
8.5:1
3600 rpm with smart throttle off
Forced Air
Transistorized
.57 qt (0.6L)
2.5 gal (9.5 L)
5.6 hrs
70-74 dB
F6RTC
15.75 in (400 mm)
19.3 in (490 mm)
16.9 (430 mm)
77 lbs (35 kg)
11. ELECTRICAL WIRING DIAGRAM
--
DC Receptacle
Charging
winding
Blue Blue
Blue
Blue
Rectify Bridge
Red
Black
Red
Black
Green
Green
Black
White
Brown
Gray
Yellow/Green
Inverter
Yellow
Orange
Blue
Pink
Stepping motor
Smart Switch
Red
Red
Black
Main winding
White
White
Sub winding
Black
White Brown Gray
Red
Green
Yellow
Orange
Blue
Yellow/Green
Red
Green
Yellow/Green
Yellow
Orange
Blue
Yellow/Green
Spark plug
Low oil Switch
Green
Signal phase receptacle
Working indication
Overload indication
Low oil indication
High-pressure package
Ignition winding
Trigger winding
Black
Black
Stepping motor
Choke
valve
controller
Temperature sensor
Electric door lock
Starting motor
DC contactor
Red
Black
Yellow
Blue
Winding
Charging
adjuster
Flameout
Purple
Purple
IG3000E

Kipor IG3000E Specifications

General

Type	Inverter
Engine Model	KG205
Engine Type	4 stroke, overhead valve, single cylinder
Displacement	12.0 cu in (196 cc)
Compression Ratio	8.5:1
Cooling System	Forced Air
Ignition System	Transistorized
Spark Plug	F6RTC
Rated Voltage	120
Frequency	60 HZ
DC Output	12V@8.3A
Maximum Output	3000W, 25A
Rated Output	2800W, 23.3A
Engine Speed	3600 rpm with smart throttle off
Rated Load Run Time	5.6 hrs
Oil Capacity	.57 qt (0.6L)
Fuel Tank Capacity	2.5 gal (9.5 L)
Noise Level- no load-full load @ 23' (7m)	70-74 dB

Weight and Dimensions

Length	15.75 in (400 mm)
Width	19.3 in (490 mm)
Height	16.9 (430 mm)
Weight	77 lbs (35 kg)
