12. WHEEL KIT
The unit comes with the rubber mounting feet installed. If you wish to install the wheel kit, please
perform the following procedure.

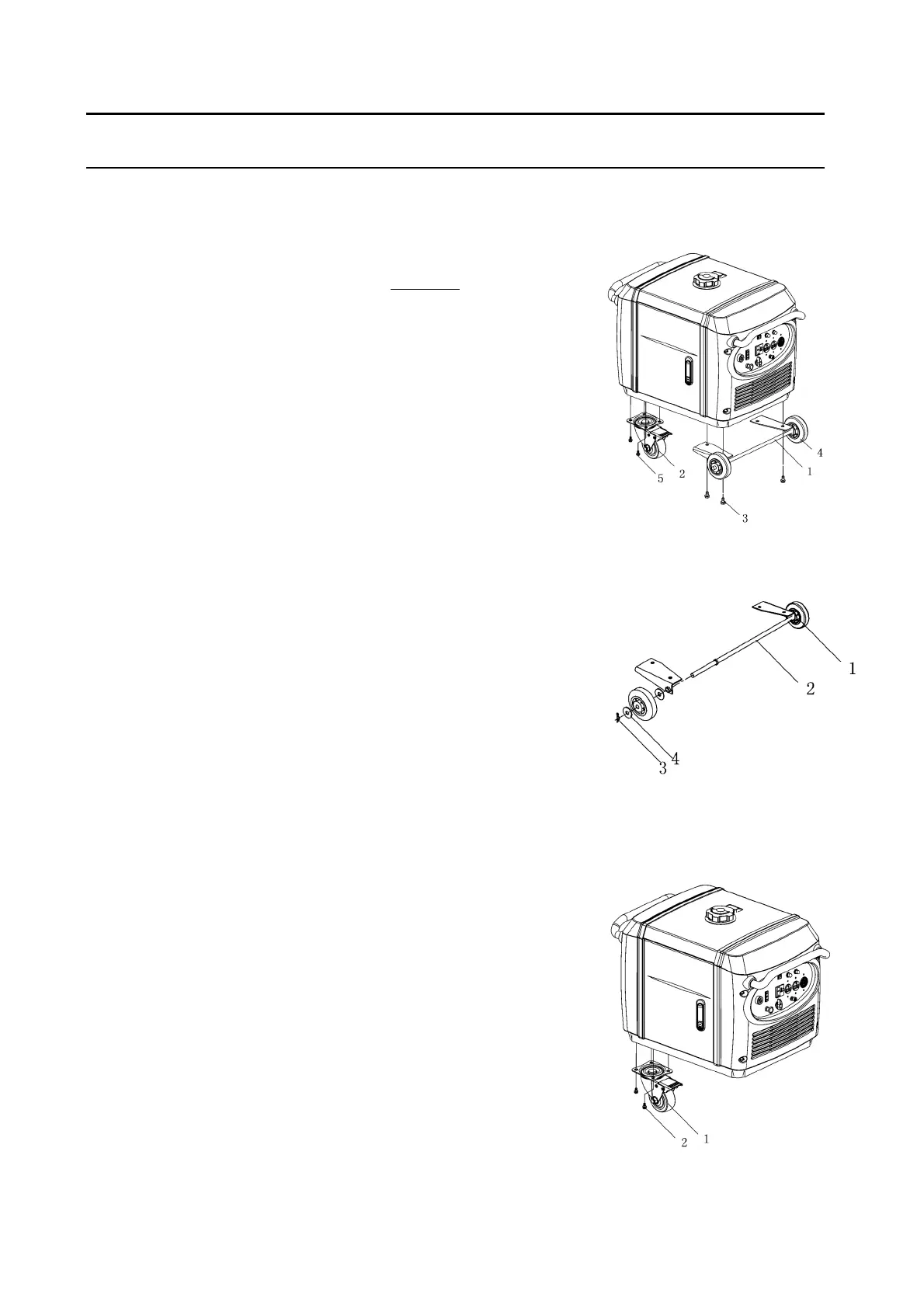

Wheel Kit
1. Axle assembly (1)
2. Locking swivel wheel (2)
3. Bolt M8X16 (4)
4. Wheel (2)
5. Bolt M6X16 (8)
A. Wheel assembly:
First remove all four rubber mounting feet.
Put a washer on each side of the wheel then slide them on the axle
securing with a lock pin.
1. Wheel (2)
2. Axle (1)
3. Lock pin (2)
4. Washer (4)
B. Locking swivel wheel.
Secure each locking swivel wheel with 4 M6X16 bolts.
1. Locking swivel wheel
2. Bolt M6X16
