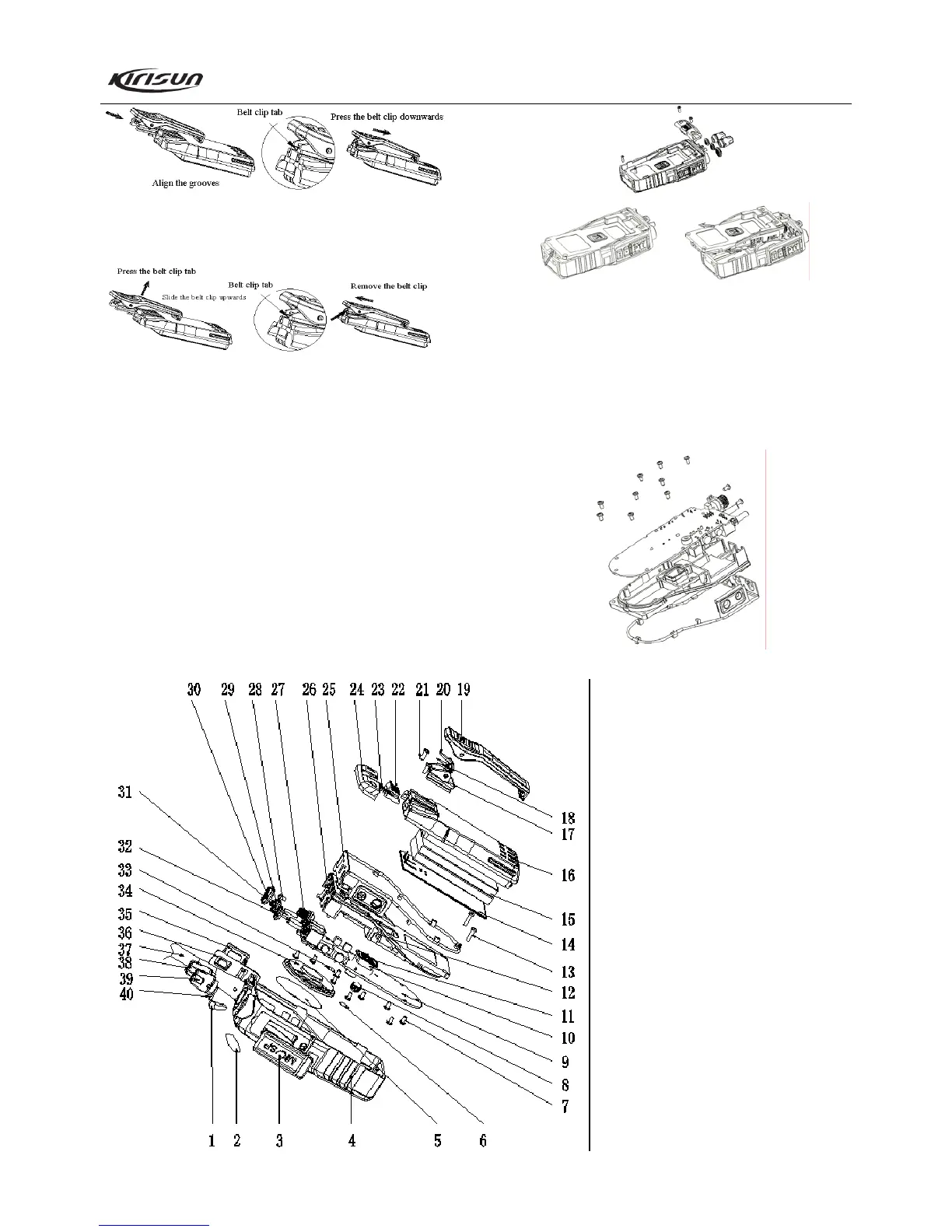

PT3600 Service Manual
10
To remove the belt clip, use your fingernail or a tool to press
the belt clip tab away from the battery. Then slide the belt clip
upwards to remove it.
5.5 Removing the chassis from the front casing
1. Pull out the volume knob and the channel selector knob;
2. Remove the two nuts for knobs and the nut for the antenna
connector;
3. Remove the two torx head fixing screws for the top cover;
4. Remove the two torx head fixing screws at the lower part of the
Al alloy chassis;
5. Insert a flat-blade screwdriver into the slot at the bottom of the
Al alloy chassis, and prize it up.
6. Pull the Al alloy chassis backwards to remove it from the front
casing.
5.6 Removing the mainboard from the Al alloy chassis
1. Remove the screws on the PCB;
2. Remove the main waterproof for the Al alloy chassis;
3. Remove the solder of the antenna connector with a soldering
iron, and remove the mainboard;
4. Remove the two screws fixing the antenna connector, and
remove the connector.
5.7 Exploded View
