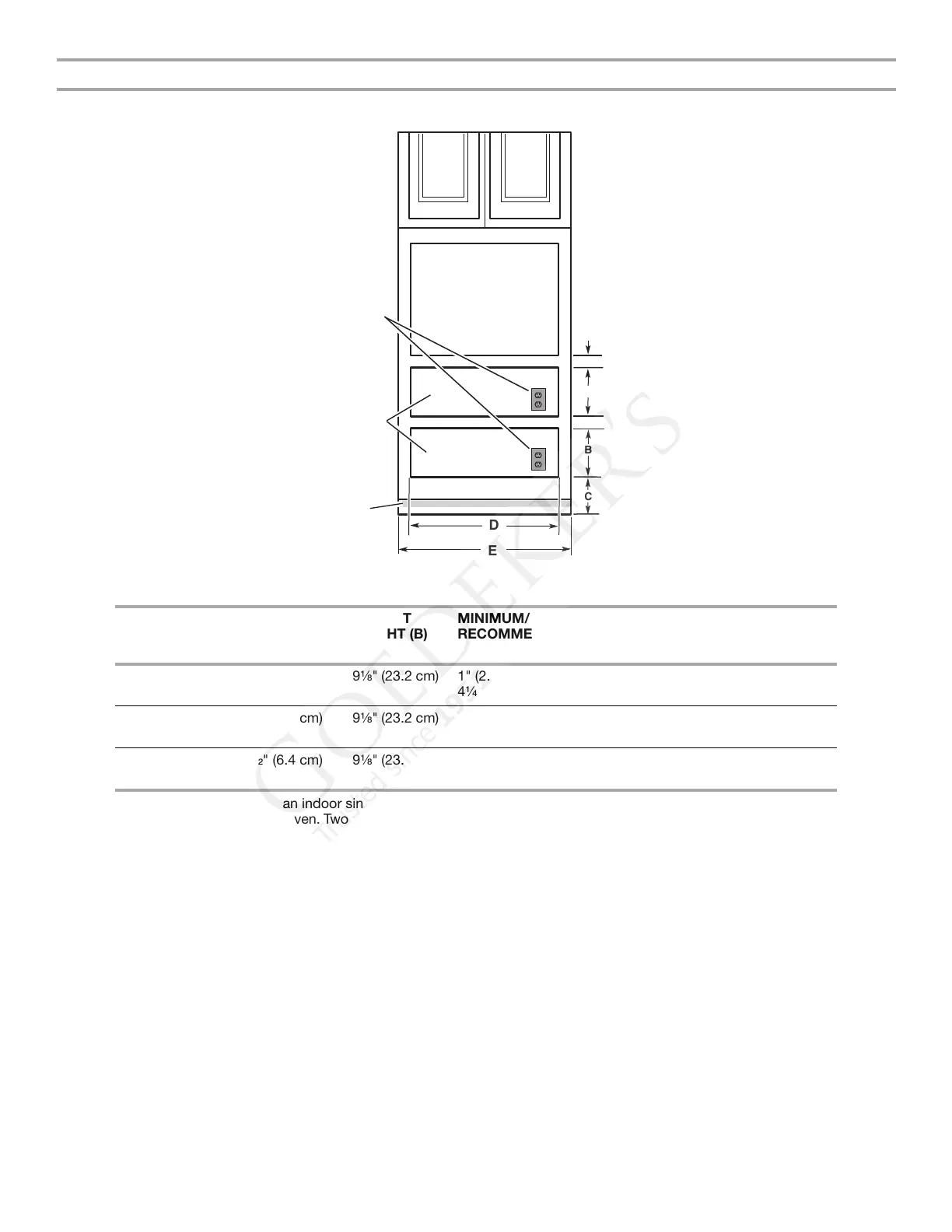

Clearance Dimensions
Warming drawer can be installed as an indoor single or double
installation or installed under a single oven. Two warming drawers
under a single oven are shown.
NOTE: The warming drawer cannot be leveled after being
installed.
For outdoor installation, follow the cutout dimensions above.
Install the outdoor warming drawer in a permanent fixture.
Custom Wood Drawer Front
If you plan to install a custom wood panel to match your
cabinets, we recommend consulting a qualified cabinetmaker or
carpenter. The back of the wood panel must be sealed to avoid
moisture damage.
E
D
Toe
kick
Warming
drawer
cutouts
120 volt
grounded
outlet
(or located
in adjacent
cabinet)
A
A
B
B
C
Front view
WARMING
DRAWER SIZE
MINIMUM
BETWEEN
CUTOUTS (A)
CUTOUT
HEIGHT (B)
MINIMUM/
RECOMMENDED (C)
CUTOUT
WIDTH (D)
MINIMUM
CABINET
WIDTH (E)
24" (61 cm) 2¹⁄₂" (6.4 cm) 9¹⁄₈" (23.2 cm) 1" (2.5 cm)/
4¹⁄₄" (10.8 cm)
22¹⁄₂" (57.1 cm) 24" (61 cm)
27" (68.6 cm) 2¹⁄₂" (6.4 cm) 9¹⁄₈" (23.2 cm) 1" (2.5 cm)/
4¹⁄₄" (10.8 cm)
25¹⁄₂" (64.8 cm) 27" (68.6 cm)
30" (76.2 cm) 2¹⁄₂" (6.4 cm) 9¹⁄₈" (23.2 cm) 1" (2.5 cm)/
4¹⁄₄" (10.8 cm)
28¹⁄₂" (72.4 cm) 30" (76.2 cm)
