Recessed Inset Installation Dimensions
1. Measure the distance from point A (as shown) to back wall.
2. Rout the front edge of the support board or attach a ¹⁄₄"
(6.35 mm) board to hold the panel in the cabinet side trim.
Overlay Series Custom Side Panels
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed and the end of a cabinet run. You
may choose an Inset or Recessed Inset panel installation.

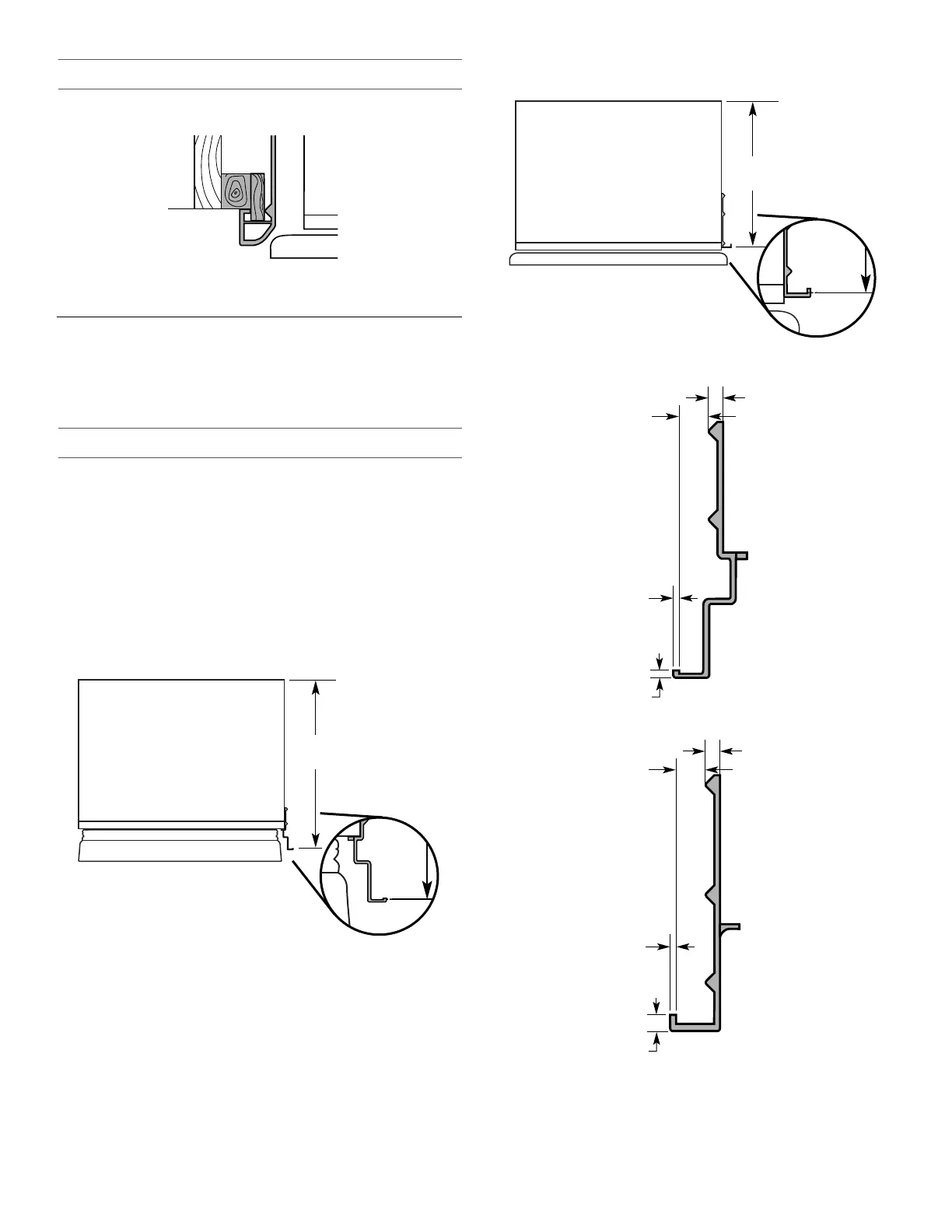

Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
■ The dimensions shown are actual product dimensions
and may not reflect the needed installation dimensions.
■ The side panel should be a minimum of ¹⁄₂" (1.27 cm) thick
to avoid warping.
■ If the opening depth is 25" (63.5 cm) or more, you may
want to install a support board on the rear wall.
Refrigerator (36" [91.4 cm] Models)
Refrigerator (42" [106.7 cm] Models)
Side Trim (36" [91.4 cm] Models)
Side Trim (42" [106.7 cm] Models)
A
23¹¹⁄₁₆"
(60.16 cm)
Overlay
23³⁄₈"
(59.40 cm)
Overlay
³⁄₁₆"
(4.5 mm)
³⁄₈"
(9.7 mm)
¹⁄₁₆"
(1.5 mm)
³⁄₃₂"
(2.38 mm)
³⁄₁₆"
(4.5 mm)
³⁄₈"
(9.7 mm)
¹⁄₁₆"
(1.5 mm)
¹⁄₈"
(3.2 mm)
